Telecentric lenses

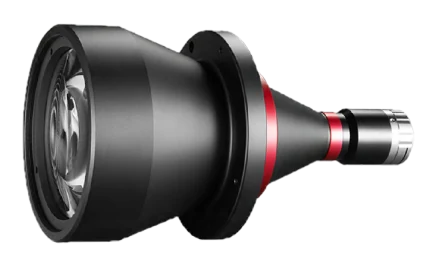

Bi-Telecentric Lens, 0.085x, 372 mm WD, 1.1" (LS-KBT-0085-372)
Model LS-KBT-0085-372
- Magnification0.085
- MountC-mount
- Sensor1.1"
- Working distance372 mm
- ApertureF6.2
$3,679.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 2-3 weeks
0.66 kg shipping weight
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Bi-Telecentric Lens, 0.085x, 372 mm WD, 1.1". High resolution with consistent sharpness across the image Low distortion and high telecentricity for high-precision measurement and positioning
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-KBT-0085-372 |
|---|
Optics
| Magnification | 0.085 |
|---|---|
| Working distance | 372 mm |
| F-number | F6.2 |
| Depth of field | ±60.9 @F11 |
| Distortion | < 0.1% |
| Object-side resolution | 39.5 μm |
| Object-side telecentricity | < 0.1% |
| Image size | 1.1" |
| Coaxial light | Not supported |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -10~50°C |
|---|---|
| Certification | RoHS2.0 |
Mechanical

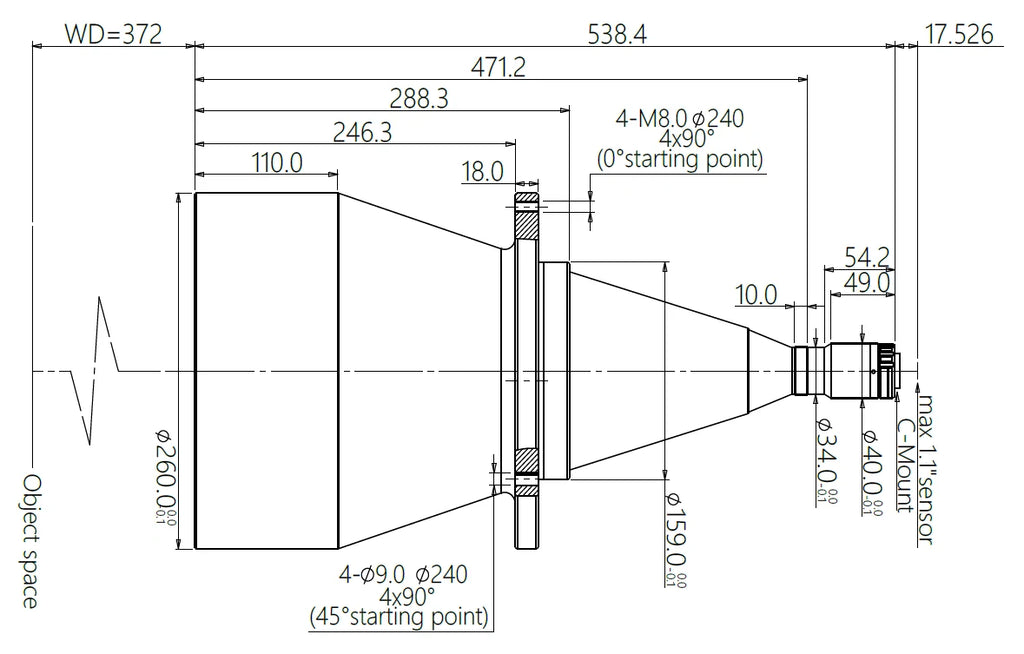

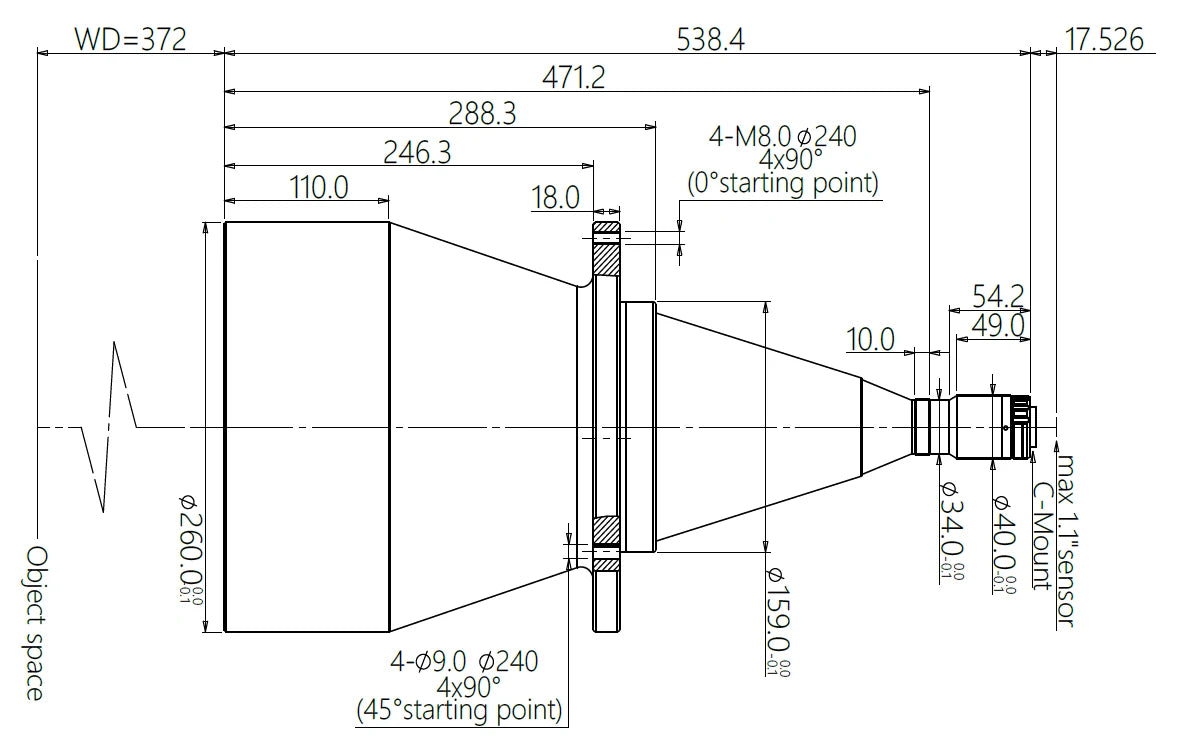

| Dimension | 538.4 mm × Φ260 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
