Machine vision lenses

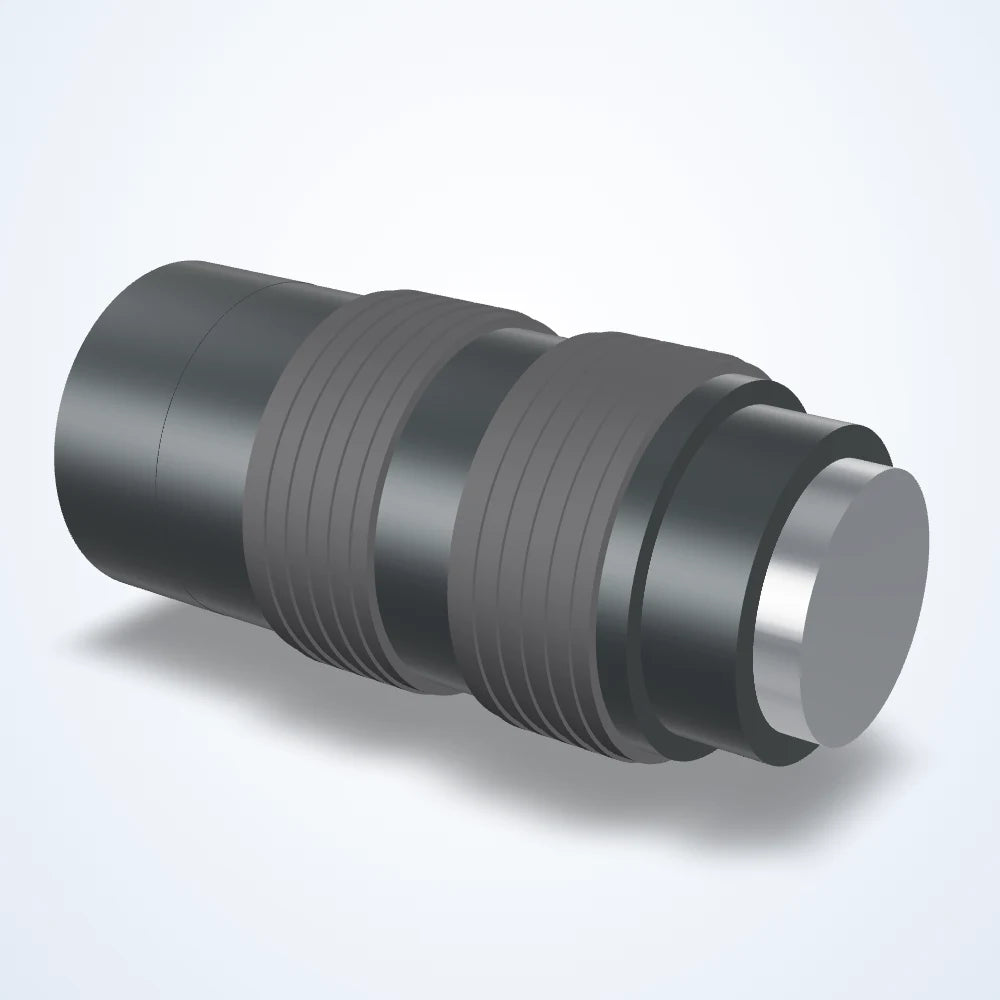

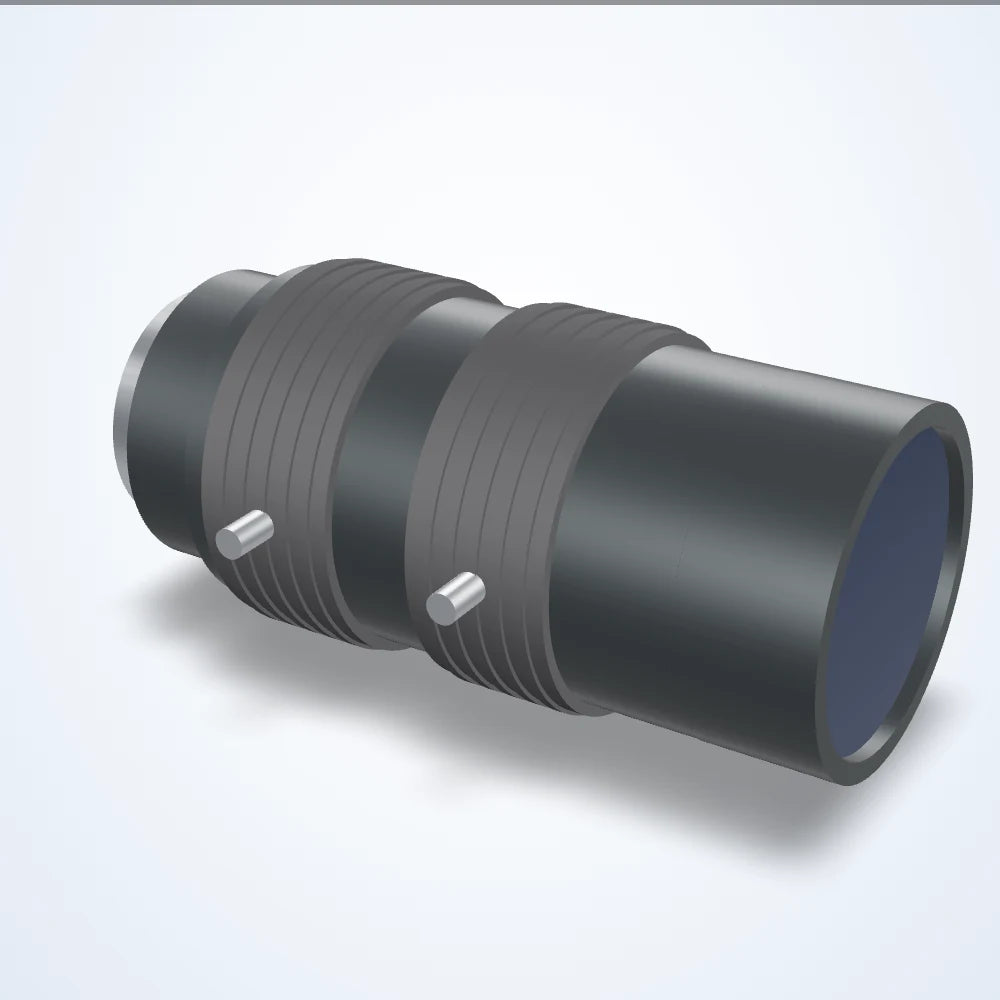

16 mm lens, 1", C-mount, F1.8-16, VIS-SWIR (LS-FFL-0146)
Model LS-FFL-0146
- Focal length16 mm
- Magnification0.138×
- MountC-mount
- Sensor1"
- Aperture1.8-16
- ResolutionCenter 160 lp/mm / Corner 100 lp/mm
$3,509.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0146 |
|---|---|
| Angle of view | 44.2 x 33.6 deg (H x V), 54.2 deg diagonal |
| Angle of view @ 1/1.8″ | 25.4° × 19.1° |
| Angle of view @ 1″ | 44.2° × 33.6° |
| Angle of view @ 2/3″ | 31.0° × 23.3° |
| Entrance pupil position | 18.5 mm from front |
| Exit pupil | -82.8mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 20.6mm / Rear 15.3mm |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.2 |
| Minimum object distance with 1mm ring | 101 mm |
| Minimum object distance with 5mm ring | 26 mm |
| Spectrum | VIS-SWIR |
| Thumb screw | M2 |
Optics
| Focal length | 16 mm |
|---|---|
| Aperture (F) | 1.8-16 |
| Distortion | -0.81% (TV) |
| Back focus | 15.0mm in air |
| Field of view at mod (1") | V 129mm, H 174mm, D 220mm |
| Filter thread | M30.5x0.5 |
| Focus control | Manual |
| Focus range | 0.2 m - ∞ |
| Image circle | 16 mm |
| Image size dimensions | 12.8 mm x 9.6 mm |
| Iris control | Manual |
| Magnification with 1mm ring | 0.138× |
| Magnification with 5mm ring | 0.389× |
Sensor and imaging
| Max. sensor format | 1" |
|---|---|
| Resolution center/corner | Center 160 lp/mm / Corner 100 lp/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |
Mechanical
| Mount | C-mount |
|---|---|

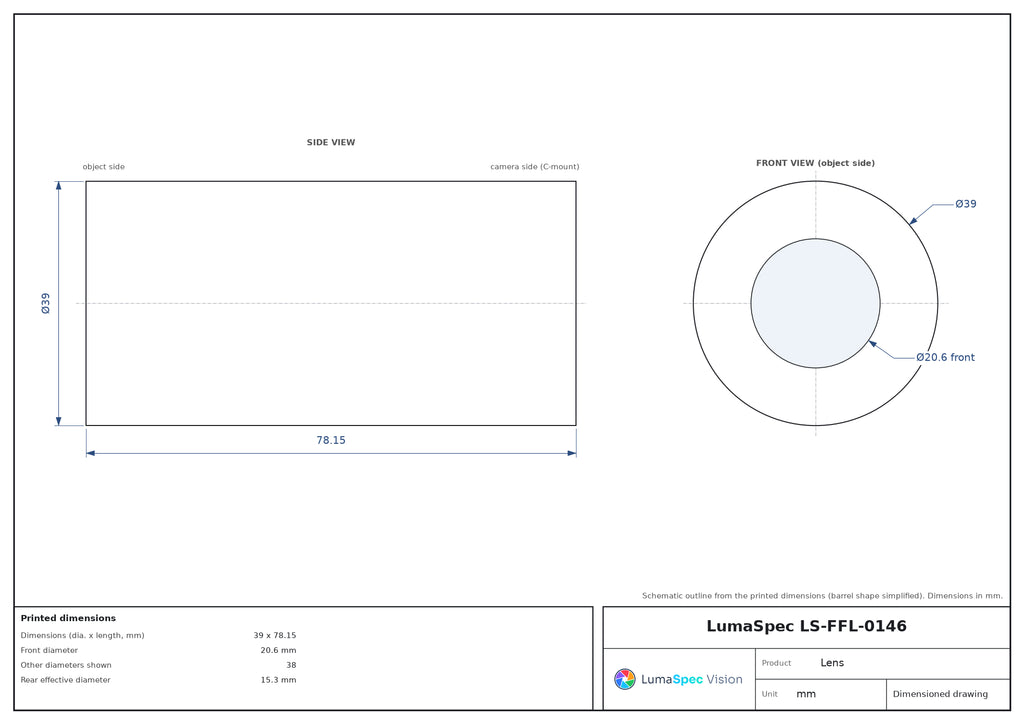

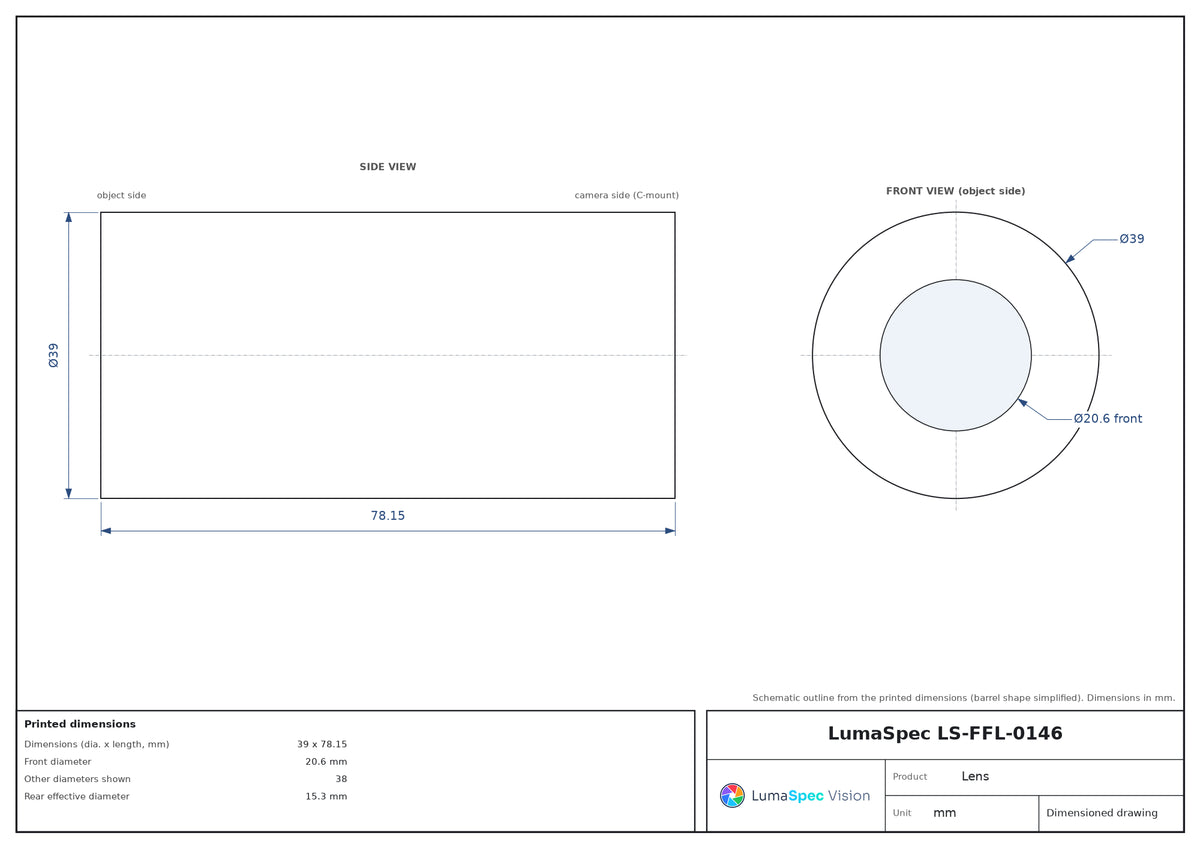

| Dimensions (dia. x length, mm) | 39 x 78.15 |
| Front diameter | 20.6 mm |
| Mount thread | 1-32UN (as printed) |
| Weight as printed | xxxg (placeholder) |
