35 mm lens, 1", C-mount, F1.8-16, SWIR (LS-FFL-0180)

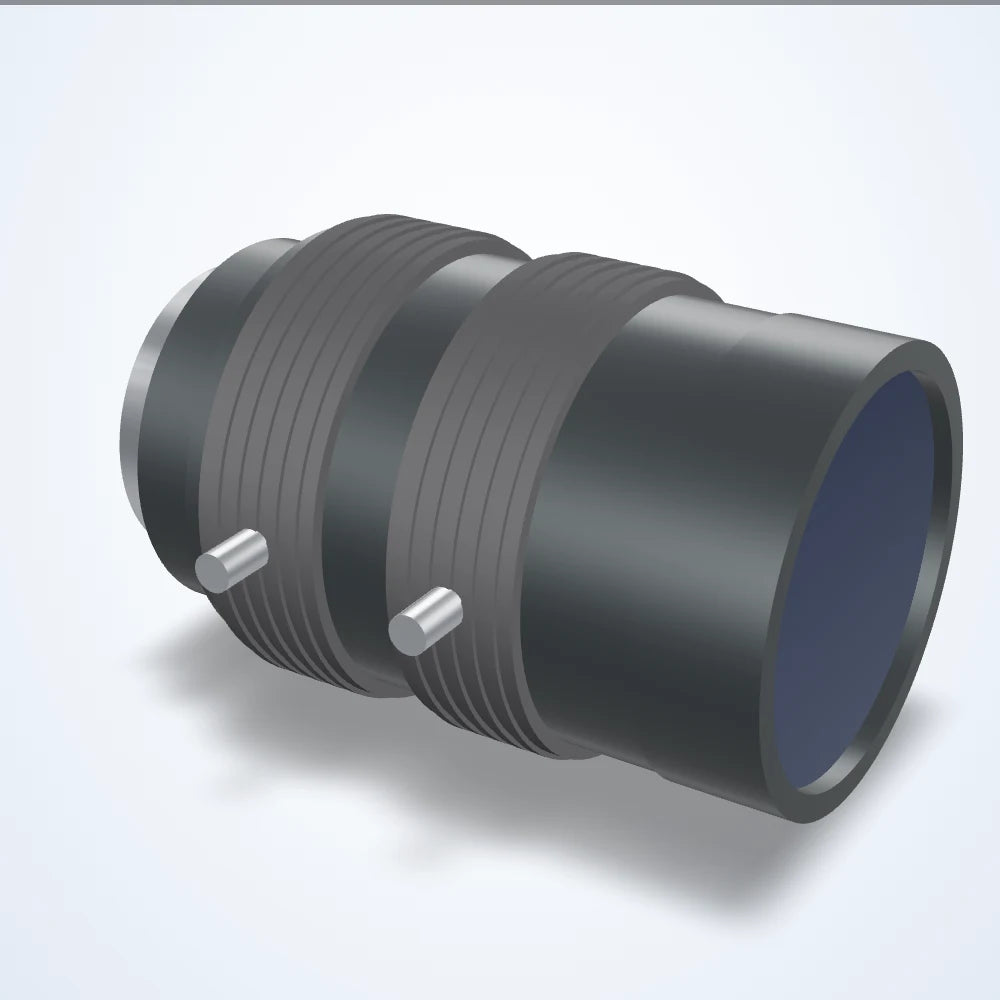

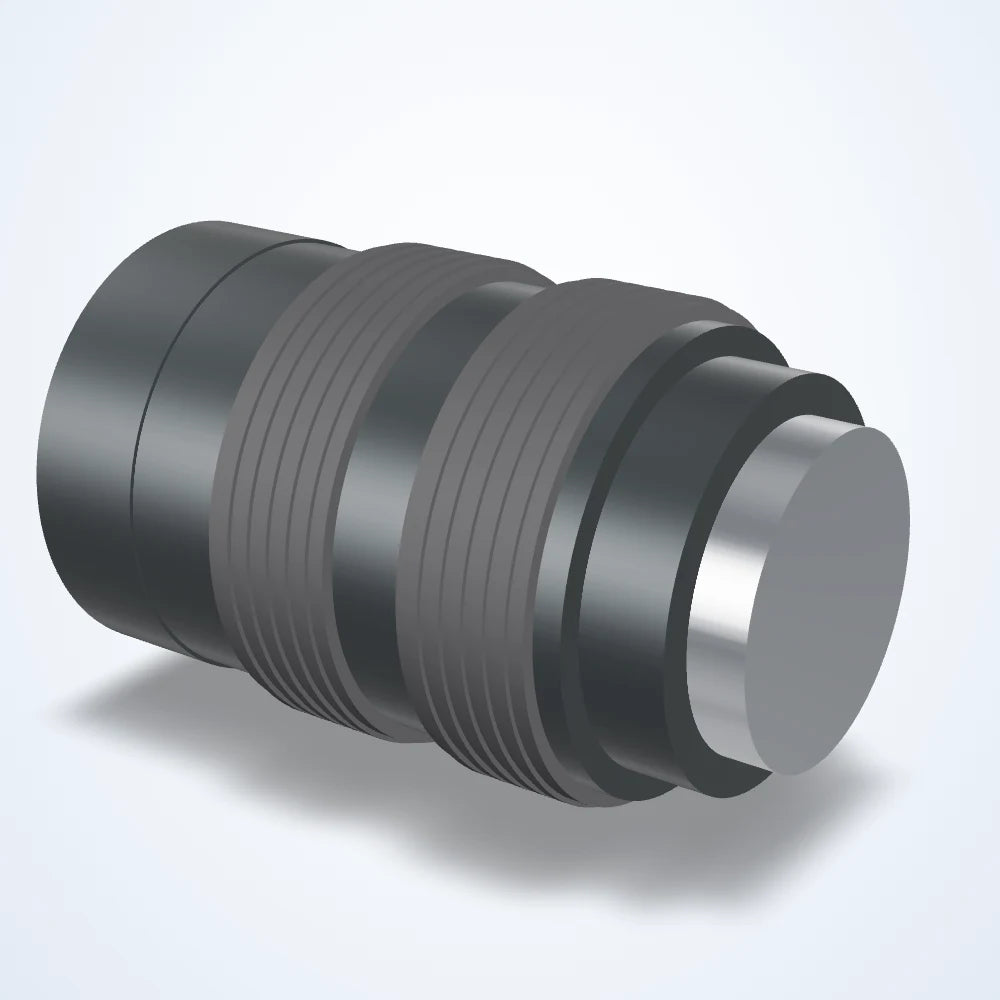

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

35 mm lens, 1", C-mount, F1.8-16, SWIR (LS-FFL-0180)

Model LS-FFL-0180

Focal length35 mm
Magnification0.457×
MountC-mount
Sensor1"
Aperture1.8-16
ResolutionCenter 160lp/mm, corner 100lp/mm

$3,509.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Quantity

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Machine vision lens for industrial cameras.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-0180
Angle of view	H 20.4 x V 15.4 deg (D 25.6 deg)
Angle of view @ 1/1.8″	11.5° × 8.6°
Angle of view @ 1″	20.4° × 15.4°
Angle of view @ 2/3″	14.0° × 10.6°
Entrance pupil position	28.1 (E.P.)
Exit pupil	-45.2mm
Flange back	17.526mm in air
Front / rear effective dia.	Front 26.7mm / Rear 14.3mm
Lens type	Fixed Focal Length
Minimum object distance (m)	0.2
Minimum object distance with 10mm ring	81 mm
Minimum object distance with 1mm ring	173 mm
Minimum object distance with 20mm ring	51 mm
Minimum object distance with 5mm ring	115 mm
Shooting range at mod	68.0(H)×51.0(V)
Spectrum	SWIR
Thumb screw	M2

Optics

Focal length	35 mm
Aperture (F)	1.8-16
Distortion	-0.41% (TV)
Back focus	16.4mm in air
Filter thread	M34x0.5
Focus control	Manual
Focus range	0.2 m - ∞
Image circle	16 mm
Image size dimensions	12.8 mm x 9.6 mm
Iris control	Manual
Magnification with 10mm ring	0.457×
Magnification with 1mm ring	0.216×
Magnification with 20mm ring	0.722×
Magnification with 5mm ring	0.323×
TV distortion (%)	-0.37

Sensor and imaging

Max. sensor format	1"
Resolution center/corner	Center 160lp/mm, corner 100lp/mm

Environment and compliance

Operating temperature range	-10 to +50 °C
Storage temperature range	-20~+60 C

Mechanical

Mount	C-mount

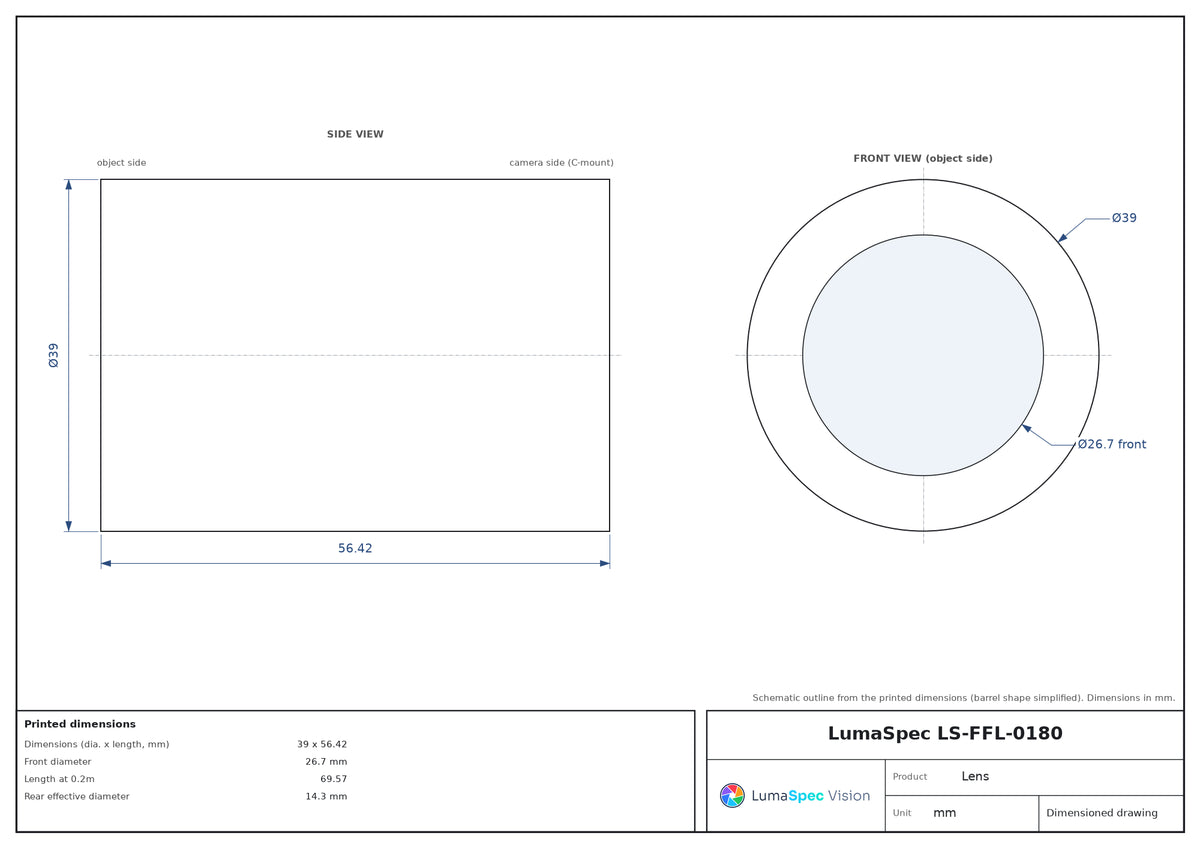

Dimensions (dia. x length, mm)	39 x 56.42
Front diameter	26.7 mm
Length at 0.2m	69.57
Picture size (largest format)	9.6x12.8mm
Weight (g)	170
