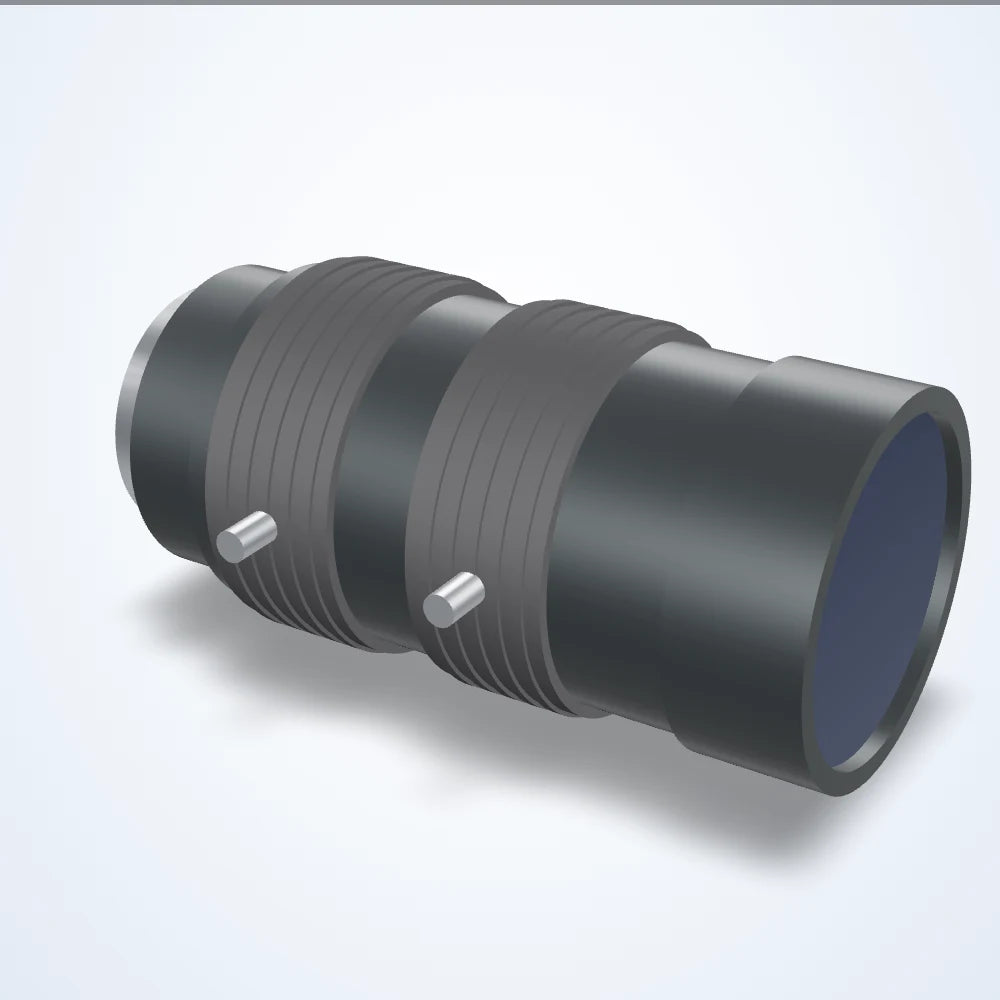

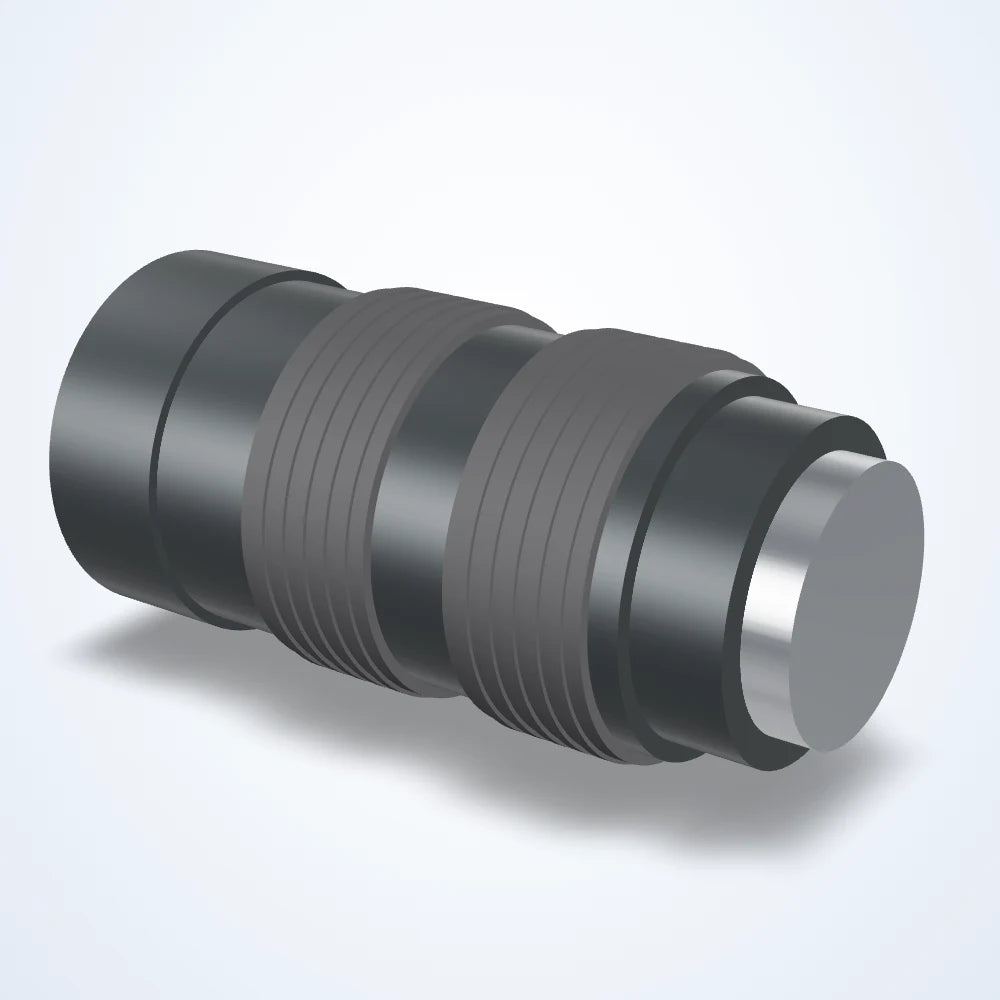

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
12 mm lens, 1", C-mount, VIS-SWIR (LS-FFL-0132)
Model LS-FFL-0132
- Focal length12 mm
- Magnification0.139×
- MountC-mount
- Sensor1"
- Aperture1.8-16
- ResolutionCenter 160 lp/mm / Corner 100 lp/mm
$3,509.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0132 |
|---|---|
| Angle of view | 58.0 x 44.5 deg (H x V), 70.1 deg diagonal |
| Angle of view @ 1/1.8″ | 33.8° × 25.5° |
| Angle of view @ 1″ | 58.0° × 44.5° |
| Angle of view @ 2/3″ | 41.0° × 31.1° |
| Exit pupil | -46.6mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 23.2mm / Rear 14.7mm |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.2 |
| Minimum object distance with 1mm ring | 73 mm |
| Minimum object distance with 5mm ring | 12 mm |
| Spectrum | VIS-SWIR |
| Thumb screw | M2 |
Optics
| Focal length | 12 mm |
|---|---|
| Aperture (F) | 1.8-16 |
| Distortion | -1.6% (TV) |
| Back focus | 11.1mm in air |
| Field of view at mod (1") | V 175mm, H 237mm, D 300mm |
| Filter thread | M34x0.5 |
| Focus control | Manual |
| Focus range | 0.2 m - ∞ |
| Image circle | 16 mm |
| Image size dimensions | 12.8 mm x 9.6 mm |
| Iris control | Manual |
| Magnification with 1mm ring | 0.139× |
| Magnification with 5mm ring | 0.485× |
Sensor and imaging
| Max. sensor format | 1" |
|---|---|
| Resolution center/corner | Center 160 lp/mm / Corner 100 lp/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |
Mechanical
| Mount | C-mount |
|---|---|

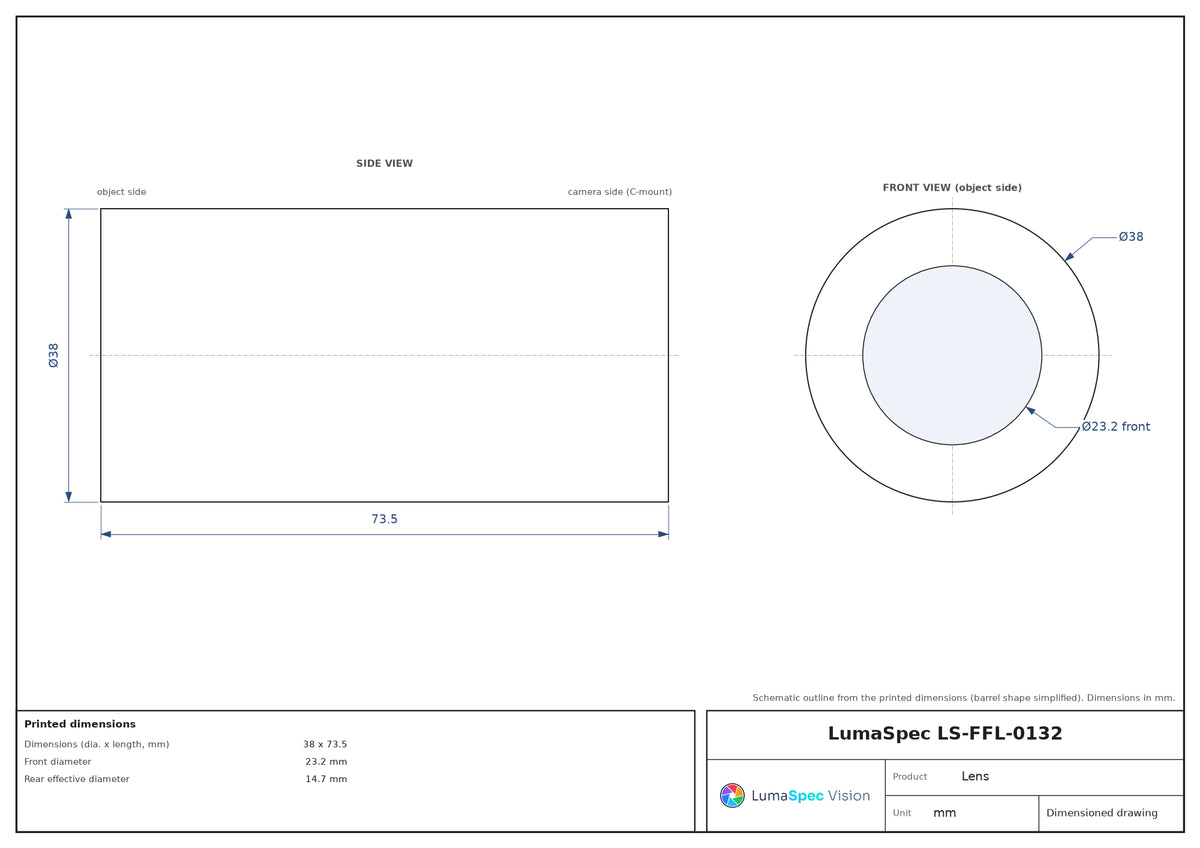

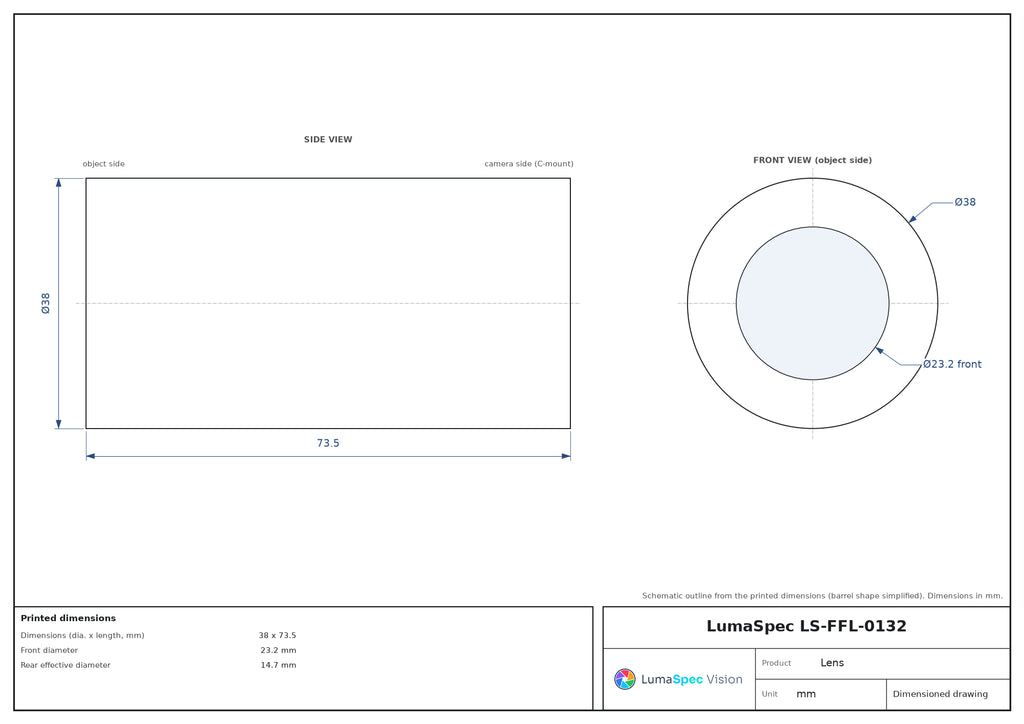

| Dimensions (dia. x length, mm) | 38 x 73.5 |
| Front diameter | 23.2 mm |
| Mount thread | 1-32UNF |
| Weight (g) | 175 |
