Machine vision lenses

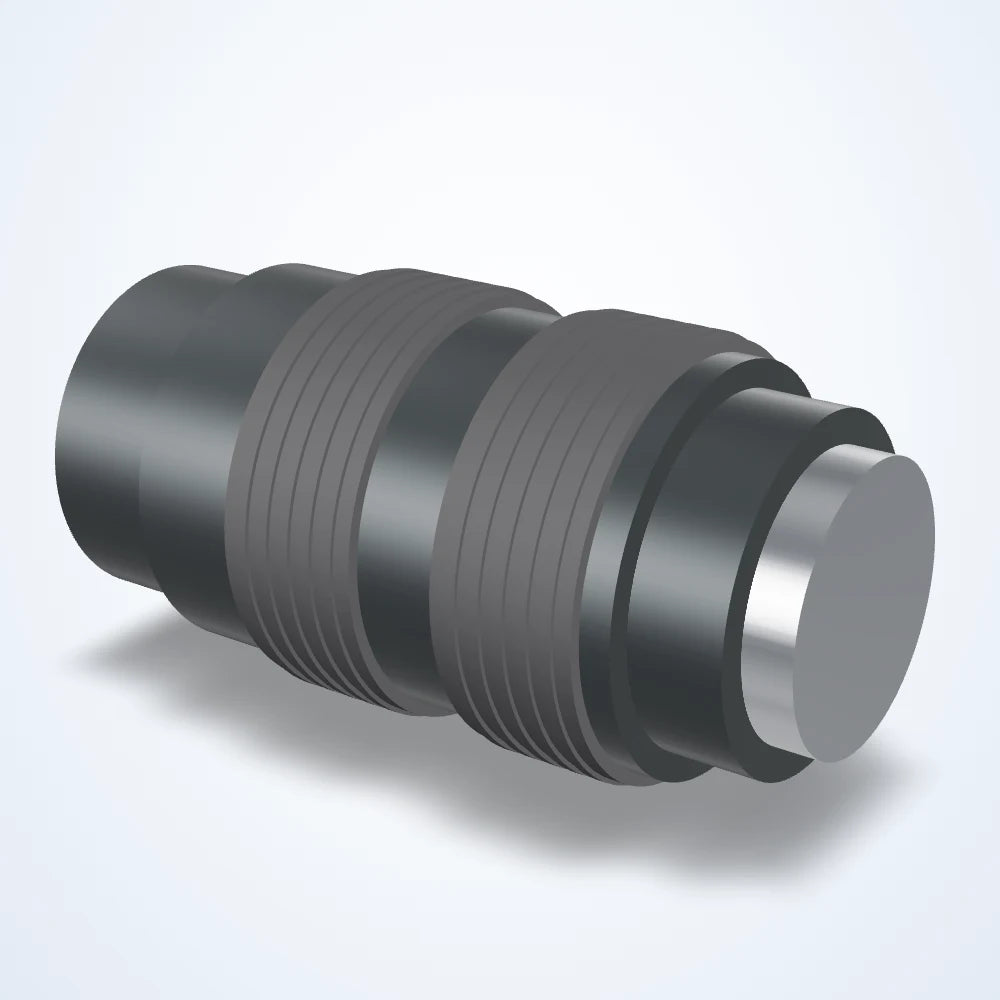

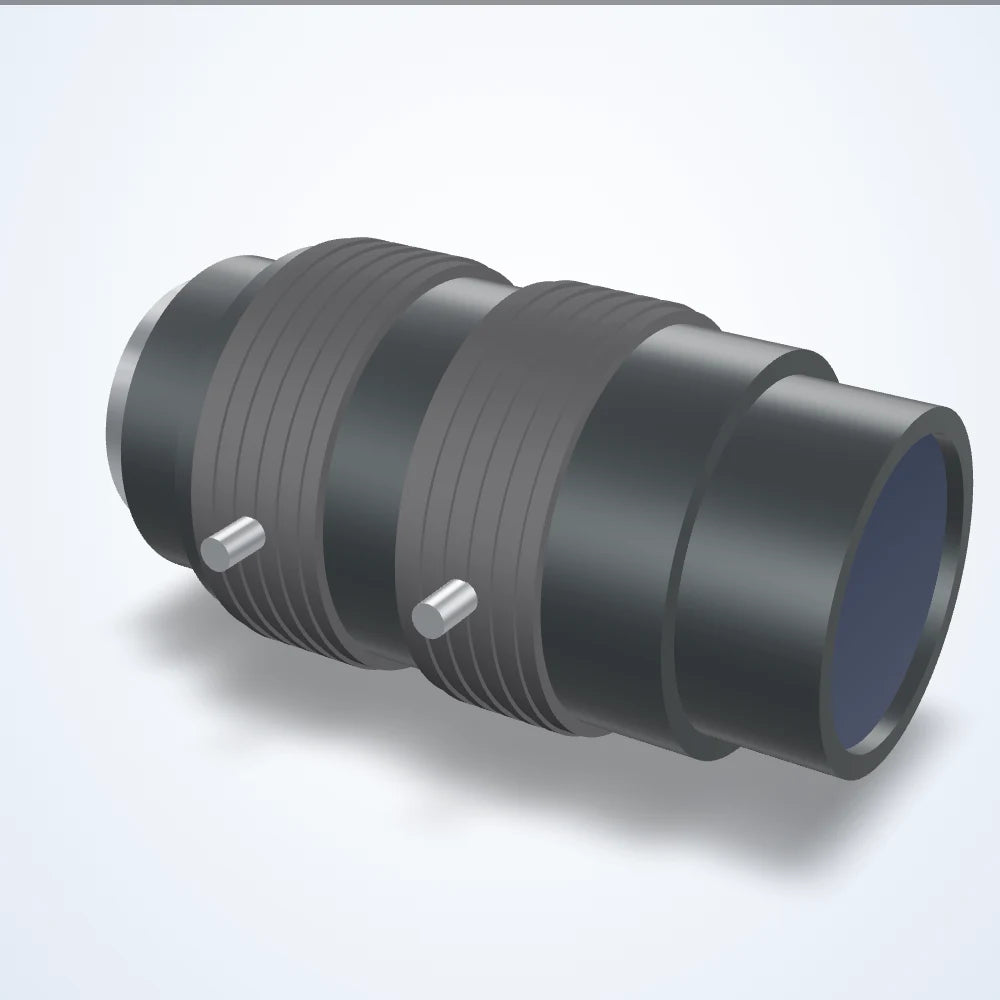

50 mm lens, 1", C-mount, F2.5-16, SWIR (LS-FFL-0202)
Model LS-FFL-0202
- Focal length50 mm
- Magnification0.301×
- MountC-mount
- Sensor1"
- Aperture2.5-16
- ResolutionCenter 160lp/mm, corner 100lp/mm
$3,509.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0202 |
|---|---|
| Angle of view | H 14.6 x V 11.0 deg (D 18.2 deg) |
| Angle of view @ 1/1.8″ | 8.2° × 6.2° |
| Angle of view @ 1″ | 14.6° × 11.0° |
| Angle of view @ 2/3″ | 10.0° × 7.6° |
| Exit pupil | -115.2mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 23.1mm / Rear 17.7mm |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.5 |
| Minimum object distance with 10mm ring | 168 mm |
| Minimum object distance with 1mm ring | 418 mm |
| Minimum object distance with 20mm ring | 102 mm |
| Minimum object distance with 5mm ring | 252 mm |
| Shooting range at mod | 127.0(H)×95.0(V) |
| Spectrum | SWIR |
| Thumb screw | M2 |
Optics
| Focal length | 50 mm |
|---|---|
| Aperture (F) | 2.5-16 |
| Distortion | -0.11% (TV) |
| Back focus | 34.9mm in air |
| Filter thread | M30.5x0.5 |
| Focus control | Manual |
| Focus range | 0.5 m - ∞ |
| Image circle | 16 mm |
| Image size dimensions | 12.8 mm x 9.6 mm |
| Iris control | Manual |
| Magnification with 10mm ring | 0.301× |
| Magnification with 1mm ring | 0.121× |
| Magnification with 20mm ring | 0.497× |
| Magnification with 5mm ring | 0.2× |
Sensor and imaging
| Max. sensor format | 1" |
|---|---|
| Resolution center/corner | Center 160lp/mm, corner 100lp/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |
Mechanical
| Mount | C-mount |
|---|---|

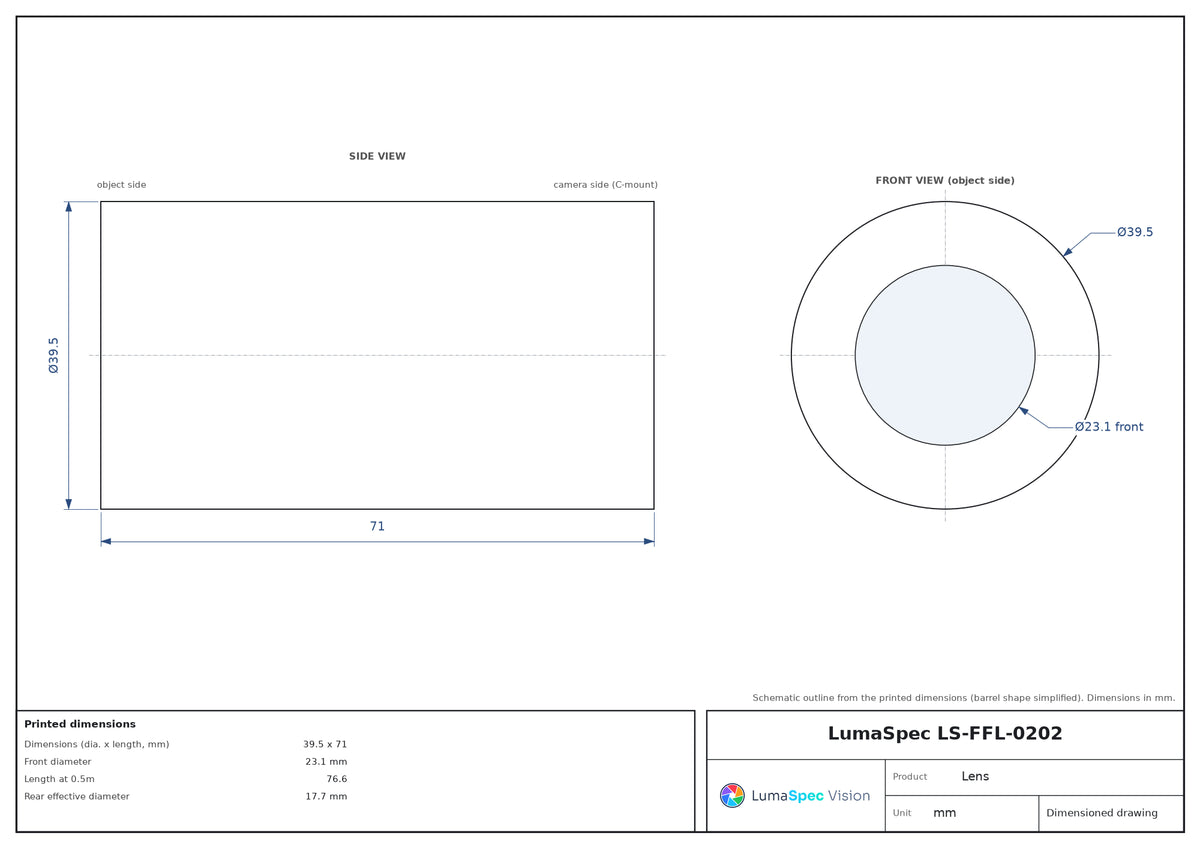

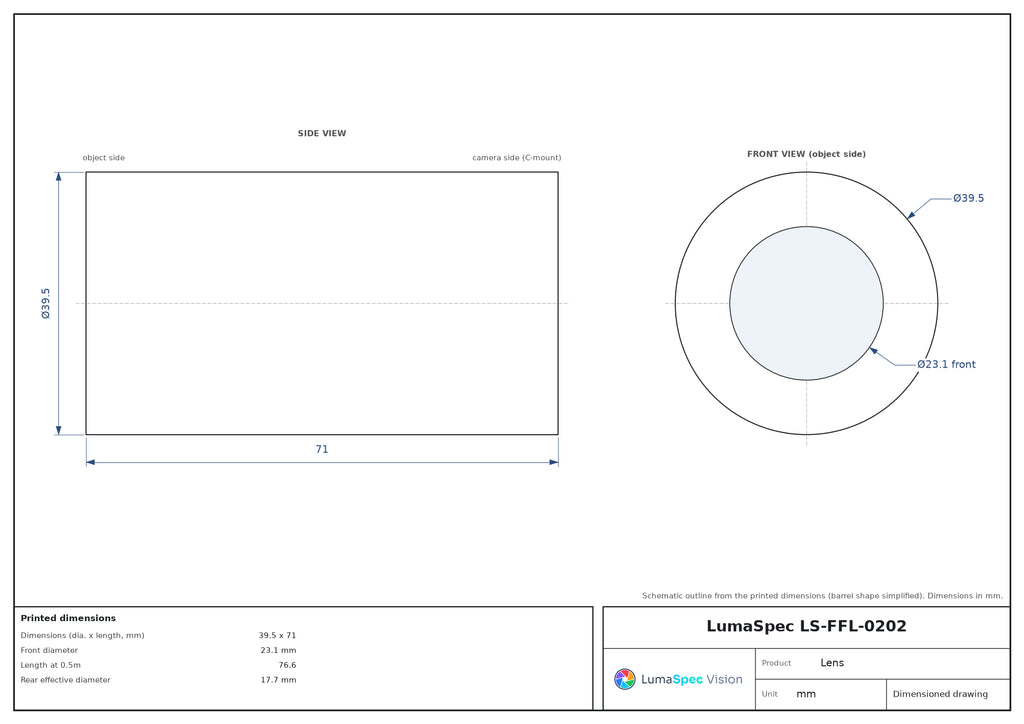

| Dimensions (dia. x length, mm) | 39.5 x 71 |
| Front diameter | 23.1 mm |
| Length at 0.5m | 76.6 |
| Picture size (largest format) | 9.6x12.8mm |
| Weight (g) | 155 |
