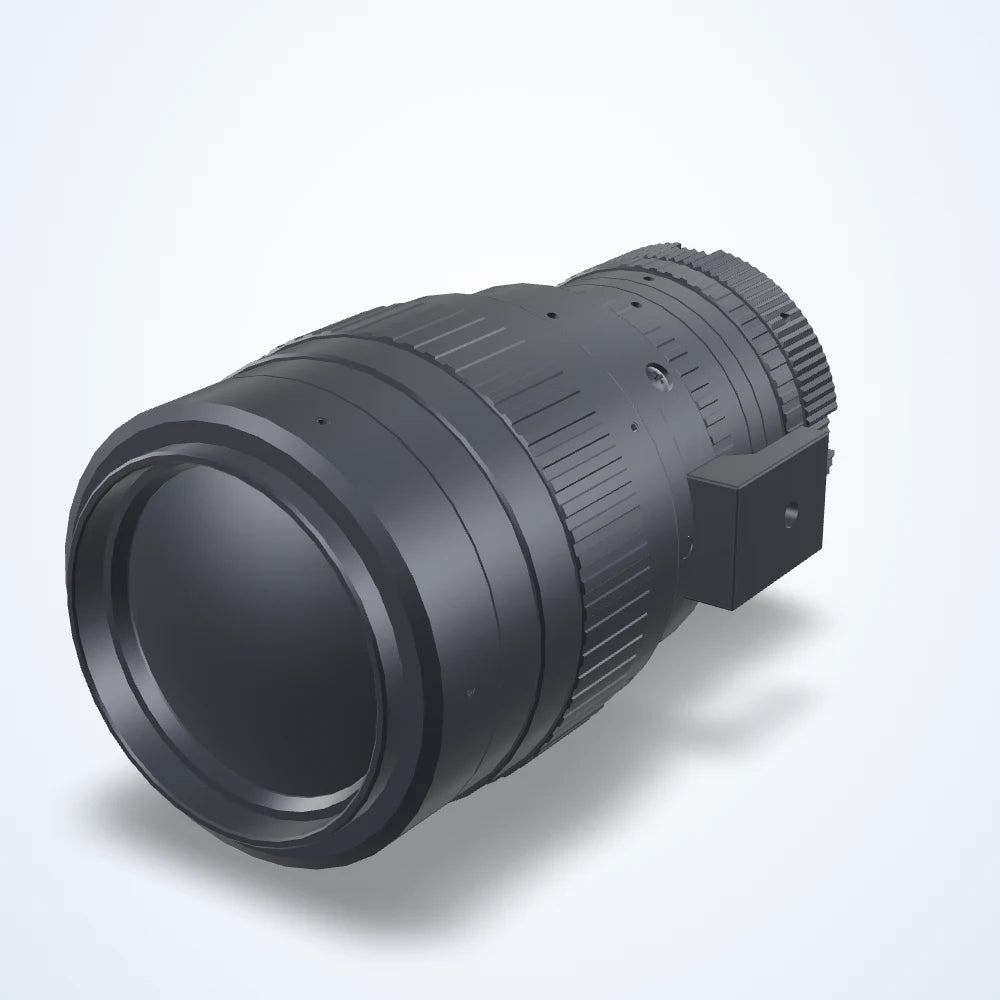

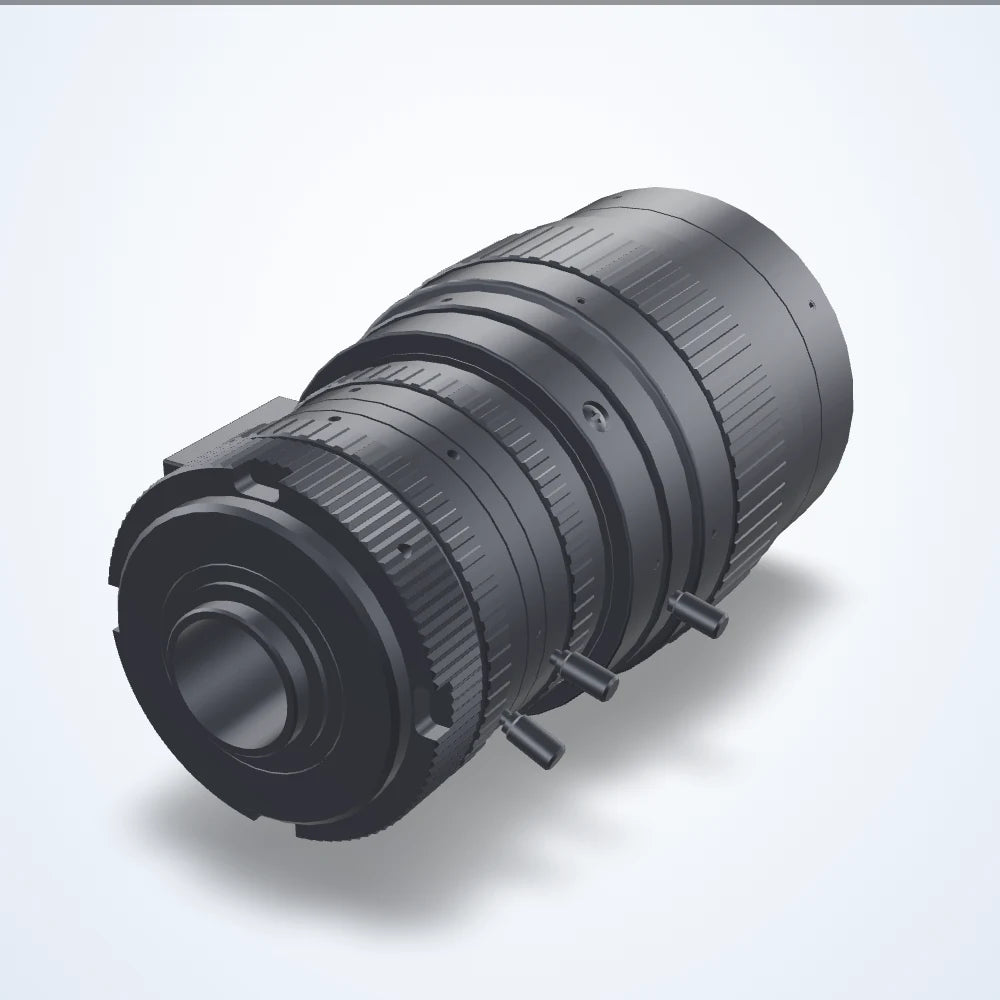

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
0.07 - 0.5× lens, 1.1", C-mount (LS-FFL-0070)
Model LS-FFL-0070
- Magnification0.07 - 0.5×
- MountC-mount
- Sensor1.1"
- Aperturef/4.3
- Resolution5
$2,109.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Minimum object distance 182 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0070 |
|---|---|
| Minimum object distance | 182 mm |
| Lens type | Macro |
| Spectrum | Visible |
| Zoom control | Manual |
Optics
| Magnification | 0.07 - 0.5× |
|---|---|
| Aperture (max) | f/4.3 |
| Back focal length | 39.53 mm |
| Filter thread | M72-0.75 |
| Focus control | Manual |
| Focus range | 182 m - 577.2 m |
| Iris control | Manual |
| TV distortion (%) | 1.7 |
Sensor and imaging
| Sensor format | 1.1" |
|---|---|
| Resolution (MP) | 5 |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|
Mechanical
| Mount | C-mount |
|---|---|

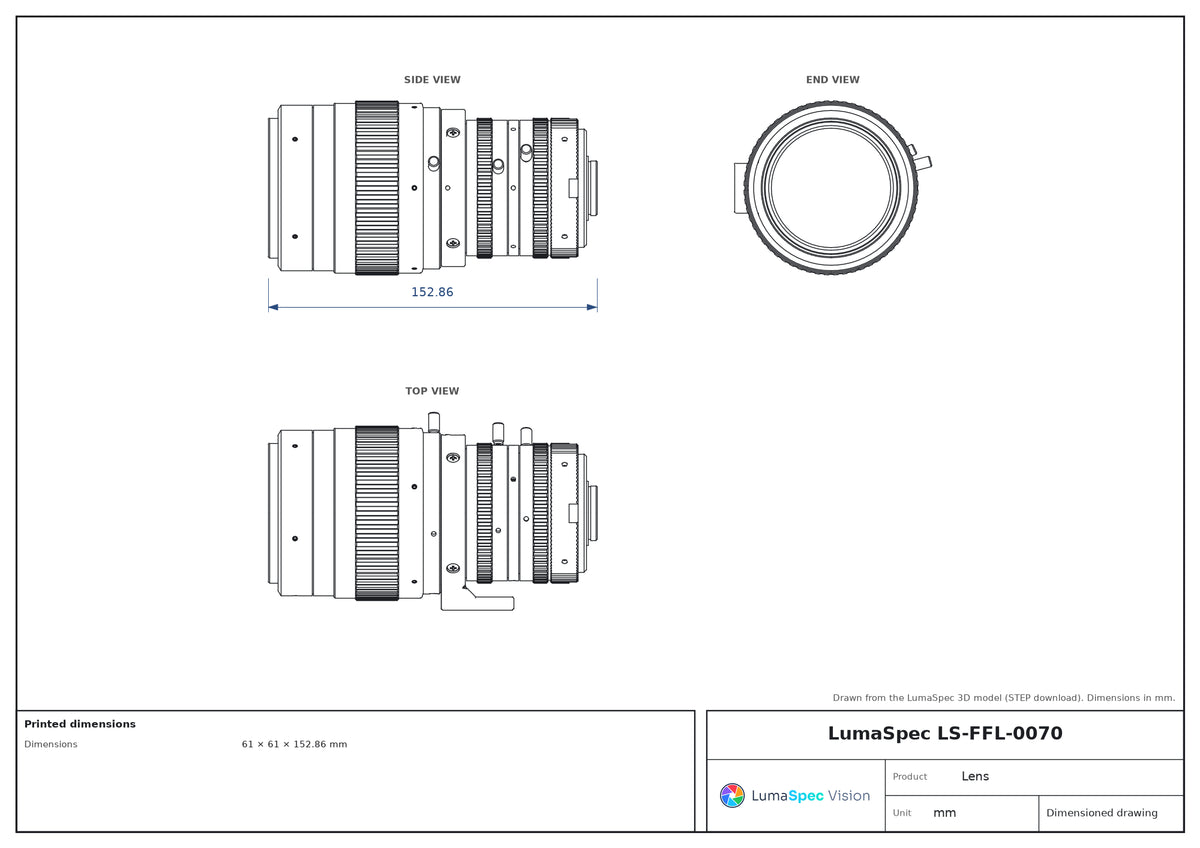

| Dimensions | 61 × 61 × 152.86 mm |
| Weight | 1400 |
