Machine vision lenses

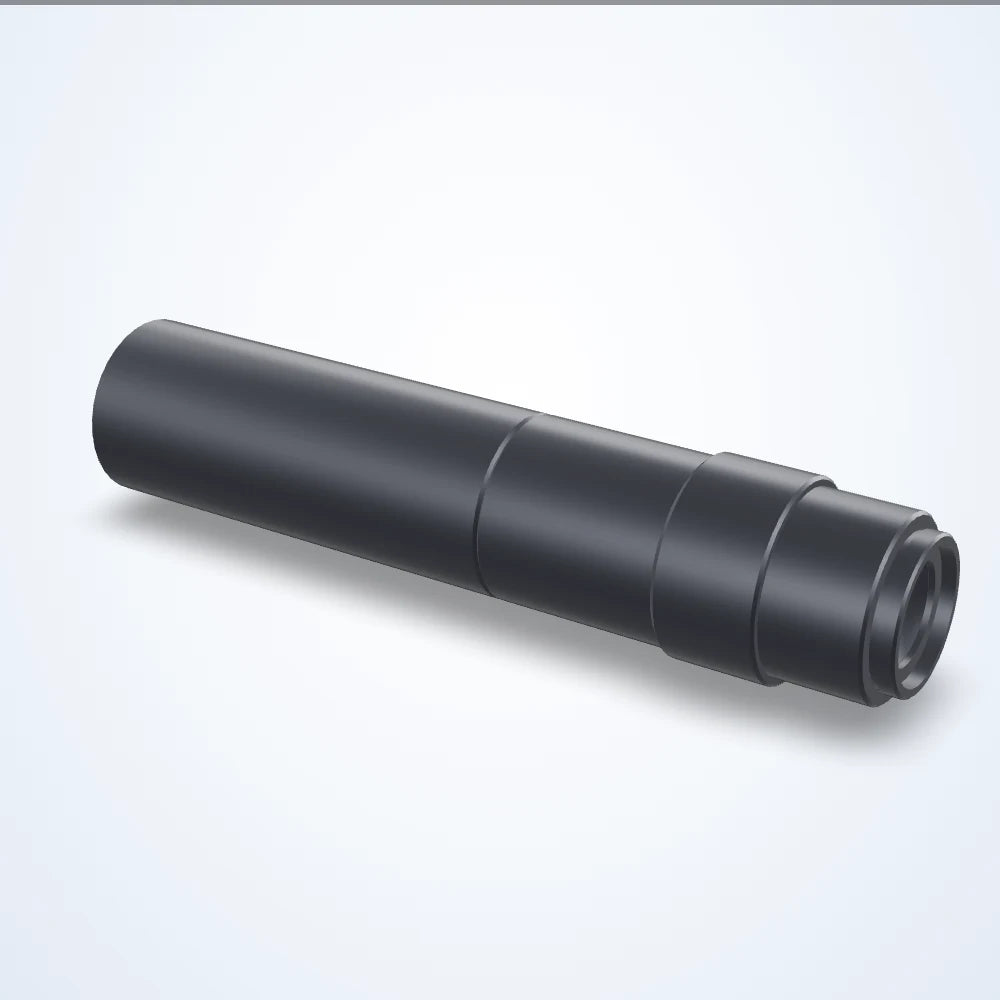

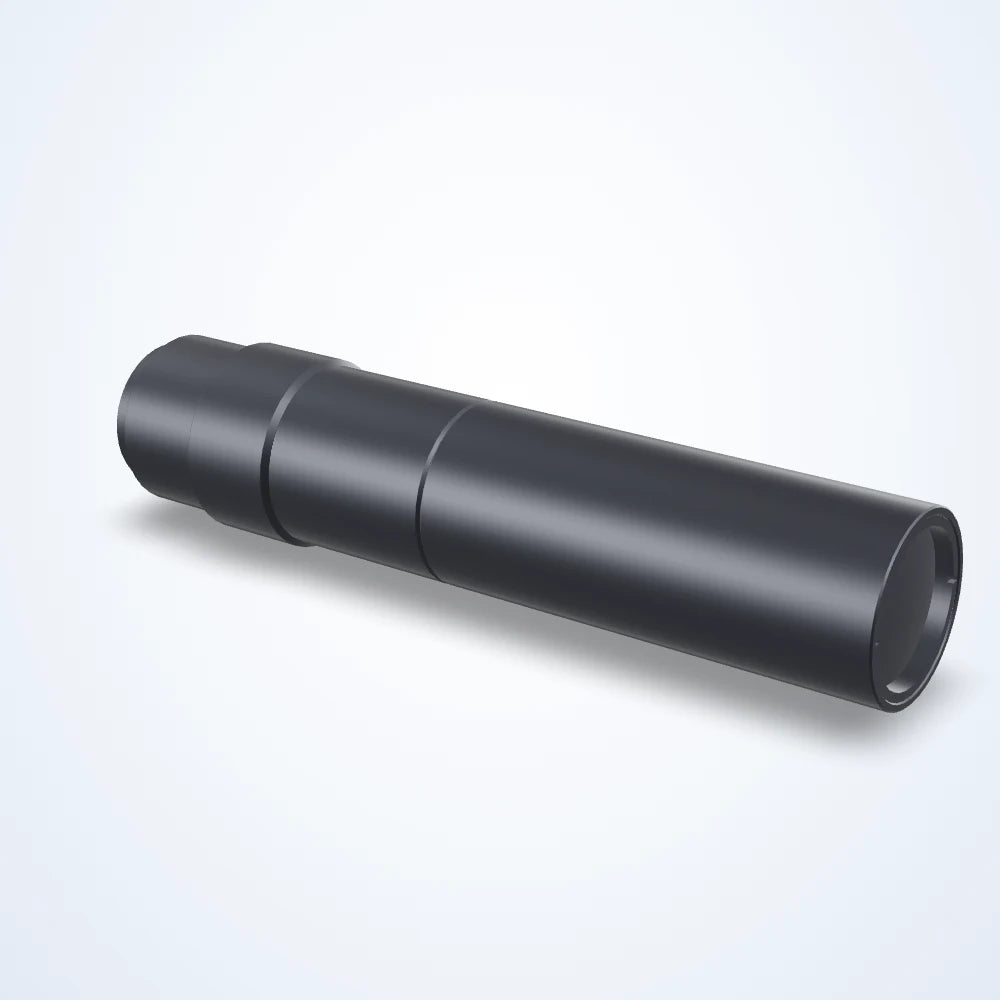

1× lens, 1", C-mount (LS-FFL-0048)
Model LS-FFL-0048
- Magnification1×
- MountC-mount
- Sensor1"
- Resolution5
$829.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Depth of field 0.72 mm; minimum object distance 65.2 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0048 |
|---|---|
| Minimum object distance | 65.2 mm |
| Lens type | Fixed Focal Length |
| Spectrum | Visible |
| Working ƒ/n | f/9 |
| Zoom range | Fixed |
Optics
| Magnification | 1× |
|---|---|
| Depth of field | 0.72 mm |
| Back focal length | 17 mm |
| Filter thread | No Filter Threads |
| Image circle | 16 mm |
| TV distortion (%) | -0.023 |
Sensor and imaging
| Sensor format | 1" |
|---|---|
| Resolution (MP) | 5 |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|
Mechanical
| Mount | C-mount |
|---|---|

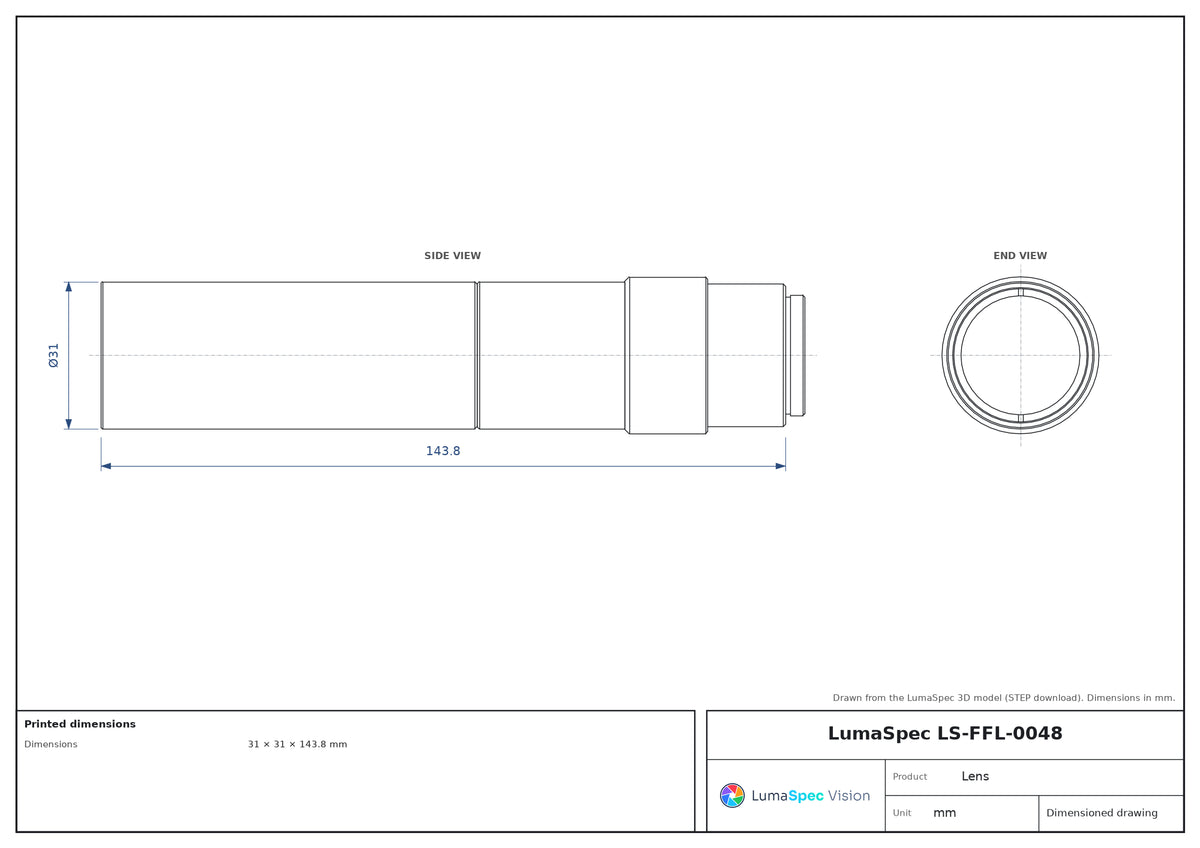

| Dimensions | 31 × 31 × 143.8 mm |
| Weight | 158 |
