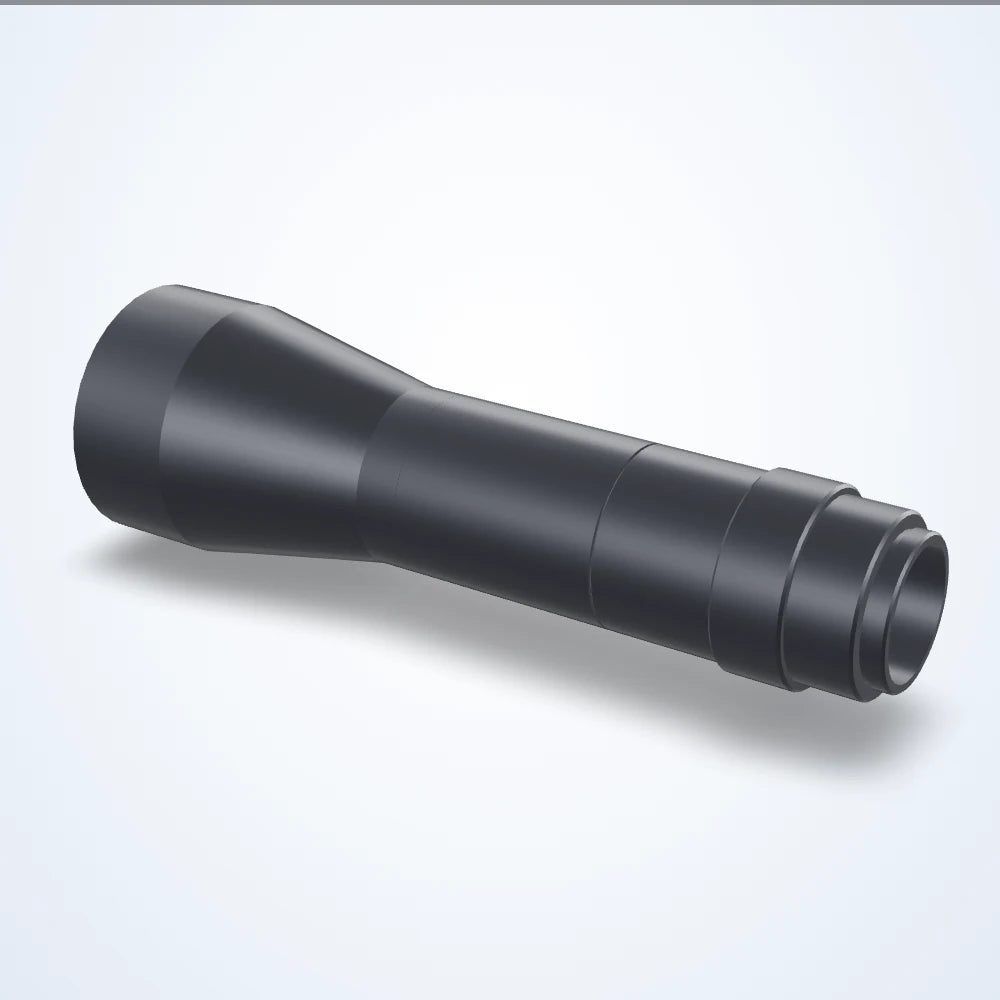

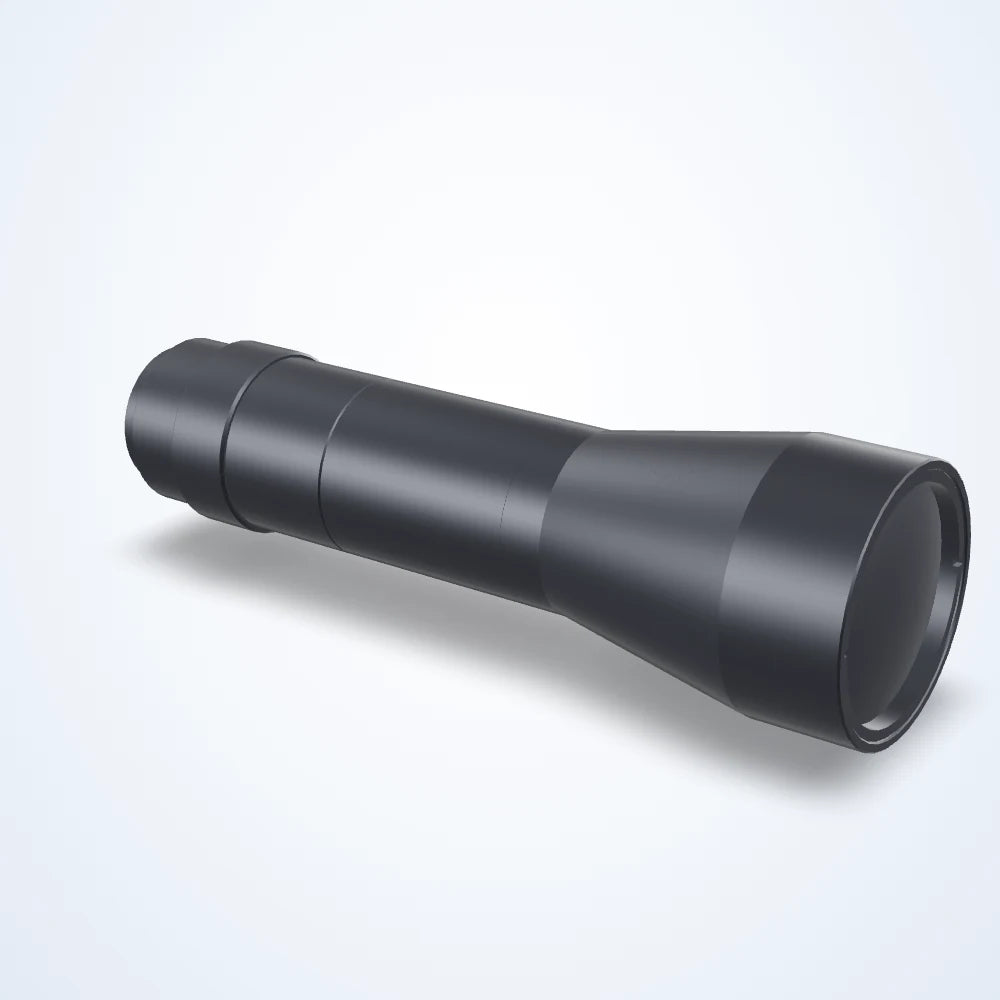

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
0.5× lens, 1", C-mount (LS-FFL-0046)
Model LS-FFL-0046
- Magnification0.5×
- MountC-mount
- Sensor1"
- Resolution5
$849.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Depth of field 2.88 mm; minimum object distance 65.2 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0046 |
|---|---|
| Minimum object distance | 65.2 mm |
| Lens type | Fixed Focal Length |
| Spectrum | Visible |
| Working ƒ/n | f/9 |
| Zoom range | Fixed |
Optics
| Magnification | 0.5× |
|---|---|
| Depth of field | 2.88 mm |
| Back focal length | 17 mm |
| Filter thread | No Filter Threads |
| Image circle | 16 mm |
| TV distortion (%) | -0.014 |
Sensor and imaging
| Sensor format | 1" |
|---|---|
| Resolution (MP) | 5 |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|
Mechanical
| Mount | C-mount |
|---|---|

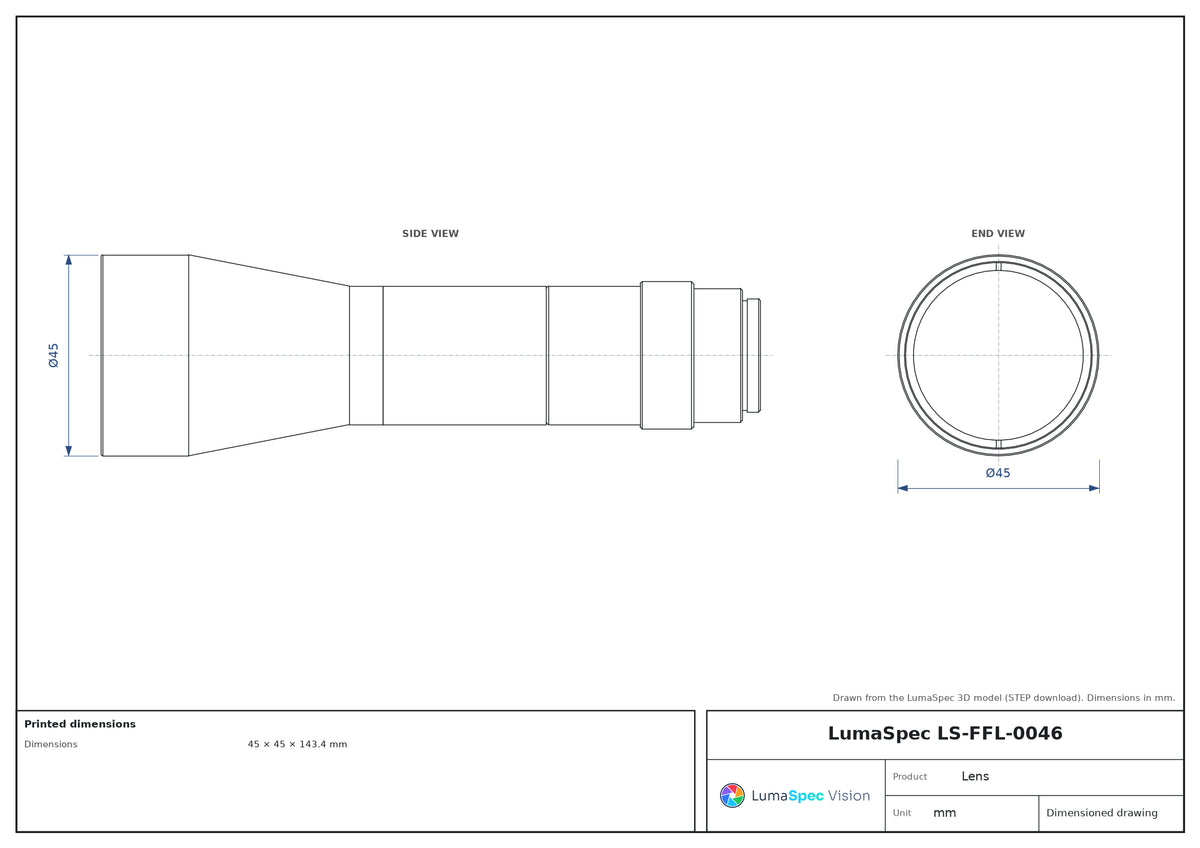

| Dimensions | 45 × 45 × 143.4 mm |
| Weight | 189 |
Other models in the Lens series, C-mount (S05) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0048 | 1× | $829.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0047 | 1× | $909.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0045 | 0.5× | $939.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0044 | 0.345× | $2,089.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0070 | 0.07 - 0.5× | $2,109.00 Quote | Lead time confirmed with your quote | View |
