0.345× lens, 1.1", C-mount (LS-FFL-0044)

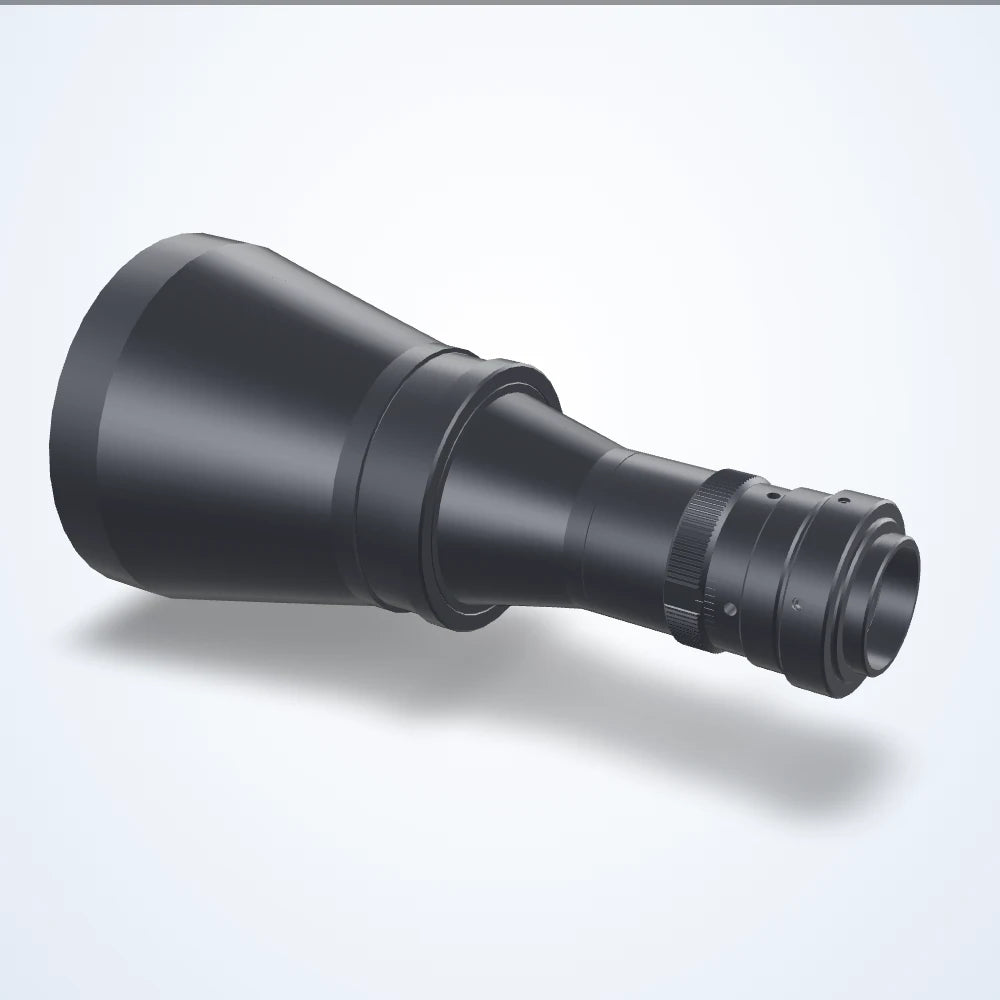

  • 0.345× lens, 1.1", C-mount (LS-FFL-0044)

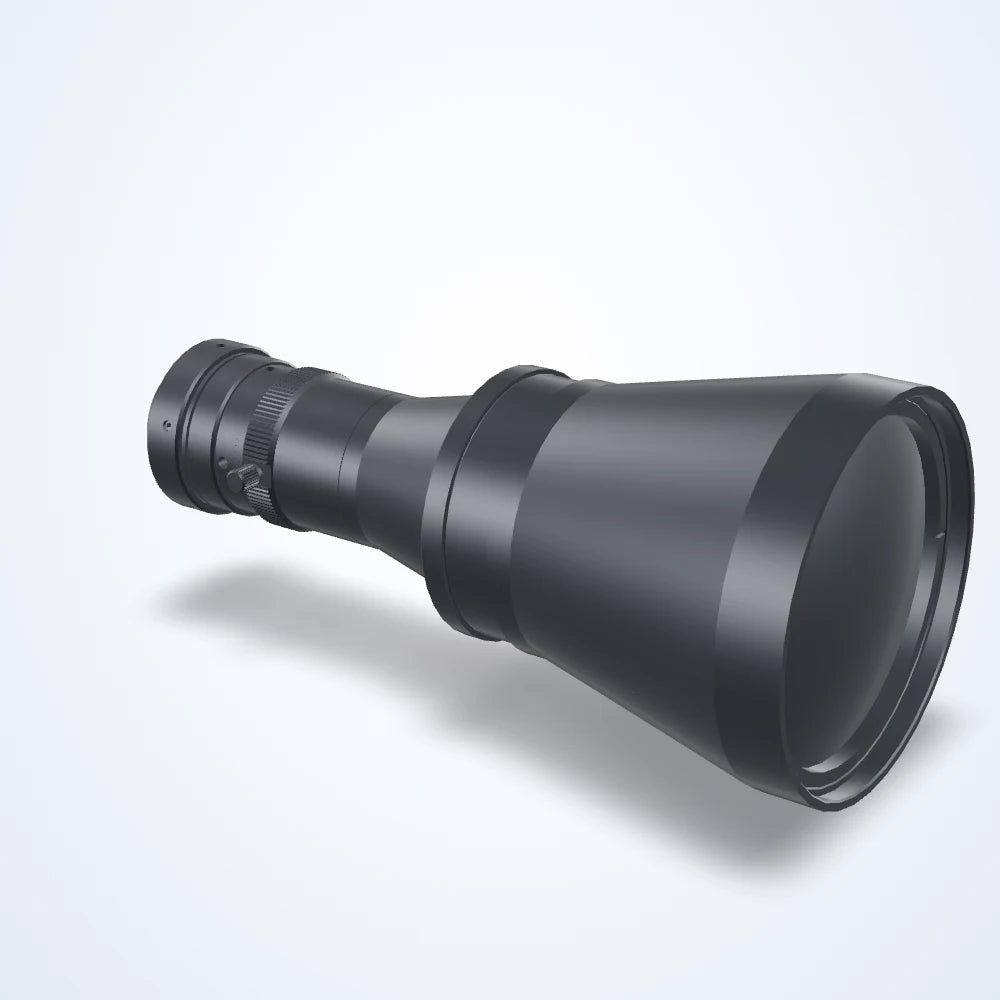

  • 0.345× lens, 1.1", C-mount (LS-FFL-0044) - view 2

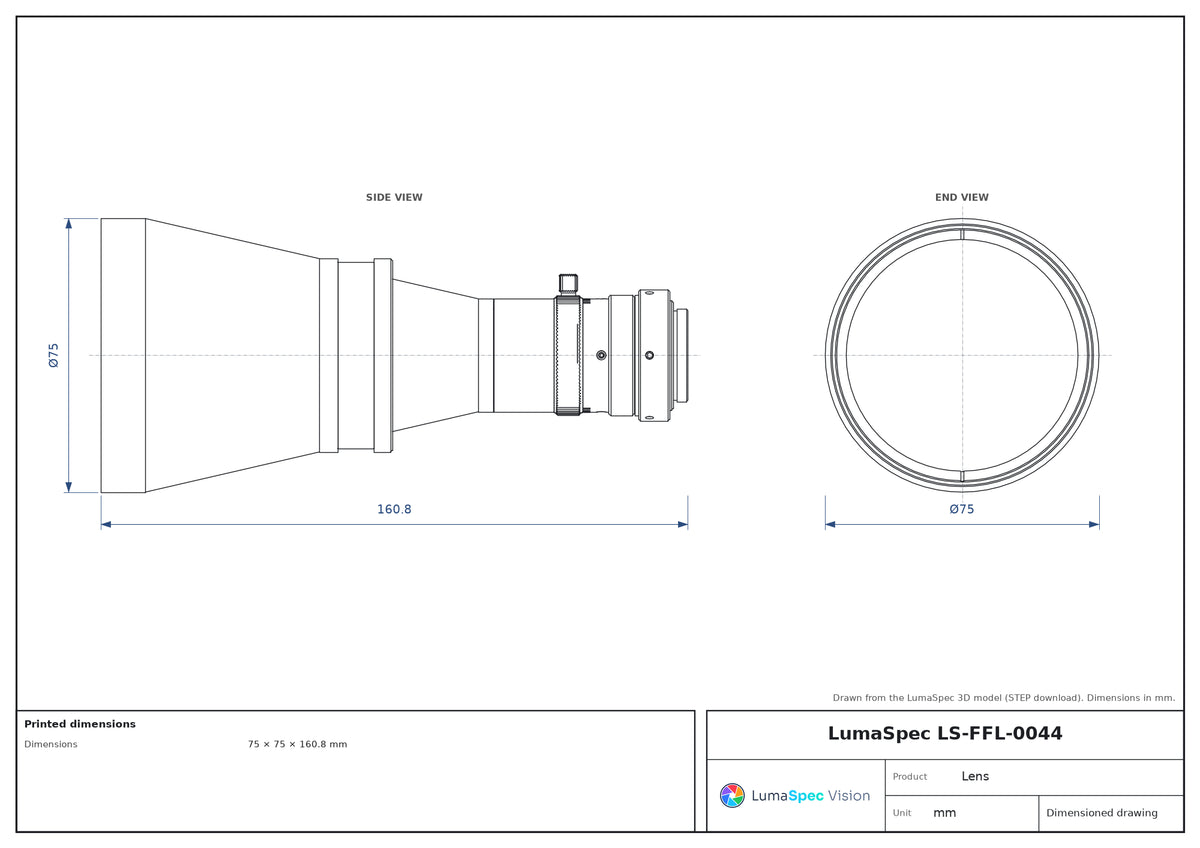

  • LS-FFL-0044 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

0.345× lens, 1.1", C-mount (LS-FFL-0044)

Model LS-FFL-0044

  • Magnification0.345×
  • MountC-mount
  • Sensor1.1"
  • Resolution12
$2,089.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

0.345× lens, 1.1", C-mount (LS-FFL-0044)LS-FFL-0044

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Machine vision lens for industrial cameras. Depth of field 6.63 mm; minimum object distance 165.2 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0044
Minimum object distance165.2 mm
Lens typeFixed Focal Length
SpectrumVisible
Working ƒ/nf/5 - f/32.4
Zoom rangeFixed

Optics

Magnification0.345×
Depth of field6.63 mm
Back focal length28.375 mm
Filter threadM72-0.75
Image circle17.6 mm
Iris controlManual
TV distortion (%)-0.024

Sensor and imaging

Sensor format1.1"
Resolution (MP)12

Environment and compliance

Operating temperature range-10 to +50 °C

Mechanical

MountC-mount
Dimensions75 × 75 × 160.8 mm
Weight380

LS-FFL-0044

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-FFL-0044 — Lenses, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Magnification
0.345×
Sensor format
1.1"
Mount
C-mount

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
