Dome light, 237.2 mm, length 629.9 mm (LS-DOM-0001-L4)

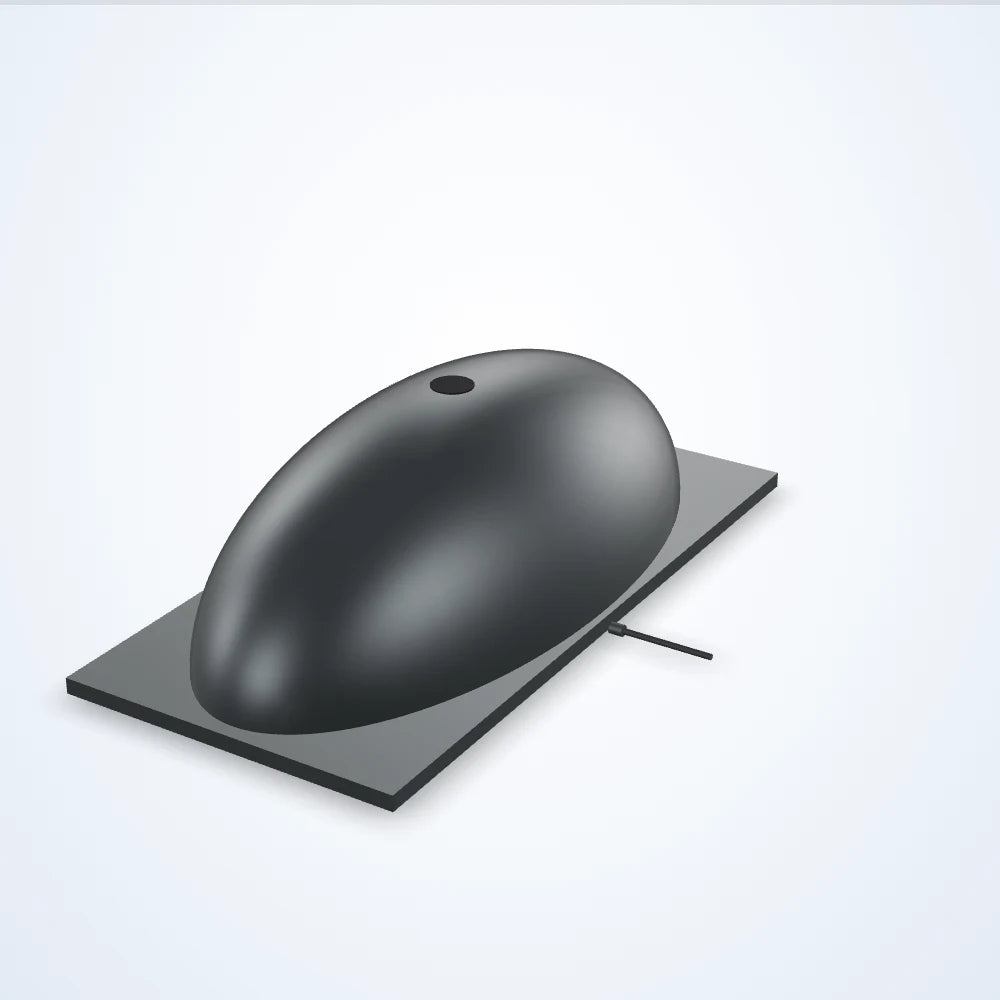

  • Dome light, 237.2 mm, length 629.9 mm (LS-DOM-0001-L4)

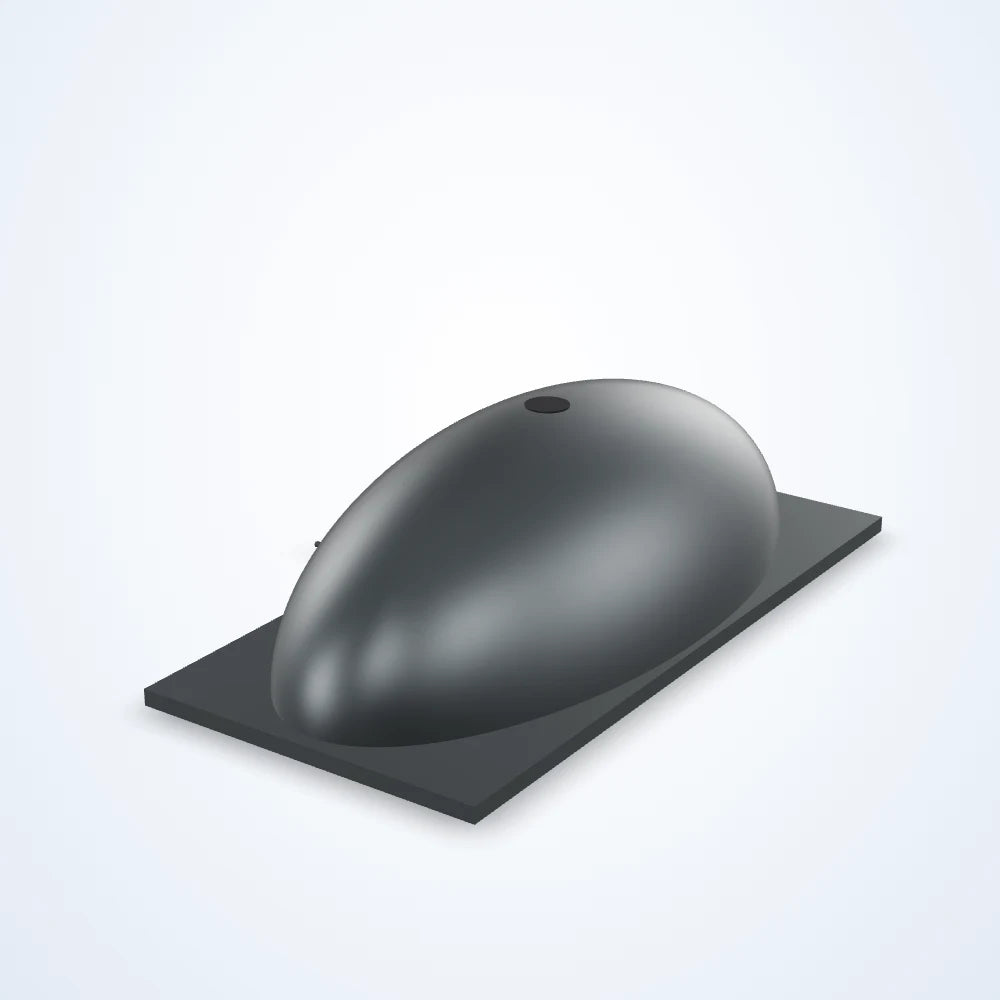

  • Dome light, 237.2 mm, length 629.9 mm (LS-DOM-0001-L4) - view 2
  • Dome light, 237.2 mm, length 629.9 mm (LS-DOM-0001-L4) - view 3
  • Dome light, 237.2 mm, length 629.9 mm (LS-DOM-0001-L4) - view 4

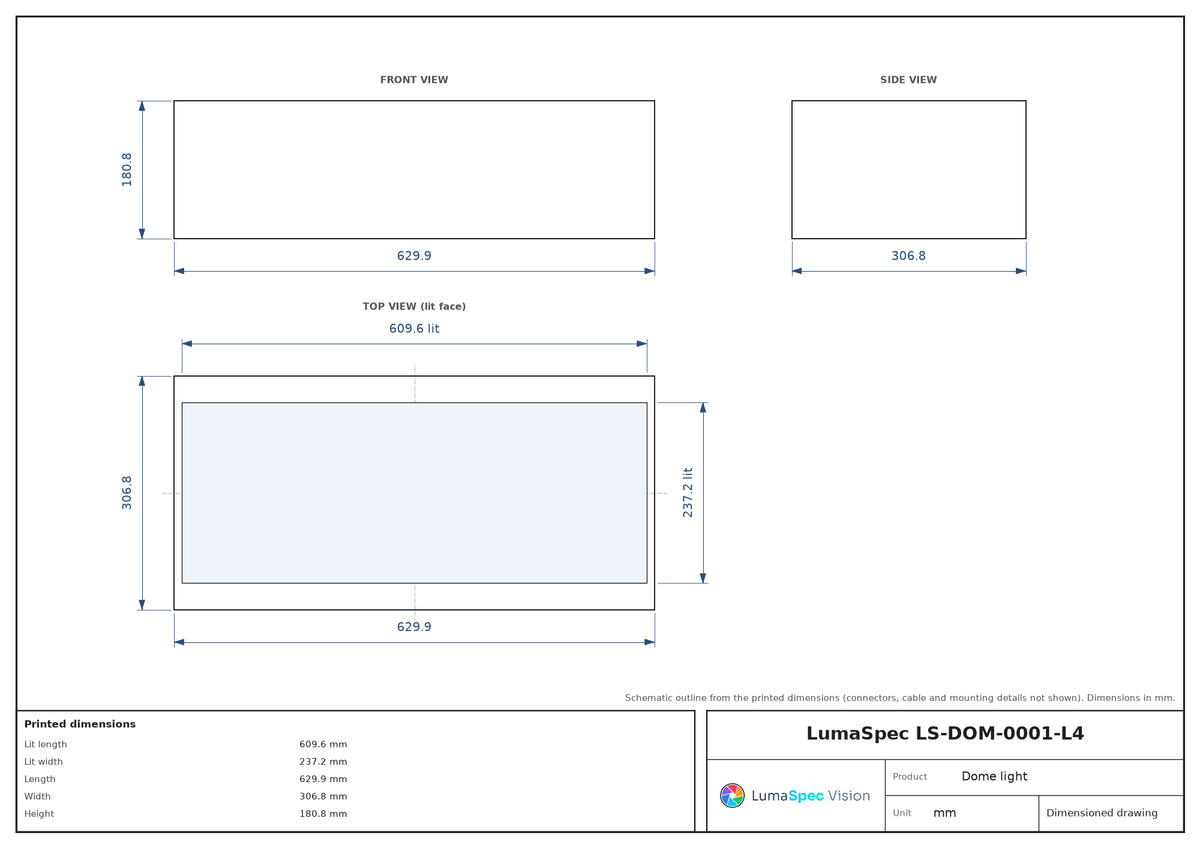

  • LS-DOM-0001-L4 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Dome lights

Dome light, 237.2 mm, length 629.9 mm (LS-DOM-0001-L4)

Model LS-DOM-0001-L4

  • ColourWhite, Infrared, Red, Green, Blue
  • Voltage24 VDC
  • Wavelength730 nm, 850 nm, 940 nm
  • Lit length609.6 mm
from $5,299.00 USDList price

Sold by quote: request a quote and we confirm the price, lead time and volume pricing.

Built to order: ships in about 4-5 weeks

Choose a configuration 88 available

Driver included
Driver location
Intensity control
Strobe trigger input
Version

Configuration LS-DOM-0001-111 $5,299.00

List price of this configuration; the final quote follows.

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

Dome light, 237.2 mm, length 629.9 mm (LS-DOM-0001-L4)LS-DOM-0001-L4

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Dome light for diffuse, cloudy-day illumination of curved, shiny and reflective parts; the camera looks through the viewport. Lit area 609.6 x 237.2 mm; 24 VDC supply; connection: flying leads. Choose colour, driver included, driver location, intensity control, operating modes below (88 configurations) and request a quote.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CEIEC 62471RoHS

Specifications

General

ModelLS-DOM-0001-L4
Connection at lightHardwired
Maximum duty cycle (%)100
CollimatedNot Collimated
Daisy chainNo
Direct connectNo
PolarizedNot Polarized

Interfaces and I/O

ConnectorFlying Leads
Cable length (mm)2000

Light

DiffusedNot Diffused

Environment and compliance

Operating temperature0 to 60 °C
IP ratingIP67
ComplianceCE, IEC 62471, RoHS
As declared by the manufacturer

Electrical

Voltage24 VDC
Maximum constant on current (mA)1800 / 2800 (by configuration)
Maximum current (overcurrent strobe) (mA)8000 (by configuration)
Maximum input power constant on (W)43.2 / 67.2 (by configuration)
Maximum input power overcurrent strobe (W)150 (by configuration)
Maximum overcurrent strobe frequency (Hz)2000 (by configuration)
Maximum overcurrent strobe latency (µs)20 (by configuration)
NPN trigger voltage (V)< 1 VDC (by configuration)
PNP trigger current (mA)5 (by configuration)
PNP trigger voltage (V)2.5-30 VDC (by configuration)

Mechanical

Lit length (mm)609.6
Lit width (mm)237.2
Length (mm)629.9
Width (mm)306.8
Height (mm)180.8
HousingAluminum
MountingTapped Holes

Engineering data

Drive and fit the LS-DOM-0001-L4

Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.

Supply24 V DC
Ingress protectionIP67
Operating temperature0 to 60 °C
Cable length2000 mm

Mounting and installation

MountingTapped holes
Cable2 mFlying leads
ProtectionIP67
HousingAluminum

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

Controllers for this light

About 300 W per channel at 24 V (from its rated output) for this 150 W light

About 300 W per channel at 24 V (from its rated output) for this 150 W light

200 W per channel at 24 V for this 150 W light

About 300 W per channel at 24 V (from its rated output) for this 150 W light

About 405 W per channel at 24 V (from its rated output) for this 150 W light

About 400 W per channel at 24 V (from its rated output) for this 150 W light

LS-DOM-0001-L4

See this component from every angle.

Dimension-based illustration; details may differ from the product. Verify the dimensioned drawing.

Explore the visual library
LS-DOM-0001-L4 — Dome lights, View 1 Dimension-based 3D

FROM THE PRINTED SPECIFICATIONS

Connector
Flying Leads
Lit length (mm)
609.6
Lit width (mm)
237.2
Voltage
24 VDC

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.

Other models in the Dome light, 180.8 mm high, flying leads (LS-DOM-S01) series

See all 6 models
ModelSizeLit lengthPriceAvailabilityLink
LS-DOM-0001-L4This model609.6 x 237.2 mm609.6 mm$5,299.00 Quote Built to order: ships in about 4-5 weeks
LS-DOM-0001-L1152.4 x 237.2 mm152.4 mm$3,579.00 Quote Built to order: ships in about 4-5 weeks View
LS-DOM-0001-L2304.8 x 237.2 mm304.8 mm$4,089.00 Quote Built to order: ships in about 4-5 weeks View
LS-DOM-0001-L3457.2 x 237.2 mm457.2 mm$4,579.00 Quote Built to order: ships in about 4-5 weeks View
LS-DOM-0001-L5762 x 237.2 mm762 mm$6,119.00 Quote Built to order: ships in about 4-5 weeks View
LS-DOM-0001-L6914.4 x 237.2 mm914.4 mm$6,939.00 Quote Built to order: ships in about 4-5 weeks View
