52 x 53 mm coaxial light source (LS-CXL-0062)
  • 52 x 53 mm coaxial light source (LS-CXL-0062)

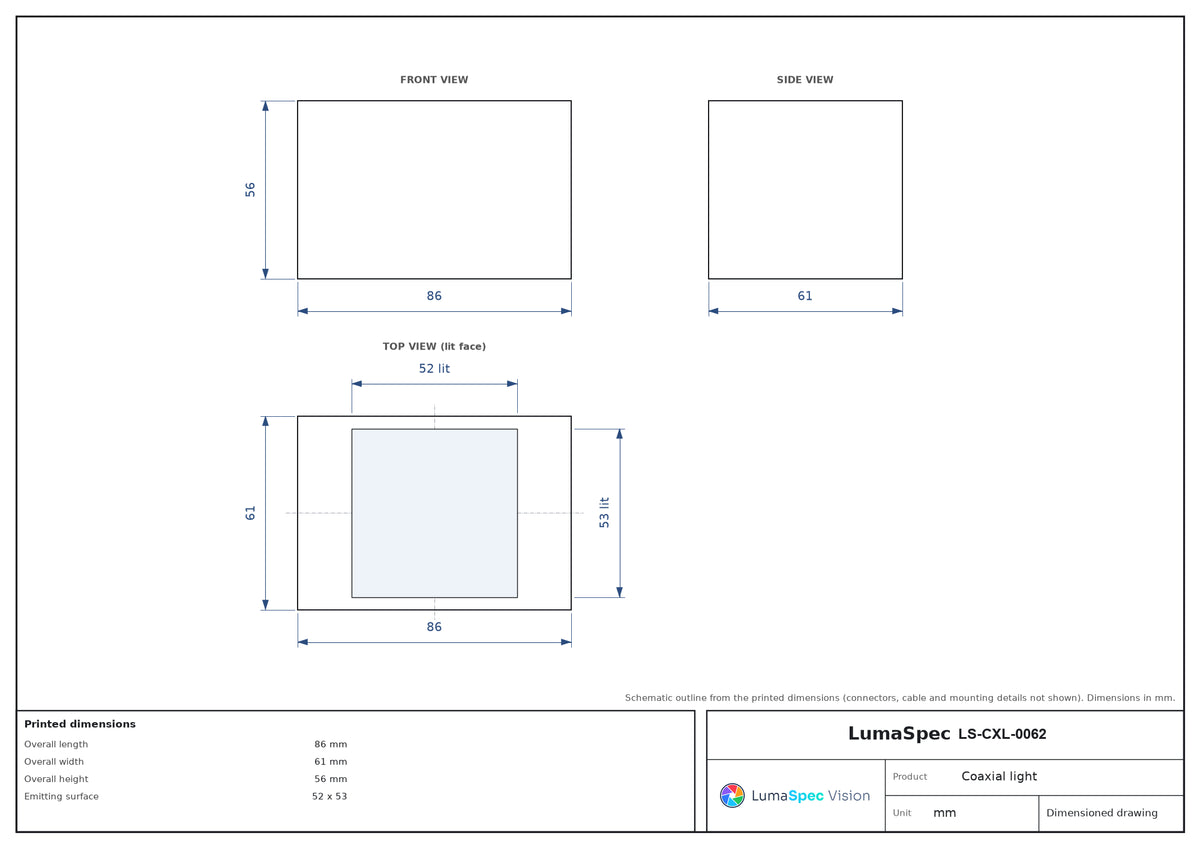

  • LS-CXL-0062 dimensions (mm)

Representative photo of this series

Coaxial lights

52 x 53 mm coaxial light source (LS-CXL-0062)

Model LS-CXL-0062-R

  • ColourRed, Green, Blue, White, Infrared, UV
  • Emitting area52 x 53 mm
  • Voltage24 V DC (12 V on request)
  • Cable length500 mm
$239.00

Ships in 2-3 weeks

0.45 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

52 x 53 mm coaxial light source (LS-CXL-0062)LS-CXL-0062-R

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-CXL-0062: window surface 43.2 x 43.2 mm, overall length 86 mm, overall width 61 mm, overall height 56 mm.

Coaxial light giving clear imaging with high brightness and uniform coaxial illumination; highlights uneven surface textures and overcomes interference from surface reflection. Mainly detects scratches, dents, cracks and foreign objects on smooth, flat objects.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CXL-0062
Window surface (mm)43.2 x 43.2

Interfaces and I/O

Cable length (mm)500

Light

Emitting surface (mm)52 x 53

Electrical

Voltage24 V DC (12 V on request)
Power red (W)1.8
Power white/blue/green (W)2.4

Mechanical

Overall length (mm)86
Overall width (mm)61
Overall height (mm)56
Shipping weight0.45 kg

Engineering data

Drive and fit the LS-CXL-0062

Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.

Supply24 V DC
Current at 24 V100 mACalculated: printed power ÷ supply voltage
Controller channel it needs24 V constant voltage, at least 2.4 W
Emitting area52 × 53 mmKeep the camera's field of view inside it for an even background.
Cable length500 mm

Mounting and installation

MountingSee the dimension drawing, Hole positions are not given in the written specifications
Cable0.5 m

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: supply voltage, drive type and the light's power against the controller's power per channel.

Build the full system with this part

Controllers for this light

20 W per channel at 24 V for this 2.4 W light

About 12 W per channel at 24 V (from its rated output) for this 2.4 W light

About 10 W per channel at 24 V (from its rated output) for this 2.4 W light

About 48 W per channel at 24 V (from its rated output) for this 2.4 W light

20 W per channel at 24 V for this 2.4 W light

About 15 W per channel at 24 V (from its rated output) for this 2.4 W light
