Narrow angle coaxial light, 64 x 40 x 40 mm (LS-CXL-0012)
  • Narrow angle coaxial light, 64 x 40 x 40 mm (LS-CXL-0012)

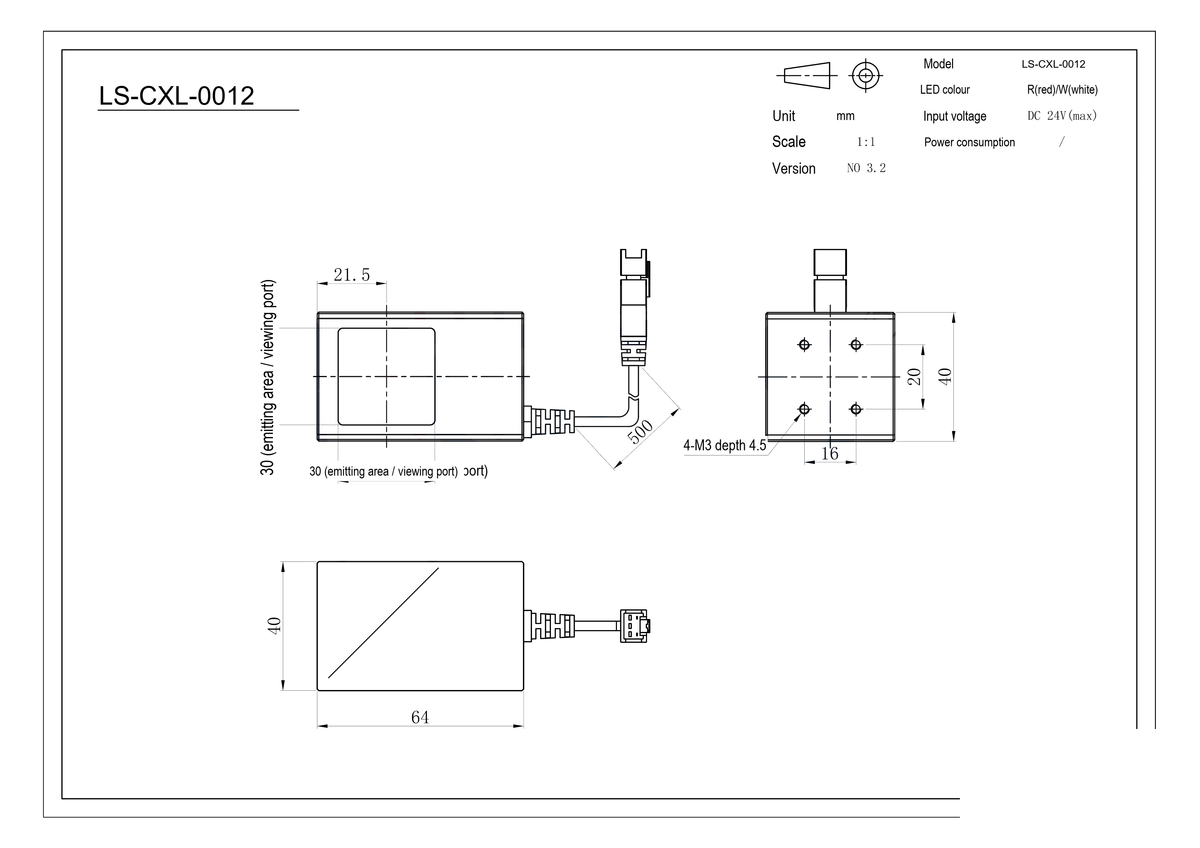

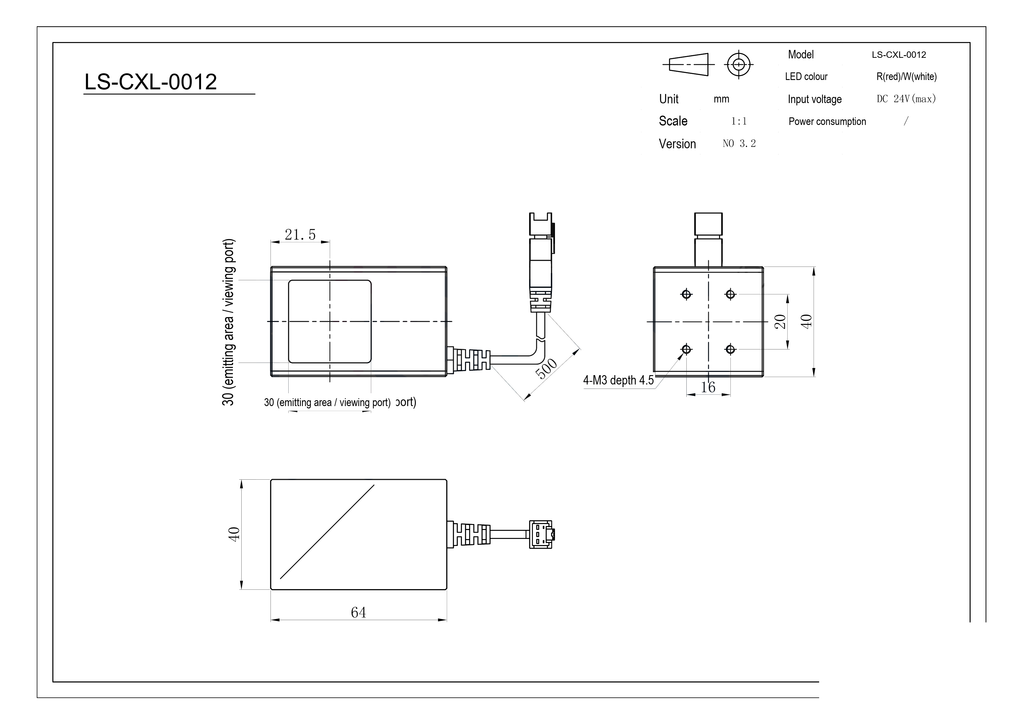

  • LS-CXL-0012 dimensions (mm)
Series photo

Representative photo of this series

Coaxial lights

Narrow angle coaxial light, 64 x 40 x 40 mm (LS-CXL-0012)

Model LS-CXL-0012-R

  • ColourRed, Blue, Green, White
  • SizeL 64 × W 40 × H 40 mm
  • Voltage24 V
  • Power2.9 W/4.4 W
$279.00

Ships in 2-3 weeks

0.25 kg shipping weight

Color

By placing an order you agree to our Terms of Service, Shipping Policy and Refund Policy. Ship and delivery dates are estimates and are not guaranteed.

Volume pricing, Net 30 terms or a formal quote for purchasing?

lumaspecvision.com/products/lumaspec-ls-cxl-0012

Request a quote

Narrow angle coaxial light, 64 x 40 x 40 mm (LS-CXL-0012)LS-CXL-0012-R

Price, lead time and volume pricing by email, usually within one business day.

Add delivery date or notes (optional)

No account needed. We reply within one business day.

A coaxial light with a 64 x 40 mm housing, LS-CXL-0012 is the smallest of the 6 sizes in its series, for the smallest fields of view. It has a rated power of 2.9 W/4.4 W.

Narrow angle coaxial light (new) with high uniformity and high luminance; the light rays are approximately parallel, suited to mirror surfaces.

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy

Specifications

General

ModelLS-CXL-0012-R
FOV (series range)1 mm~100 mm
CoolingFan (fan and light powered independently)
Viewport (camera hole)30 x 30 mm

Optics

Recommended working distance (series range)5 mm~300 mm

Interfaces and I/O

Cable length500 mm
Extension cable optionsPVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines)

Light

Emitting area (series range)20 mm x 20 mm to 100 mm x 100 mm
Colour temperature of white6600 K

Environment and compliance

Operating temperature0 to 50 °C
Operating humidity20-85% (non-condensing)
Lifespan50000 h (to 50% of factory default luminance)

Electrical

Voltage24 V
Adapted controllersStrobe controller, analog controller, digital controller
Power2.9 W/4.4 W
Input voltage24 V DC (max)

Mechanical

DimensionL 64 × W 40 × H 40 mm
Mounting holes4-M3 depth 4.5
Shipping weight0.25 kg

Features of the LS-CXL-0012

  • 64 x 40 x 40 mm housing, mounting 4-M3 depth 4.5
  • A more compact housing than the 74 x 50 mm version
  • Draws about 180 mA at 24 V at full power: needs a controller channel or supply of 4.4 W or more
Shared by the whole Narrow angle coaxial light (LS-CXL-S06) series6 points
  • High uniformity, high luminance
  • Light rays approximately parallel
  • For mirror surfaces
  • Fan cooled; fan and light are powered independently
  • Wire jacket covers the cable exit, anti-pull
  • Apply to mirror surface

Applications

  • Defect inspection of reflective surfaces
  • Mark position location
  • Crack or scratch inspection of metal surfaces
  • Edge measurement and contour inspection
  • Surface character inspection of electronic components
  • Imaging example (same series): character inspection on a watch shell, white characters on a black background

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this partConfigure a systemAsk an engineer

Engineering data

Drive and fit the LS-CXL-0012

Current at 24 V183 mACalculated: printed power ÷ supply voltage
Controller channel it needs24 V constant voltage, at least 4.4 W

Mounting and installation

Mounting holes 4 × M3, 4.5 mm deep
Cable0.5 m

Compatible parts

Fits with this part

Checked with the configurator's fit rules: supply voltage and drive type, and the light's power against the controller's power per channel wherever both are printed.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

Set total $418.00

Controllers for this light

This 4.4 W light uses 26 % of one channel (about 16.8 W, from the rated output)

This 4.4 W light uses 59 % of one channel (about 7.5 W, from the rated output)

This 4.4 W light uses 59 % of one channel (about 7.5 W, from the rated output)

This 4.4 W light uses 52 % of one channel (about 8.4 W, from the rated output)

This 4.4 W light uses 44 % of one channel (about 10 W, from the rated output)

This 4.4 W light uses 42 % of one channel (about 10.5 W, from the rated output)

Before you buy

Questions about the LS-CXL-0012

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which controller drives the LS-CXL-0012?

Fit-tested at its highest rated power, 4.4 W: LS-CTL-0508 (about 16.8 W per channel, about 74 % headroom), LS-CTL-0353 (about 7.5 W per channel, about 41 % headroom), LS-CTL-0412 (about 7.5 W per channel, about 41 % headroom) and LS-CTL-0509 (about 8.4 W per channel, about 48 % headroom).

What supply voltage and power does the LS-CXL-0012 need?

It runs on 24 V. The power is 2.9 W in red and 4.4 W in blue, green or white. That is about 0.18 A at 4.4 W on 24 V (calculated).

Can the LS-CXL-0012 be strobed?

Yes - it works with strobe, analog and digital controllers.

What working distance is the LS-CXL-0012 made for?

The recommended working distance (series range) is 5 mm~300 mm.

What temperature range is the LS-CXL-0012 rated for?

Its operating temperature range is 0 to 50 °C.

Other models in the Narrow angle coaxial light (LS-CXL-S06) series

See all 12 models in the series

How this model compares

  • Compared with LS-CXL-0014: power 2.9 W/4.4 W here, 4.4 W/4.4 W there; viewport (camera hole) 30 x 30 mm here, 40 x 33 mm there.
ModelPowerColourSizeEmitting areaPriceAvailabilityLink
LS-CXL-0015Red, Green, Blue, White50 x 50 mm$219.00 Ships in 2-3 weeks View
LS-CXL-0017Red, Green, Blue, White60 x 60 mm$269.00 Ships in 2-3 weeks View
LS-CXL-0012This model2.9 W/4.4 WRed, Blue, Green, WhiteL 64 × W 40 × H 40 mm$279.00 Ships in 2-3 weeks
LS-CXL-00144.4 W/4.4 WRed, Blue, Green, WhiteL 74 × W 50 × H 50 mm$329.00 Ships in 2-3 weeks View
LS-CXL-0019Red, Green, Blue, White80 x 80 mm$369.00 Ships in 2-3 weeks View
LS-CXL-00166.5 W/7.2 WRed, Blue, Green, WhiteL 84 × W 60 × H 60 mm$389.00 Ships in 2-3 weeks View
LS-CXL-00188.7 W/10.8 WRed, Blue, Green, WhiteL 94 × W 70 × H 70 mm$439.00 Ships in 2-3 weeks View
LS-CXL-002015.2 W/21.6 WRed, Blue, Green, WhiteL 114 × W 92 × H 90 mm$559.00 Ships in 2-3 weeks View
LS-CXL-002224.5 W/32.4 WRed, Blue, Green, WhiteL 134 × W 112 × H 110 mm$689.00 Ships in 2-3 weeks View
