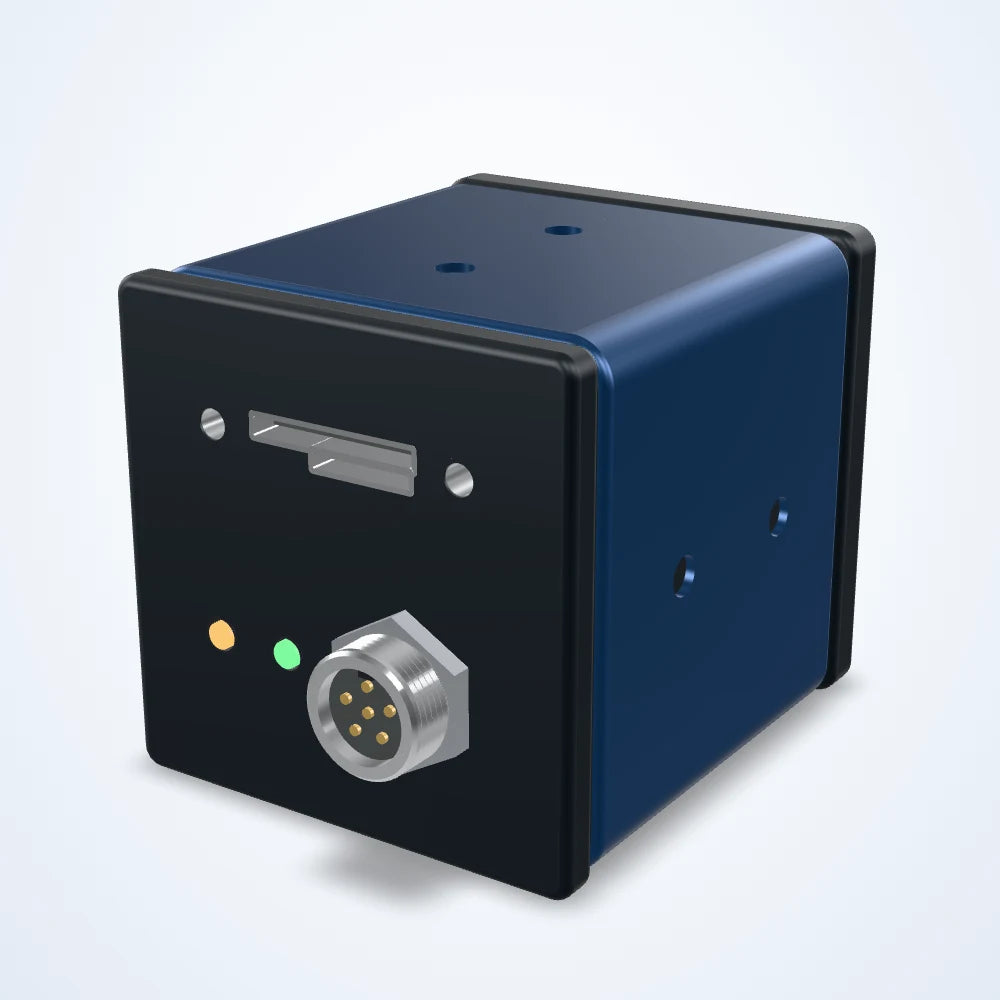

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
1280 x 1024 GigE SWIR camera, IMX990, 1/2", 91 fps, GigE Vision (LS-CMR-0503)
Model LS-CMR-0503
- Resolution1280 x 1024
- Sensor1/2"
- InterfaceGigE
- Speed91 fps
- Lens mountC-mount
- Pixel size5 μm x 5 μm
$20,000.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 3-4 weeks
2.0 kg shipping weight
Collect parts in your quote list; we reply with price, lead time and volume pricing.
1.3 MP SWIR camera for inspection, measurement and guidance on the production line. IMX990 sensor (1/2"); 1280 x 1024 pixels; up to 91 frames per second; GigE interface; C-mount lens mount; spectral range 400-1700 nm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0503 |
|---|---|
| Spectral range | 400-1700 nm |
| Scan Type | Area Scan |
Sensor and imaging
| Sensor size | 1/2" |
|---|---|
| Sensor model | IMX990 |
| Max. frame rate | 91 fps |
| Resolution | 1280 x 1024 |
| Sensor make | Sony |
| Sensor type | InGaAs |
| Pixel size | 5 μm x 5 μm |
| Dynamic range | 56.0 dB |
| Exposure time | UltraShort exposure mode: 3 μs - 7 μs 8 μs - 0.1s |
| Pixel bit depth | 8 / 10 / 12 bits |
Interfaces and I/O
| Data interface | GigE |
|---|---|
| Digital I/O | 1 input(opto-isolated), 1 output(opto-isolated) , 1 bidirectional configurable non-isolated I/O, 1 RS232 |
Environment and compliance
| Operating temperature | -30- 50°C(Operating), -30- 70°C(Storage) |
|---|---|
| Certification | GigE Vision / GenICam |
Computing
| Operating system | Windows |
|---|
Electrical
| Trigger mode | ● Soft Trigger ● Hardware Trigger ● Free Run |
|---|---|
| Power supply | 9-24 VDC |
| Power consumption | 12 V @11.7 W(TEC enabled) |
Mechanical
| Lens mount | C-mount |
|---|---|
| Dimensions | 58 mm × 58 mm × 82 mm |
| Weight | 470g |
| Mounting holes | 4-M3; 2-M2 |
