1280 x 1024 GigE SWIR camera, IMX990, global shutter, 91 fps

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

1280 x 1024 GigE SWIR camera, IMX990, global shutter, 91 fps (LS-CMR-0501)

Model LS-CMR-0501

Resolution1280 × 1024
SensorInGaAs
InterfaceGigE, PoE
Speed91 fps
Lens mountC-mount
Pixel size5 μm × 5 μm

$14,000.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 3-4 weeks

0.28 kg shipping weight

Not available in the United States. Available for delivery to other countries.

1.3 MP SWIR camera for inspection, measurement and guidance on the production line. IMX990 sensor; 1280 x 1024 pixels of 5 μm; up to 91 frames per second; global shutter; GigE interface; C-mount lens mount; spectral range 400-1700 nm.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0501
Spectral range	400~1700 nm
ROI	Support
Gamma / LUT	LUT Range: 0 to 3.99998, with LUT
Image Acquisition Mode	Software Trigger, Hardware Trigger, Free Run
SPC	Support

Sensor and imaging

Resolution	1280 × 1024
Max. frame rate	91 fps
Sensor model	IMX990 (1/2"CMOS InGaAs)
Pixel size	5 μm × 5 μm
Pixel bit depth	12
Shutter	Global
SNR	56 dB
Dynamic range	52 dB
Binning	off, 1×2, 2×1, 2×2, 1×4, 4×1, 2×4, 4×2, 4×4, 3×3, 1×6, 6×1, 6×6
Gain	1 ~ 32X
Exposure time	Ultra-Short: 3 μs ~ 14 μs Standard: 15 μs ~ 10s
Image buffer	256 MB
Sensor type	InGaAs
Sensor size	1/2"
Sensor make	Sony

Interfaces and I/O

Data interface	GigE, PoE
Digital I/O	Hirose (6-pin): 1 channel optically isolated input, 1 channel optically isolated output, 1 channel configurable digital I/O (non-isolated)

Environment and compliance

Storage temperature	-30 °C~ +80 °C
Operating temperature	0 °C~ +50 °C
Certification	GigE Vision and GenICam

Computing

Operating system	Windows, Linux

Electrical

Configuration Channel	Supports saving 3 sets of user-defined configurations
Power supply	PoE or 9-24 V DC (via Hirose)
Power consumption	2.8 W (Typ. @12 VDC)
Trigger mode	● Soft Trigger ● Hardware Trigger ● Free Run

Mechanical

Lens mount	C-Mount

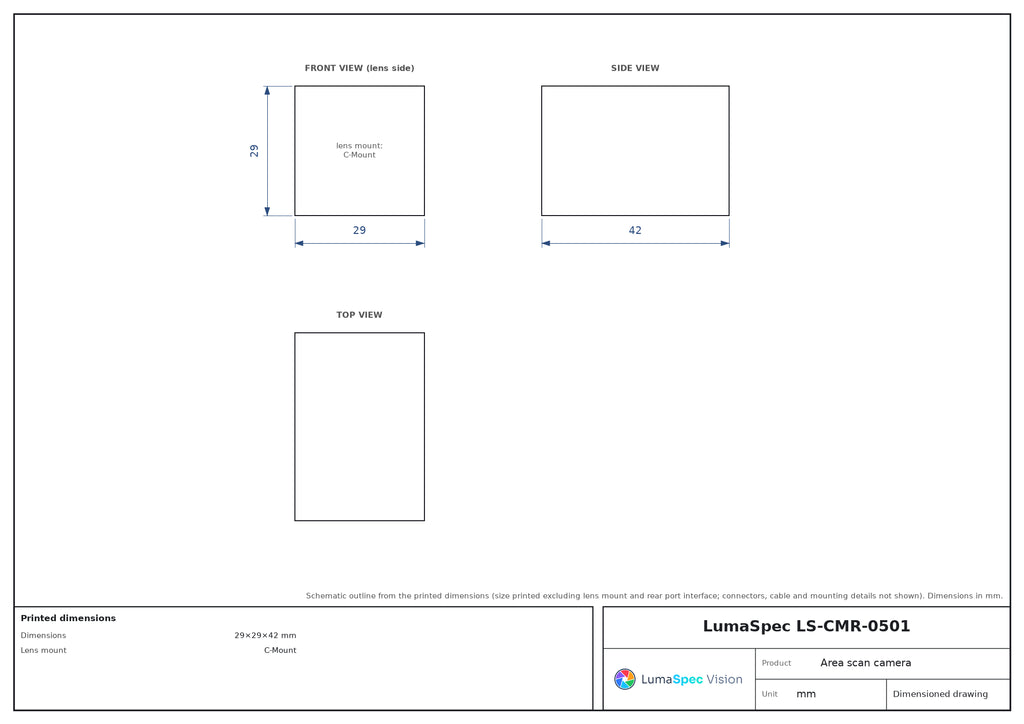

Dimensions	29×29×42 mm (98g) (excluding lens mount and rear port interface)
Weight	98g
