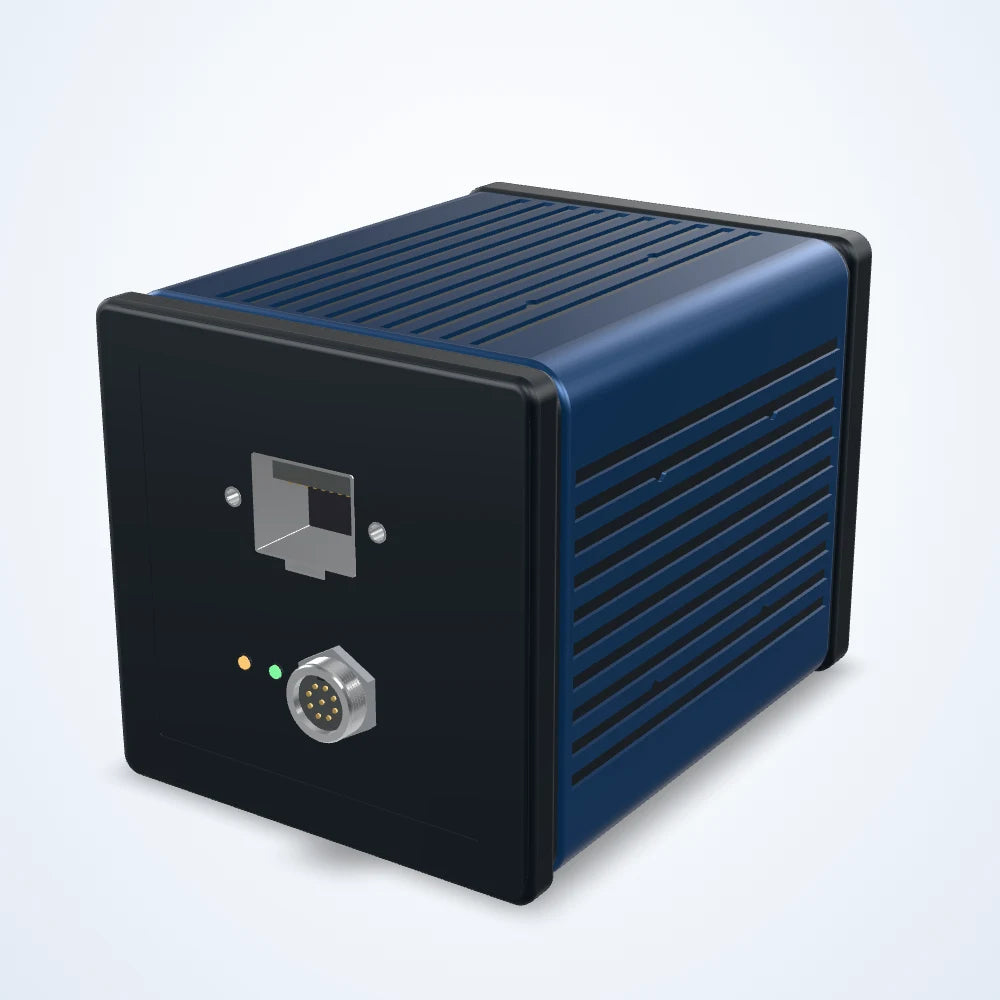

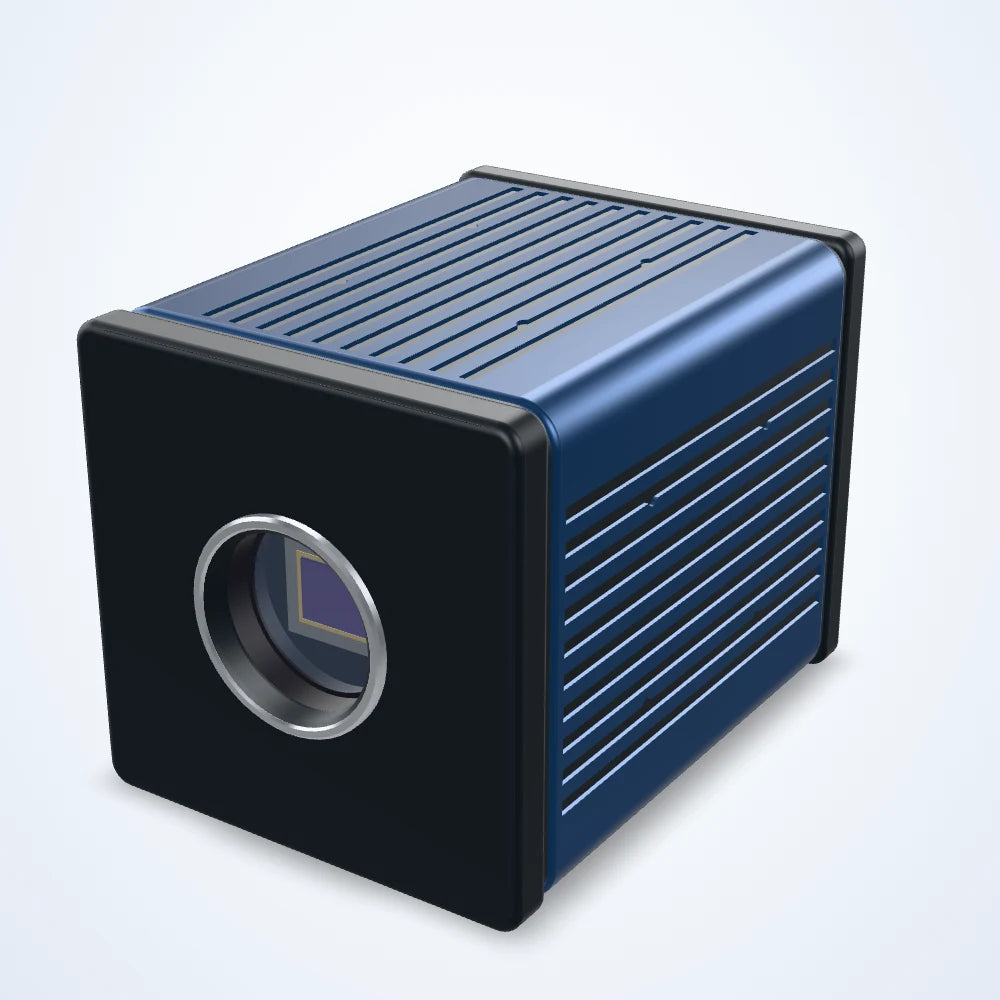

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
640 x 512 GigE SWIR camera, 3/4", 125 fps, 900-1700 nm 3/4” GigE (LS-CMR-0485)
Model LS-CMR-0485
- Resolution640 × 512
- SensorInGaAs
- InterfaceGigE
- Speed125 fps
- Lens mountC-mount
- Pixel size15 μm
$14,850.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 3-4 weeks
1.0 kg shipping weight
Collect parts in your quote list; we reply with price, lead time and volume pricing.
0.3 MP SWIR camera for inspection, measurement and guidance on the production line. InGaAs sensor (3/4"); 640 x 512 pixels of 15 μm; up to 125 frames per second; GigE interface; spectral range 900-1700 nm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0485 |
|---|---|
| Spectral range | 900-1700 nm |
| Spectral Band | 0.9-1.7um |
Sensor and imaging
| Resolution | 640 × 512 |
|---|---|
| Sensor type | InGaAs |
| Sensor size | 3/4" |
| Max. frame rate | 125 fps |
| Pixel size | 15 μm |
| Dynamic range | 70.59 dB(LG), 67.96 dB(MG), 47.98 dB(HG) |
| Exposure time | 31.25 us~1s |
| Pixel bit depth | 8/14 bit |
Interfaces and I/O
| Data interface | GigE |
|---|---|
| Digital I/O | 1 opto-isolated input, 1 opto-isolated output, 2 non-isolated I/O |
Environment and compliance
| Operating temperature | -30 °C ~ +60 °C(Operating)-40 °C ~ +85 °C(Storage) |
|---|---|
| Humidity | 20%~80% (non-condensing) |
Electrical
| Power supply | DC12 V |
|---|---|
| Power consumption | 8.4 W(TEC OFF)/ <16 W(TEC ON) |
Mechanical
| Weight | 485g |
|---|---|
| Dimensions | 68 mm × 68 mm × 90.3 mm |
| Lens mount | C-Mount |
