  • 640 x 512 GigE SWIR camera, IMX991, 1/4" global shutter, 257 fps, TEC Cooling

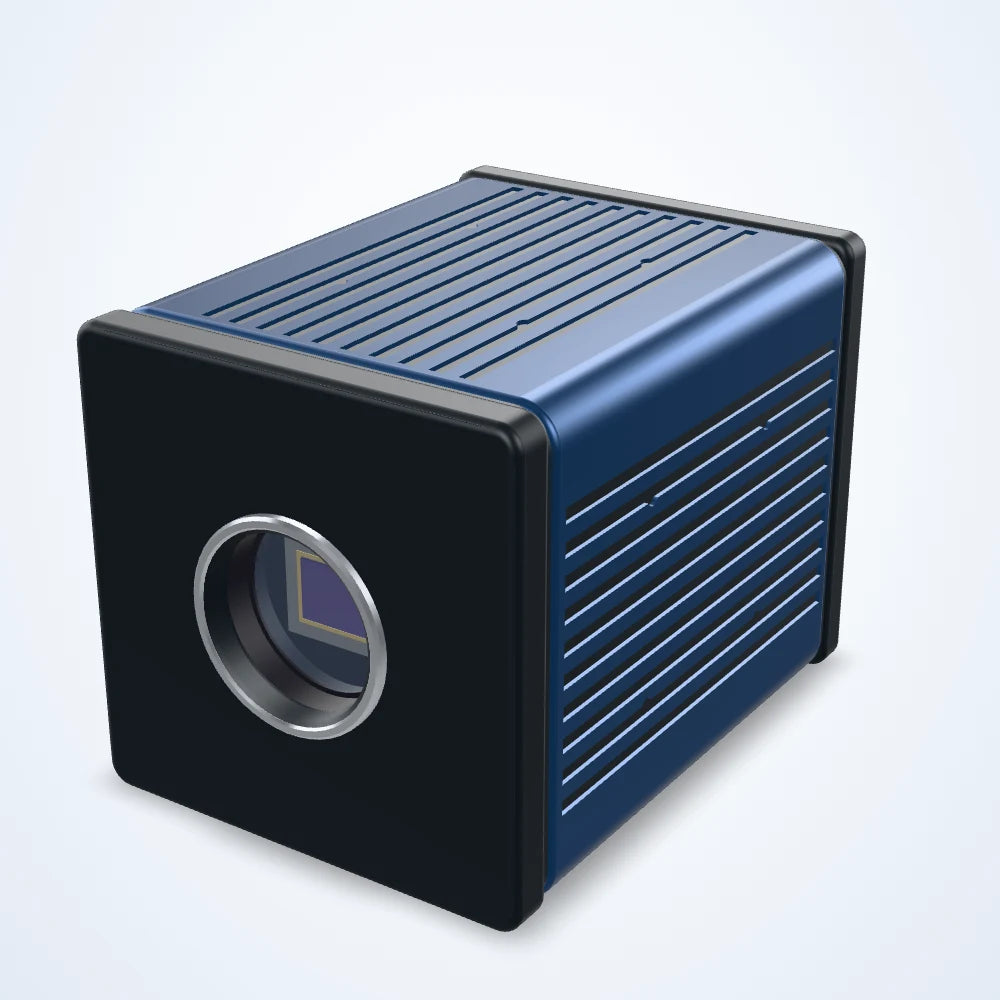

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

640 x 512 GigE SWIR camera, IMX991, 1/4" global shutter, 257 fps, TEC Cooling (LS-CMR-0488)

Model LS-CMR-0488

  • Resolution640 x 512
  • Sensor1/4"
  • InterfaceGigE
  • Speed257.8 fps
  • Lens mountC-mount
  • Pixel size5.0 μm x 5.0 μm
$9,174.00

Ships in 3-4 weeks

3.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

640 x 512 GigE SWIR camera, IMX991, 1/4" global shutter, 257 fps, TEC Cooling (LS-CMR-0488)LS-CMR-0488

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.3 MP SWIR camera for inspection, measurement and guidance on the production line. IMX991 sensor (1/4"); 640 x 512 pixels of 5 μm; up to 257 frames per second; global shutter; GigE interface; C-mount lens mount; spectral range 400-1700 nm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0488
Spectral range400 nm-1700 nm
CoolingA: TEC-Cooling J: External Cooling
Spectral Band0.4-1.8um

Sensor and imaging

Resolution640 x 512
Max. frame rate257.8 fps
Sensor modelIMX991
Sensor size1/4"
Pixel size5.0 μm x 5.0 μm
ShutterGlobal Shutter
Exposure time15 μs-60sec
Sensor typeInGaAs
Dynamic range59.7 dB
Pixel bit depth8/12 bit

Interfaces and I/O

Data interfaceGigE
Digital I/O1 opto-isolated input, 1 opto-isolated output, 2 non-isolated I/O

Environment and compliance

Operating temperature-40~85 °C ( Storage ), -20~60° C ( Working )
Humidity20%~80% (non-condensing)

Electrical

Power supply12 V

Mechanical

Lens mountC-Mount
Weight<390 g

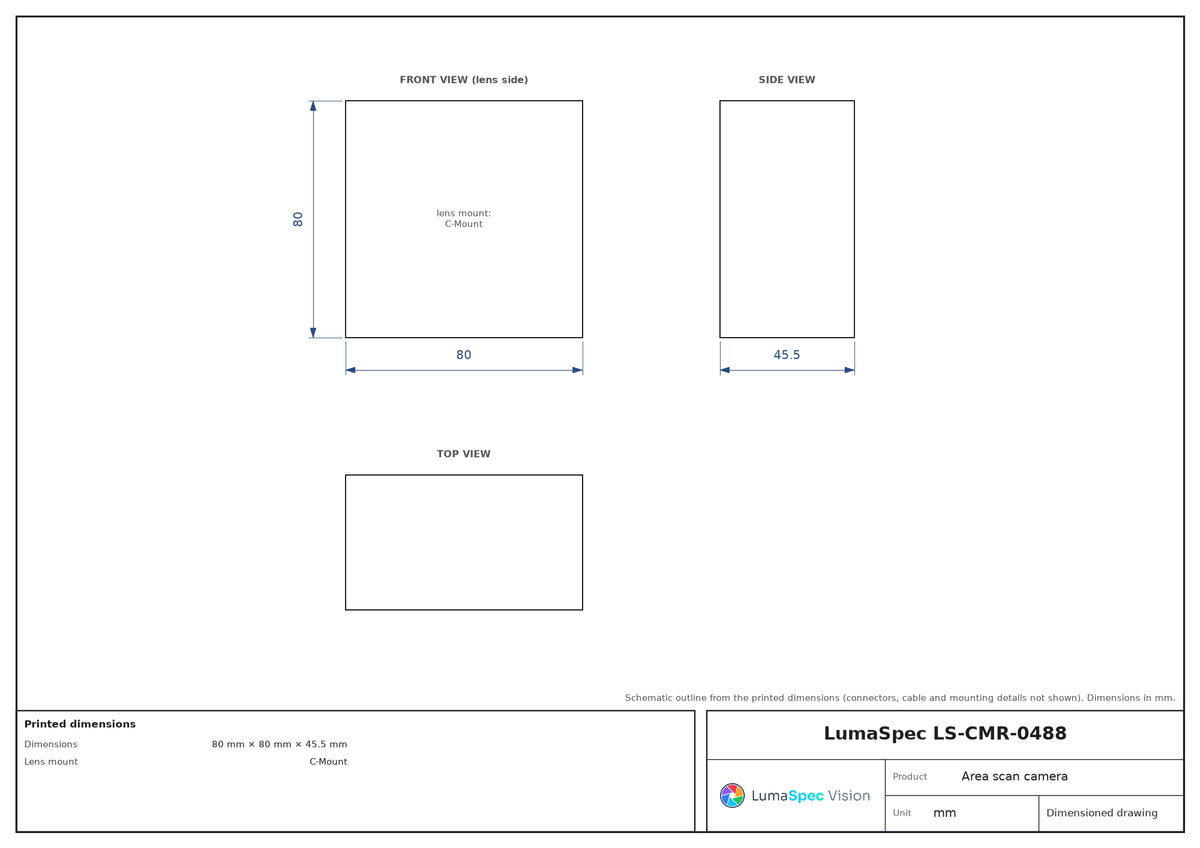

Dimensions80 mm × 80 mm × 45.5 mm
