  • 640 x 512 GigE SWIR camera, IMX991, 257.8 fps, Built-in TEC

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

640 x 512 GigE SWIR camera, IMX991, 257.8 fps, Built-in TEC (LS-CMR-0492)

Model LS-CMR-0492

  • Resolution640 x 512
  • Sensor1/4"
  • InterfaceGigE
  • Speed257.8 fps
$9,630.00

Ships in 3-4 weeks

3.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

640 x 512 GigE SWIR camera, IMX991, 257.8 fps, Built-in TEC (LS-CMR-0492)LS-CMR-0492

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.3 MP SWIR camera for inspection, measurement and guidance on the production line. IMX991 sensor; 640 x 512 pixels; up to 257.8 frames per second; GigE interface; spectral range 400-1800 nm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0492
Spectral range400-1800 nm
Scan TypeArea Scan

Sensor and imaging

Sensor modelIMX991
Max. frame rate257.8 fps
Resolution640 x 512
Sensor size1/4"

Interfaces and I/O

Data interfaceGigE

Electrical

Power supplyDC 12 V
Power consumption12 V @<2.1 W(Without cooling) <25 W(Cooling)

Mechanical

Lens mountC -Mount

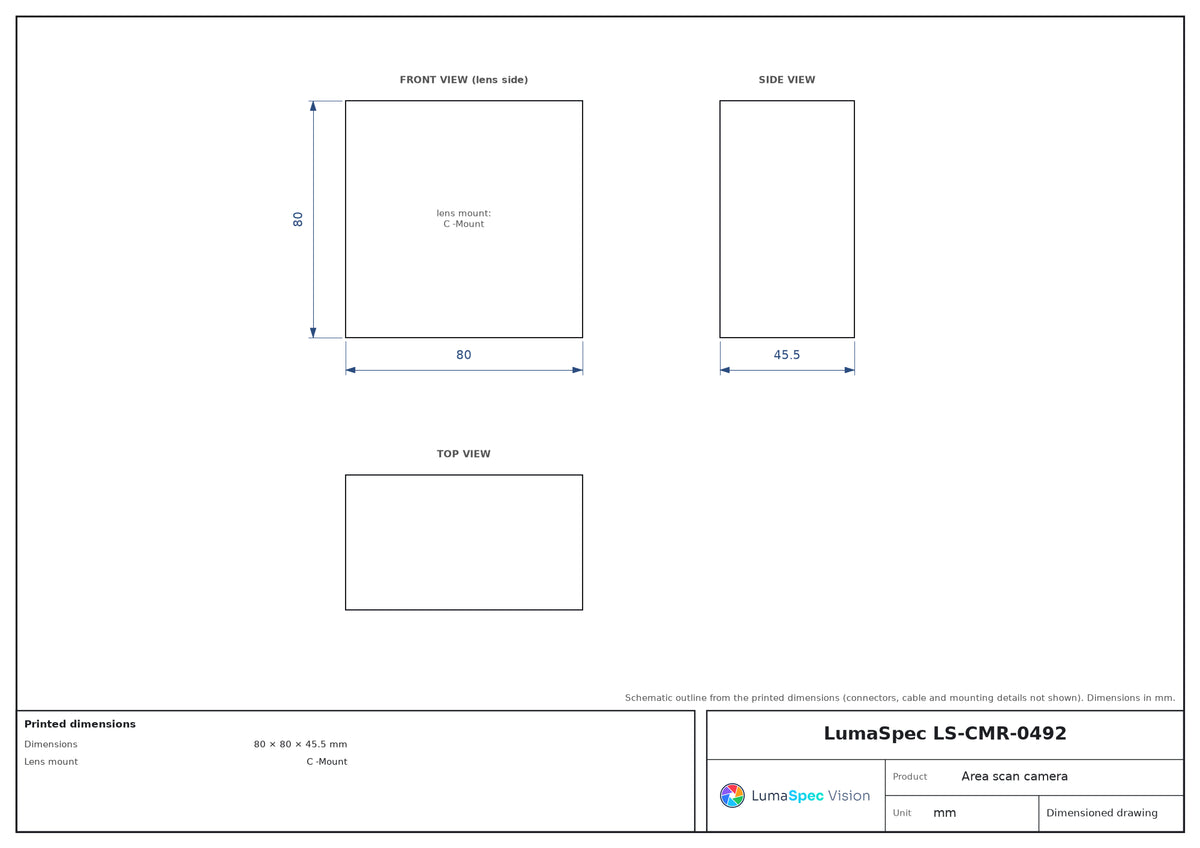

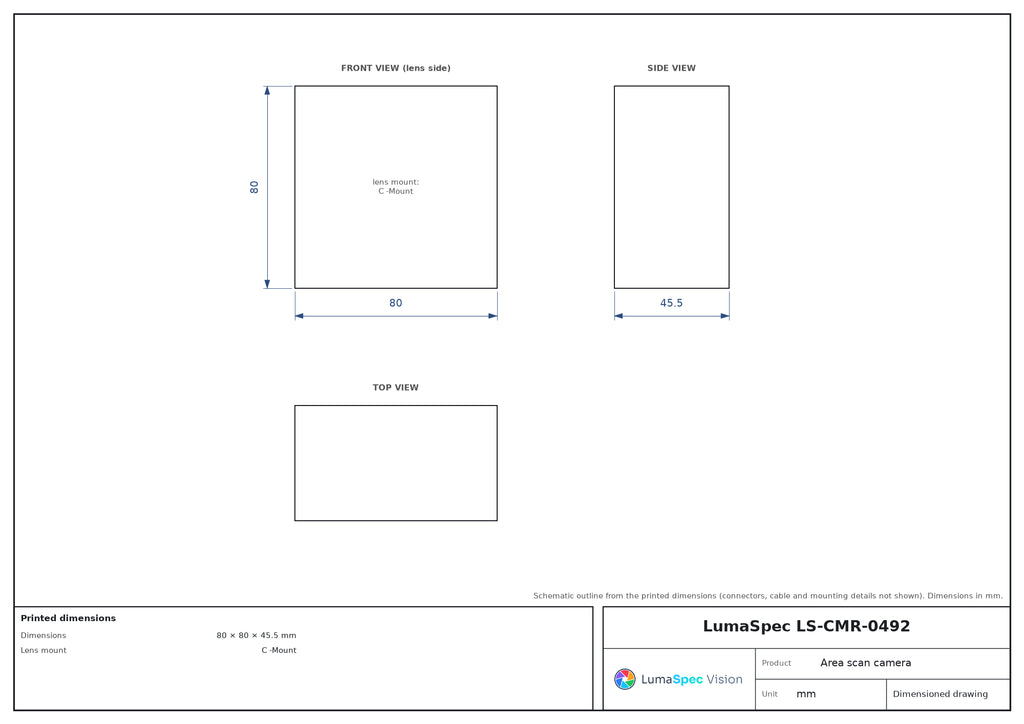

Dimensions80 × 80 × 45.5 mm (<390g)
Shipping weight3.00 kg
