Coaxial lights
High precision coaxial light, 134 x 110 x 112 mm (LS-CXL-0040)
Model LS-CXL-0040-R
- ColourRed, Blue, Green, White
- SizeL 134 × W 110 × H 112 mm
- Voltage24 V
- Power24.5 W/32.4 W
Ships in 2-3 weeks
1.0 kg shipping weight
By placing an order you agree to our Terms of Service, Shipping Policy and Refund Policy. Ship and delivery dates are estimates and are not guaranteed.
Volume pricing, Net 30 terms or a formal quote for purchasing?
lumaspecvision.com/products/lumaspec-ls-cxl-0040
This coaxial light has a 134 x 110 mm housing (LS-CXL-0040), the second-largest of the 11 sizes in its series, for larger fields of view. It also has a rated power of 24.5 W/32.4 W.
High precision cube spectrometer to instead of plate spectrometer, high inspection precision. More suitable for tiny object inspection. Compact structure, suitable for limited space environment.
Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy
Specifications
General
| Model | LS-CXL-0040-R |
|---|---|
| Viewport (camera hole) | 100 x 76 mm |
Interfaces and I/O
| Cable polarity | 1: +, 2: NC, 3: - |
|---|
Electrical
| Voltage | 24 V |
|---|---|
| Power | 24.5 W/32.4 W |
| Input voltage | 24 V DC (max) |
Mechanical
| Dimension | L 134 × W 110 × H 112 mm |
|---|---|
| Mounting holes | 4-M3 depth 4.5 |
| Shipping weight | 1.00 kg |
Downloads
Size
To scale, from the printed dimensionsFeatures of the LS-CXL-0040
- Draws about 1.3 A at 24 V at full power: needs a controller channel or supply of 32.4 W or more
- For a larger housing, step up to the 154 x 130 mm version
- 134 x 110 x 112 mm housing, mounting 4-M3 depth 4.5
Shared by the whole High precision coaxial light (LS-CXL-S08) series2 points
- More suitable for tiny object inspection
- Compact structure, suitable for limited space environment
Applications
- The damage inspection of the chip, wafer
- The scratch of reflective surface
- Bar code, QR code recognition
- Printing, silk-screen inspection
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Build a system with this partConfigure a systemAsk an engineer
Engineering data
Drive and fit the LS-CXL-0040
Mounting and installation
| Mounting holes | 4 × M3, 4.5 mm deep |
|---|
Compatible parts
Fits with this part
Checked with the configurator's fit rules: supply voltage and drive type, and the light's power against the controller's power per channel wherever both are printed.
Complete the setup
This part with the first fit-tested pick from each group below. Swap any of them for another card further down.
-
This partHigh precision coaxial light, 134 x 110 x 112 mm (LS-CXL-0040)LS-CXL-0040-R · Red
$689.00
-
Controllers for this light
Analog controller, 1 ch, 60 W (LS-CTL-0012)
$219.00
Set total $908.00
Added to your quote list.
Controllers for this light
This 32.4 W light uses 54 % of one 60 W channel
2 channel digital LED light controller, 2 A, 2 ch
LS-CTL-0552
- Channels 2
- Output 24 V
$269.00
Ships in 2-3 weeks
This 32.4 W light uses 68 % of one channel (about 48 W, from the rated output)
ABS digital light source controller, 4 ch, 200 W, 90 x 93.4 mm
LS-CTL-0521
- Channels 4
- Output 24 V
$539.00
Ships in 2-3 weeks
This 32.4 W light uses 65 % of one channel (about 50 W, from the rated output)

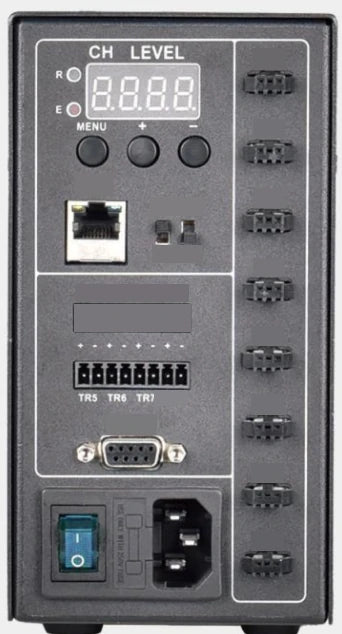

Ethernet digital controller, 8 ch, 400 W
LS-CTL-0426
- Channels 8
- Output Constant voltage 24 V
$1,139.00
Ships in 2-3 weeks
This 32.4 W light uses 65 % of one channel (about 50 W, from the rated output)
External power digital controller, 16 ch
LS-CTL-0422
- Channels 16
- Output Constant voltage 24 V
$1,599.00
Ships in 2-3 weeks
This 32.4 W light uses 68 % of one channel (about 48 W, from the rated output)
This 32.4 W light uses 54 % of one 60 W channel
Application studies
Applications for this type of part
Real camera images from lighting and optics application tests, with the parts of each setup and why they were chosen.
Set up with the LS-CXL-0032, a model of this series
Electronics and devices
Phone-shell scratches under precision coaxial light
Control the reflected field before setting a scratch threshold.Proposed light housing (spec)41 × 30 × 24 mmExplore the study
Set up with the LS-CXL-0184, the same type of part
Metal parts and machining
Reflective mirror-surface appearance
Prove a local defect signal before interpreting a reflected brightness pattern.Light in sourceLS-CXL-0184 · whiteExplore the study
Set up with the LS-CXL-0185, the same type of part
Electronics and devices
Electrode solder joints
Count and compare the joint rings under even coaxial light.Light in sourceLS-CXL-0185 · whiteExplore the study
Before you buy
Questions about the LS-CXL-0040
Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.
Which controller drives the LS-CXL-0040?
Fit-tested at its highest rated power, 32.4 W: LS-CTL-0012 (60 W per channel, about 46 % headroom), LS-CTL-0552 (about 48 W per channel, about 32 % headroom), LS-CTL-0521 (about 50 W per channel, about 35 % headroom) and LS-CTL-0426 (about 50 W per channel, about 35 % headroom).
What supply voltage and power does the LS-CXL-0040 need?
It runs on 24 V. The power is 24.5 W in red and 32.4 W in blue, green or white. That is about 1.35 A at 32.4 W on 24 V (calculated).
Can I return the LS-CXL-0040?
Yes: 90 days from delivery, no restocking fee, and a free US return label. International buyers pay return shipping unless the item is defective or our error.
Learn
Guides for this part
Engineering guides picked for the LS-CXL-0040: how to choose it, set it up and get a better image.
Other models in the High precision coaxial light (LS-CXL-S08) series
See all 11 models in the seriesHow this model compares
- Compared with LS-CXL-0039: power 24.5 W/32.4 W here, 15.2 W/21.6 W there; viewport (camera hole) 100 x 76 mm here, 80 x 70 mm there.
Swipe to see all columns
| Model | Viewport (camera hole) | Size | Power | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-CXL-0033 | 20 x 16 mm | L 54 × W 30 × H 30 mm | 1.5 W/1.5 W | $239.00 | Ships in 2-3 weeks | View |
| LS-CXL-0035 | 30 x 30 mm | L 64 × W 40 × H 40 mm | 2.9 W/4.4 W | $279.00 | Ships in 2-3 weeks | View |
| LS-CXL-0036 | 40 x 33 mm | L 74 × W 50 × H 50 mm | 4.4 W/4.4 W | $329.00 | Ships in 2-3 weeks | View |
| LS-CXL-0037 | 50 x 38 mm | L 84 × W 60 × H 60 mm | 6.5 W/7.2 W | $389.00 | Ships in 2-3 weeks | View |
| LS-CXL-0038 | 60 x 43 mm | L 94 × W 70 × H 70 mm | 8.7 W/10.8 W | $439.00 | Ships in 2-3 weeks | View |
| LS-CXL-0039 | 80 x 70 mm | L 114 × W 90 × H 92 mm | 15.2 W/21.6 W | $559.00 | Ships in 2-3 weeks | View |
| LS-CXL-0040This model | 100 x 76 mm | L 134 × W 110 × H 112 mm | 24.5 W/32.4 W | $689.00 | Ships in 2-3 weeks | |
| LS-CXL-0041 | 120 x 96 mm | L 154 × W 130 × H 132 mm | 34.6 W/45.4 W | $829.00 | Ships in 2-3 weeks | View |
| LS-CXL-0034 | L 55.5 × W 40 × H 34 mm | 2.9 W/4.4 W | $249.00 | Ships in 2-3 weeks | View |
