600 x 400 mm Side back light source (LS-BKL-0730)
  • 600 x 400 mm Side back light source (LS-BKL-0730)
  • LS-BKL-0730 dimensions (mm)

Representative photo of this series. Colour shown for illustration; the actual product may differ

Backlights

600 x 400 mm Side back light source (LS-BKL-0730)

Model LS-BKL-0730-R

  • ColourRed, Green, Blue, White
  • TypeEdge-lit / ultra-thin
  • Wavelength red620-630 nm
  • Wavelength green520-530 nm
  • Highest power R of the 15 models in its series: 68 W (series: 5.6 W to 68 W)
$1,459.00

Ships in 2-3 weeks

3.6 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

600 x 400 mm Side back light source (LS-BKL-0730)LS-BKL-0730-R

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-BKL-0730: luminous size 600 x 400 mm, overall H 11.5 mm, power R 68 W.

Ultra-thin side (edge-lit) backlight; light from several sides gives overall uniformity and the thin design fits tight installation spaces. Flexible sizes and convenient customization.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-0730
Optional accessoriesExtension cable
Service life (red)60000 h continuous at 25 °C, 50% illumination, to 50% decrement
Service life (white)30000 h continuous at 25 °C, 50% illumination, to 50% decrement
Overall L (mm)632
Overall W (mm)432
Overall H (mm)11.5

Light

Wavelength red620-630 nm
Wavelength green520-530 nm
Wavelength blue465-475 nm
Colour temperature white6000-6500 K
Wavelength IR850-940 nm
Wavelength UV365-405 nm
Luminous size (mm)600 x 400

Environment and compliance

Storage temperature-20 to 60 °C
Operating temperature0 to 40 °C
Humidity20-85 %RH (non-condensing)

Electrical

ControllerLS-CTL-S69 series, LS-CTL-S28 series, LS-CTL-S125 series (the selected controller should match the power of the light source)
Power R (W)68
Power G/B/W (W)79
Recommended controllerLS-CTL-S69, LS-CTL-S28, LS-CTL-S125
Supply voltage (derived)24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-S69, LS-CTL-S28

Mechanical

Shipping weight3.60 kg

Engineering data

Drive and fit the LS-BKL-0730

Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.

Supply24 V DC
Current at 24 VRed: 2833 mAGreen / Blue / White: 3292 mACalculated: printed power ÷ supply voltage
Controller channel it needs24 V constant voltage, at least 79 W
Emitting area600 × 400 mmKeep the camera's field of view inside it for an even background.
Operating temperature0 to 40 °C

Mounting and installation

MountingSee the dimension drawing, Hole positions are not given in the written specifications

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

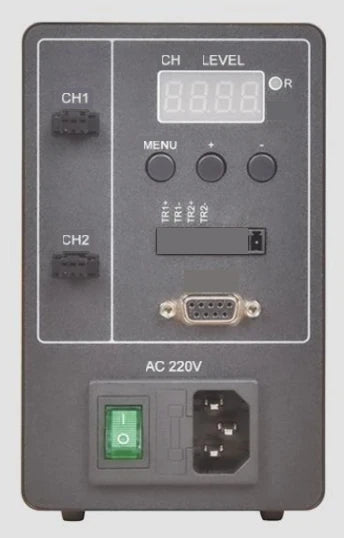

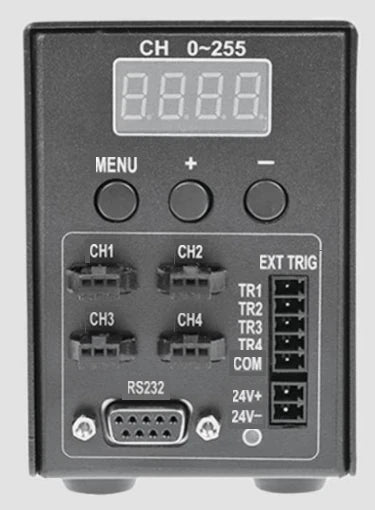

Controllers for this light

120 W per channel at 24 V for this 79 W light

80 W per channel at 24 V for this 79 W light

120 W per channel at 24 V for this 79 W light

80 W per channel at 24 V for this 79 W light

100 W per channel at 24 V for this 79 W light

100 W per channel at 24 V for this 79 W light

Other models in the Side back light source (LS-BKL-S82) series

See all 15 models
  • Highest power R of the 15 models in its series: 68 W (series: 5.6 W to 68 W)
  • Highest overall L of the 15 models in its series: 632 mm (series: 82 mm to 632 mm)
  • Highest power G/B/W of the 15 models in its series: 79 W (shared with 1 other model) (series: 9 W to 79 W)
ModelSizePriceAvailabilityLink
LS-BKL-0730This model600 x 400 mm$1,459.00 Ships in 2-3 weeks
LS-BKL-071750 x 50 mm$209.00 Ships in 2-3 weeks View
LS-BKL-071870 x 70 mm$229.00 Ships in 2-3 weeks View
LS-BKL-0719100 x 100 mm$279.00 Ships in 2-3 weeks View
LS-BKL-0720150 x 100 mm$319.00 Ships in 2-3 weeks View
LS-BKL-0721150 x 150 mm$389.00 Ships in 2-3 weeks View
LS-BKL-0722200 x 150 mm$449.00 Ships in 2-3 weeks View
LS-BKL-0723200 x 200 mm$539.00 Ships in 2-3 weeks View
LS-BKL-0724268 x 168 mm$589.00 Ships in 2-3 weeks View
LS-BKL-0716250 x 200 mm$629.00 Ships in 2-3 weeks View
LS-BKL-0725300 x 200 mm$719.00 Ships in 2-3 weeks View
LS-BKL-0728450 x 350 mm$1,039.00 Ships in 2-3 weeks View
LS-BKL-0726320 x 320 mm$1,049.00 Ships in 2-3 weeks View
LS-BKL-0727400 x 300 mm$1,179.00 Ships in 2-3 weeks View
LS-BKL-0729568 x 568 mm$1,899.00 Ships in 2-3 weeks View
