CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.
Backlights
400 x 300 mm Through-Hole LED Backlight (LS-BKL-0609)
Model LS-BKL-0609-R
- ColourRed, Green, Blue, White
- Emitting area400x300 mm
- Size416x316x27 mm
- Voltage24 V
Ships in 2-3 weeks
3.25 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
LS-BKL-0609: emitting area 400x300 mm, dimensions L x W x H 416x316x27 mm, power red 56 W.
400 x 300 mm Through-Hole LED Backlight. Bottom-lit backlight (LED + diffuser) with a round central through-hole for viewing through the light, in a finned heat-dissipation housing 21-27 mm thick.
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0609 |
|---|---|
| Construction (setup diagram) | LED / housing / diffuser plate |
Light
| Emitting area (mm) | 400x300 |
|---|---|
| Colours | Red, Green, Blue, White |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power, red (W) | 56 |
| Power, white / blue / green (W) | 80 |
Mechanical
| Hole size (mm) | Φ60 |
|---|---|
| Dimensions L x W x H (mm) | 416x316x27 |
| Mounting | M3 tapped holes on back (qty per model drawing); side M3 nut slots |
| Heat sink | Finned heat-dissipation profile |
| Shipping weight (estimated) | 3.25 kg |
Mounting and drawing data
Drawing: outer 416x316x27, opening Φ60 / Φ70 ring, 8-M3 depth 5 (bottom) at 125/375 x 307, cable 3000
Engineering data
Drive and fit the LS-BKL-0609
Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.
Mounting and installation
| Mounting holes | 8 × M3, 5 mm deep, on the back |
|---|---|
| Mounting | T-slot / nut channel, Slots take M3 nuts |
| Viewing opening | Ø 60 mm |
| Cable | 3 m |
As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.
Compatible parts
Fits with this part
Checked with the configurator's fit rules: supply voltage, drive type and the light's power against the controller's power per channel.

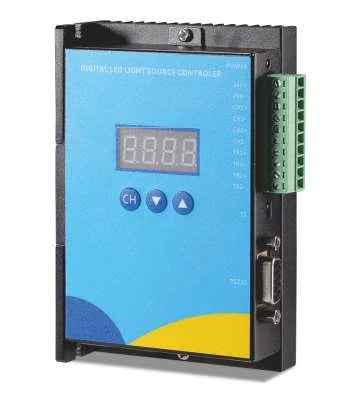

Controllers for this light
100 W per channel at 24 V for this 80 W light
100 W per channel at 24 V for this 80 W light
Mini digital controller 3.0, 4 ch, 120 W
LS-CTL-0237
- Channels 4
- Output Constant voltage 24 V
$349.00
Ships in 2-3 weeks
80 W per channel at 24 V for this 80 W light
120 W per channel at 24 V for this 80 W light
Constant current controller, 1 ch, 120 W, for 24 V lights
LS-CTL-0181
- Channels 1
- Output 24 V
$249.00
Ships in 2-3 weeks
120 W per channel at 24 V for this 80 W light
150 W per channel at 24 V for this 80 W light
Application studies
Applications for this type of part
Real camera images from lighting and optics application tests, with the parts of each setup and why they were chosen.
Set up with the LS-BKL-0586, the same type of part
Electronics and devices
Bent pins on connectors and boards
Separate real pin lean from perspective.Field of view50.46 × 37.85 mmExplore the study
Set up with the LS-BKL-1300, the same type of part
Packaging, labels and print
Foreign matter in a bottle bottom
Build the clean-bottle variation into the test before setting a dark-spot threshold.MethodTransmitted white backlightExplore the study
Set up with the LS-BKL-0800, the same type of part
Food, pharma and agriculture
Cake tray surface specks
Light the whole tray evenly and judge specks against real batch variation.Light in sourceLS-BKL-0800 · whiteExplore the study
LS-BKL-0609
See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Emitting area (mm)
- 400x300
- Voltage (V)
- 24
- Outer size L x W x H (mm)
- 416x316x27
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
Other models in the Bottom Back Light with Hole (LS-BKL-S72) series
See all 12 models| Model | Emitting area | Size | Price | Availability | Link |
|---|---|---|---|---|---|
| LS-BKL-0609This model | 400x300 mm | 416x316x27 mm | $1,349.00 | Ships in 2-3 weeks | |
| LS-BKL-0600 | 110x110 mm | 124x124x21 mm | $339.00 | Ships in 2-3 weeks | View |
| LS-BKL-0602 | 200x100 mm | 214x114x22 mm | $419.00 | Ships in 2-3 weeks | View |
| LS-BKL-0601 | 150x150 mm | 164x164x21 mm | $439.00 | Ships in 2-3 weeks | View |
| LS-BKL-0603 | 200x200 mm | 214x214x22 mm | $619.00 | Ships in 2-3 weeks | View |
| LS-BKL-0604 | 300x200 mm | 316x216x22 mm | $819.00 | Ships in 2-3 weeks | View |
| LS-BKL-0605 | 300x200 mm | 316x216x22 mm | $819.00 | Ships in 2-3 weeks | View |
| LS-BKL-0608 | 400x200 mm | 416x214x21 mm | $989.00 | Ships in 2-3 weeks | View |
| LS-BKL-0606 | 300x300 mm | 316x316x22 mm | $1,079.00 | Ships in 2-3 weeks | View |
| LS-BKL-0607 | 300x300 mm | 316x316x22 mm | $1,079.00 | Ships in 2-3 weeks | View |
| LS-BKL-0610 | 400x400 mm | 416x416x27 mm | $1,179.00 | Ships in 2-3 weeks | View |
| LS-BKL-0611 | 400x400 mm | 416x416x27 mm | $1,179.00 | Ships in 2-3 weeks | View |
