400 x 400 mm Through-Hole LED Backlight, Φ50 opening (LS-BKL-0610)
Model LS-BKL-0610
- ColourRed, Green, Blue, White
- Emitting area400x400 mm
- Size416x416x27 mm
- Voltage24 V
- Power108 W
$1,179.00
Ships in 2-3 weeks
4.1 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
400 x 400 mm Through-Hole LED Backlight. Bottom-lit backlight (LED + diffuser) with a round central through-hole for viewing through the light, in a finned heat-dissipation housing 21-27 mm thick.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0610 |
|---|---|
| Construction (setup diagram) | LED / housing / diffuser plate |
Light
| Emitting area (mm) | 400x400 |
|---|---|
| Colours | Red, Green, Blue, White |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 72 |
| Power W/B/G (W) | 108 |
Mechanical
| Hole size (mm) | Φ50 |
|---|---|
| Outer size L x W x H (mm) | 416x416x27 |
| Mounting | M3 tapped holes on back (qty per model drawing); side M3 nut slots |
| Heat sink | Finned heat-dissipation profile |
| Shipping weight (estimated) | 4.10 kg |
Photo shows a representative model of this series; see the specifications for this model.

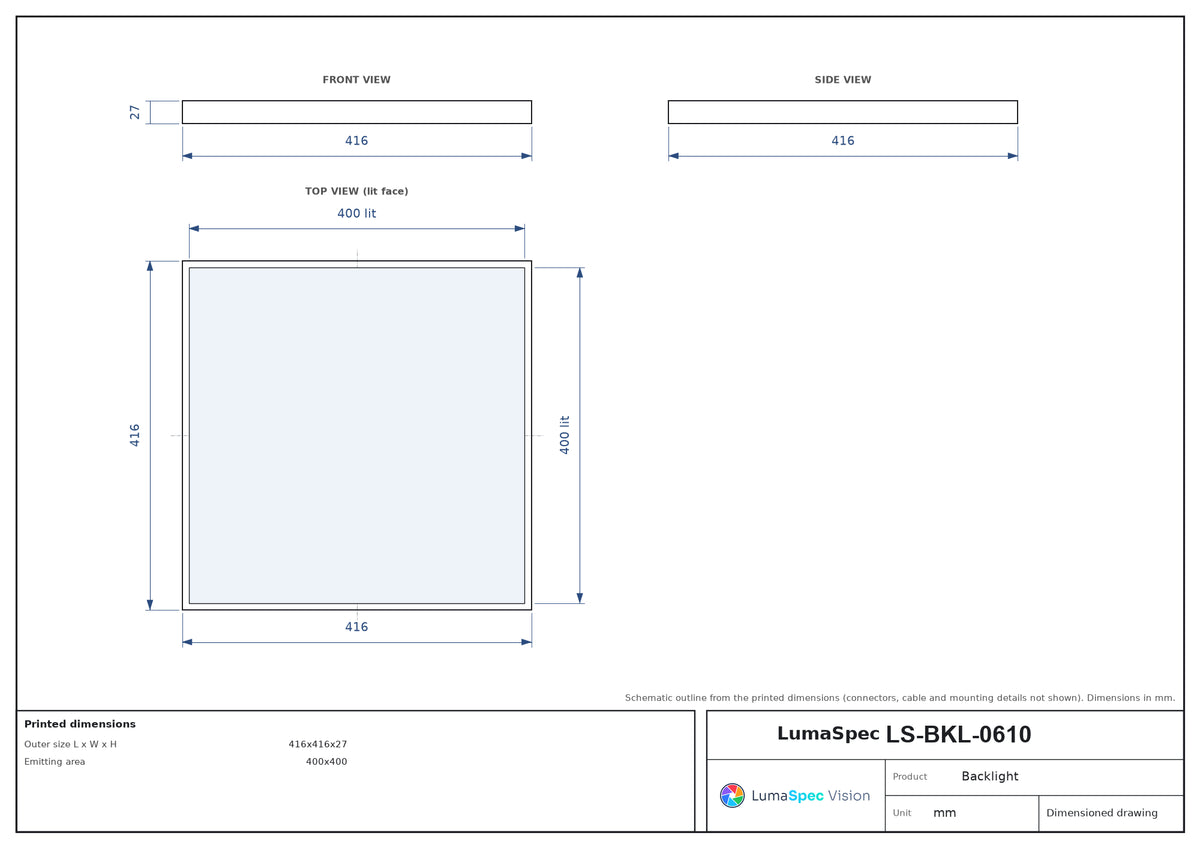

Mounting and drawing data
no individual drawing in
