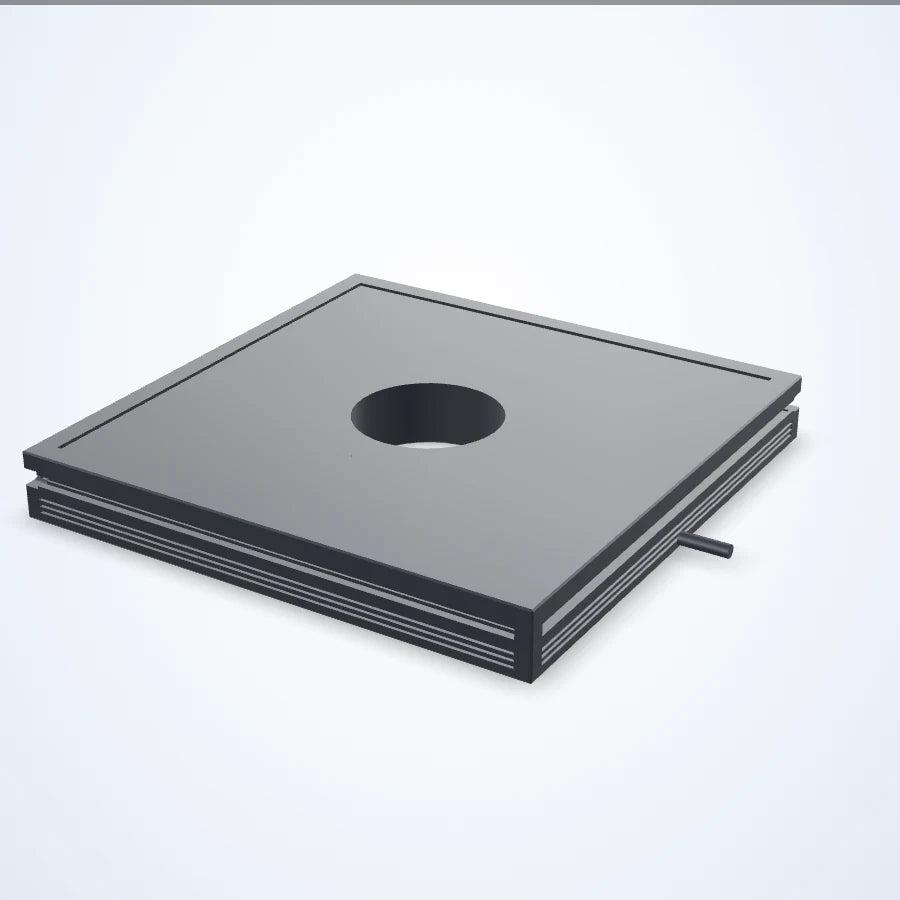

  • LS-BKL-0601 3D render

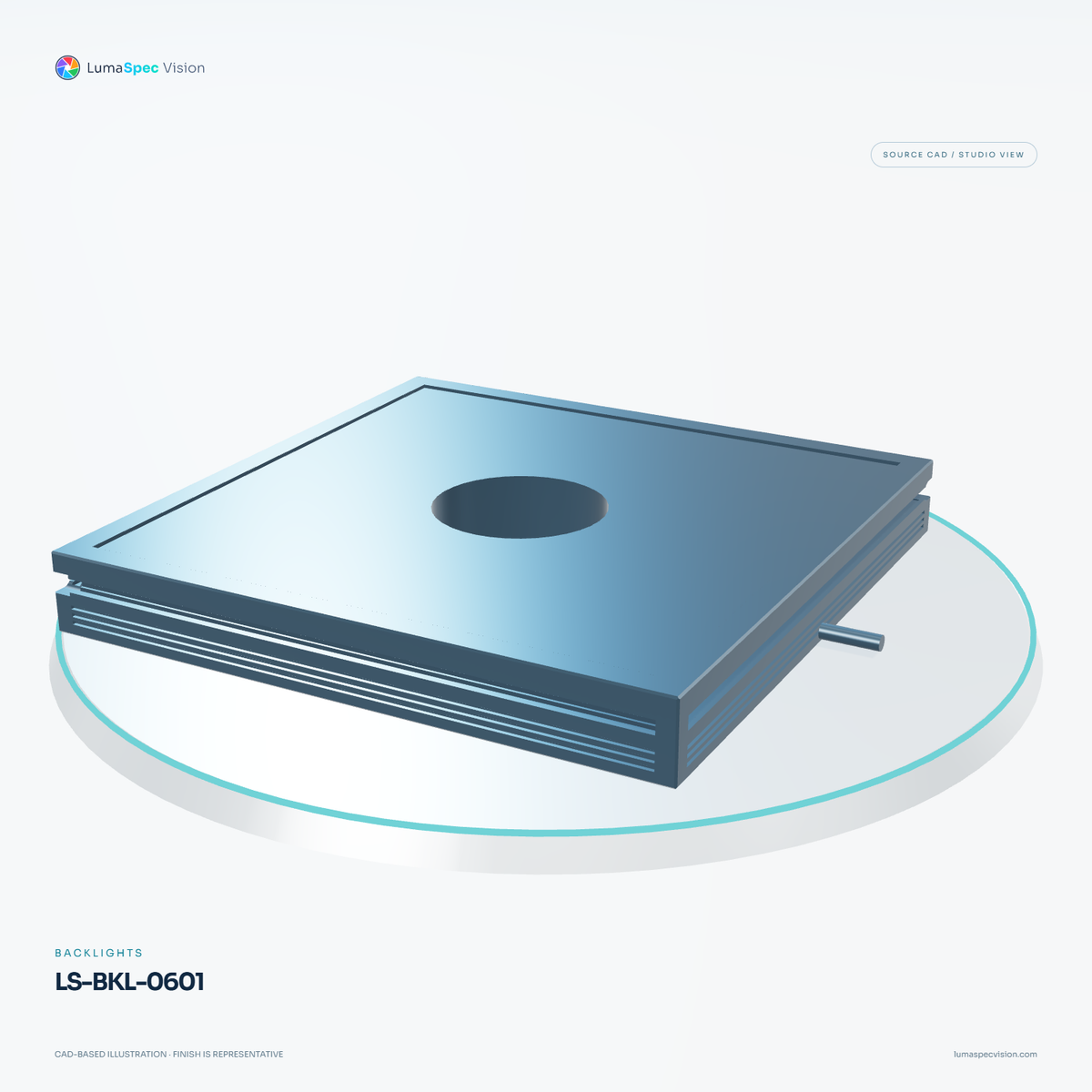

  • LS-BKL-0601 — Backlights, 3D view 1. CAD-based illustration; finish is representative.

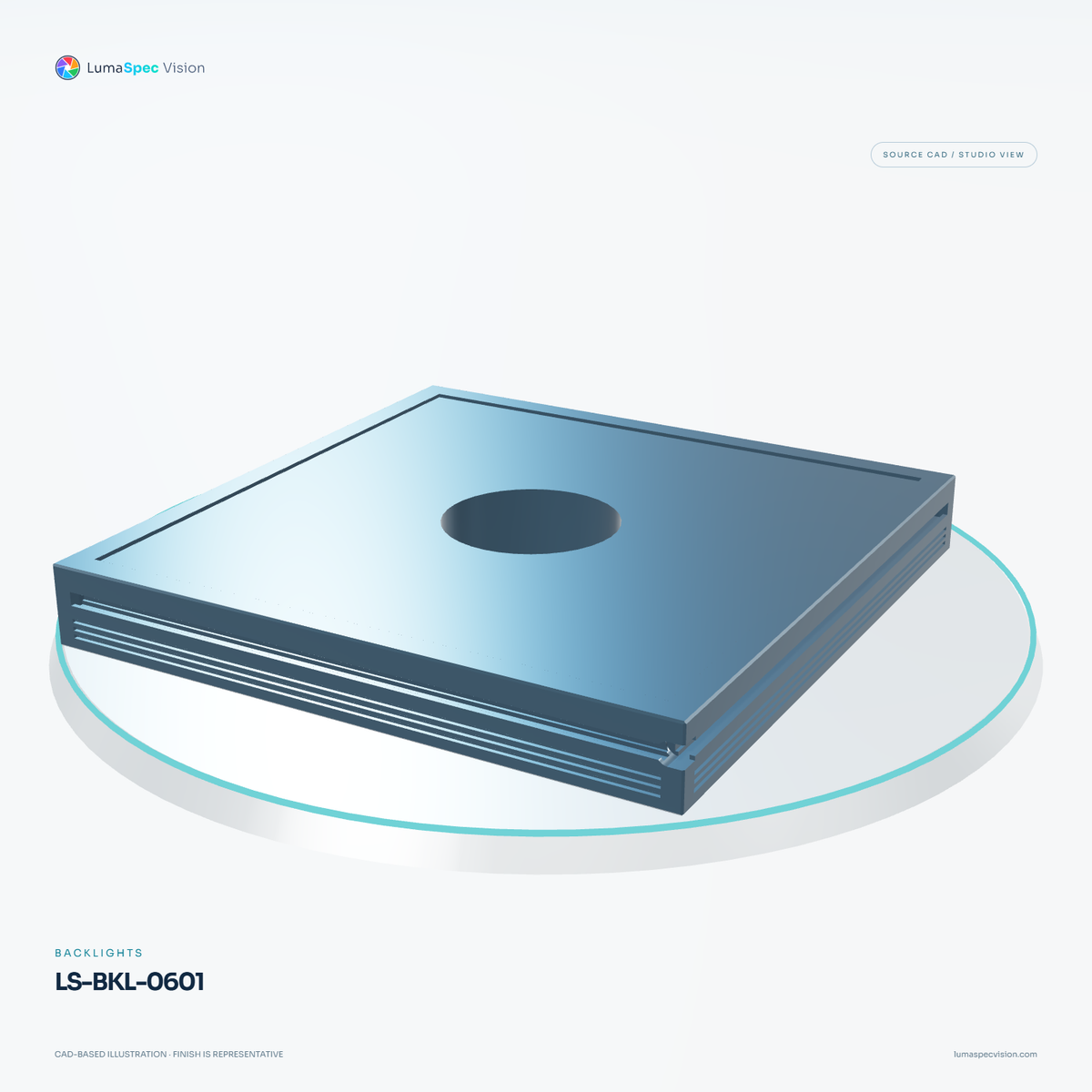

  • LS-BKL-0601 — Backlights, 3D view 2. CAD-based illustration; finish is representative.

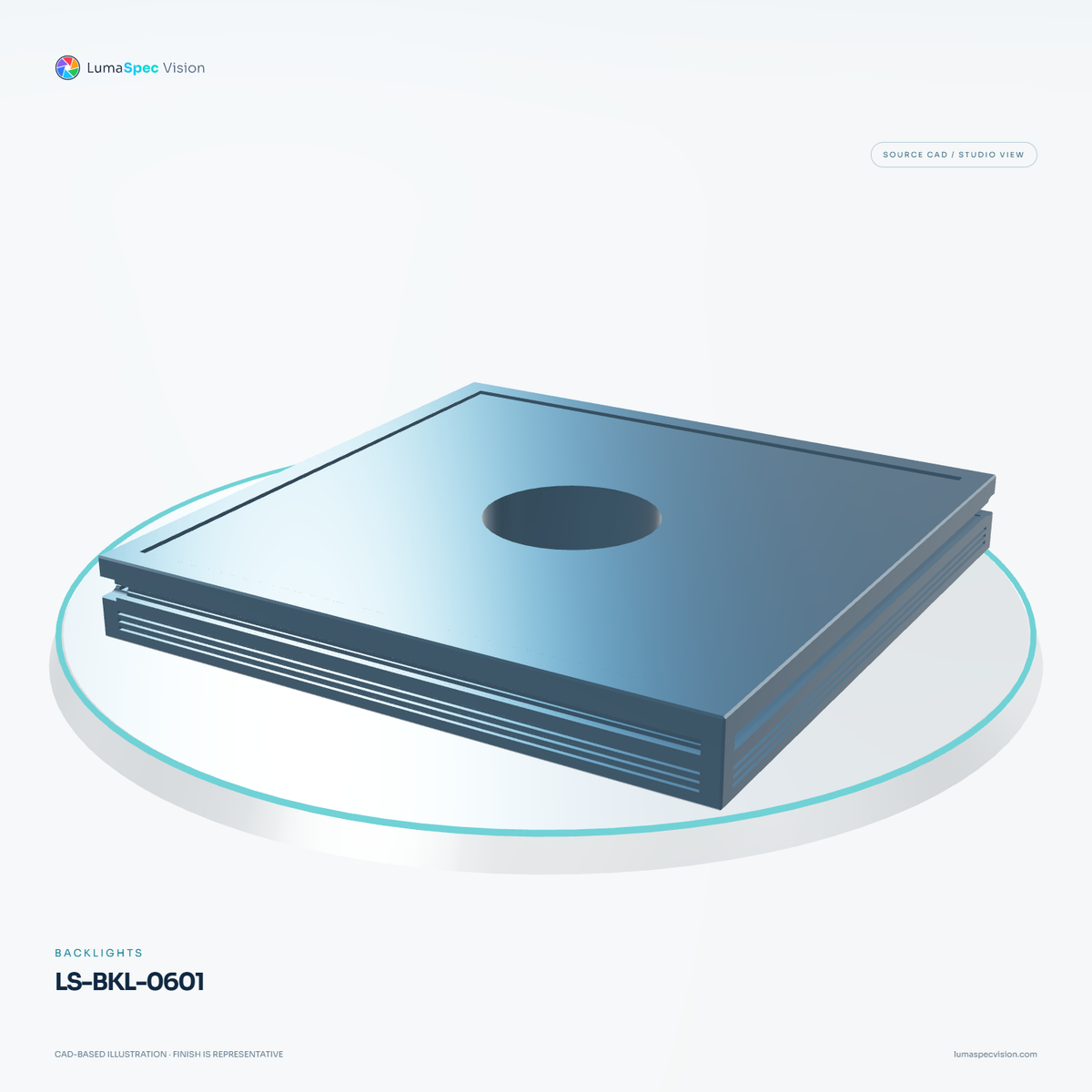

  • LS-BKL-0601 — Backlights, 3D view 3. CAD-based illustration; finish is representative.
  • LS-BKL-0601 dimensions (mm)

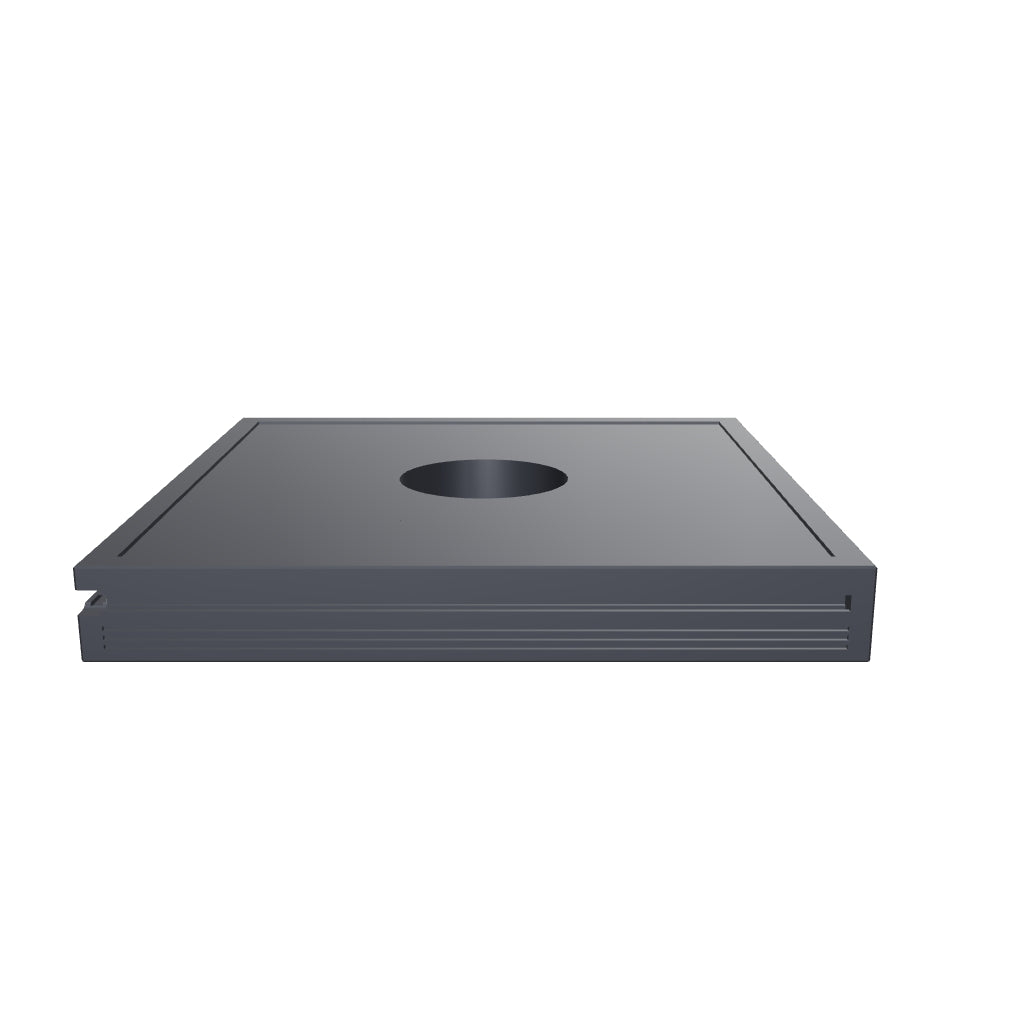

  • LS-BKL-0601 3D model

CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.

Backlights

150 x 150 mm Through-Hole LED Backlight (LS-BKL-0601)

Model LS-BKL-0601

  • ColourRed, Green, Blue, White
  • Emitting area150x150 mm
  • Size164x164x21 mm
  • Voltage24 V
  • Power21 W
$439.00

Ships in 2-3 weeks

0.8 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

150 x 150 mm Through-Hole LED Backlight (LS-BKL-0601)LS-BKL-0601

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

150 x 150 mm Through-Hole LED Backlight. Bottom-lit backlight (LED + diffuser) with a round central through-hole for viewing through the light, in a finned heat-dissipation housing 21-27 mm thick.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-0601
Construction (setup diagram)LED / housing / diffuser plate

Light

Emitting area (mm)150x150
ColoursRed, Green, Blue, White

Electrical

Voltage (V)24
Power R (W)15
Power W/B/G (W)21

Mechanical

Hole size (mm)Φ45
Outer size L x W x H (mm)164x164x21
MountingM3 tapped holes on back (qty per model drawing); side M3 nut slots
Heat sinkFinned heat-dissipation profile
Shipping weight (estimated)0.80 kg

Mounting and drawing data

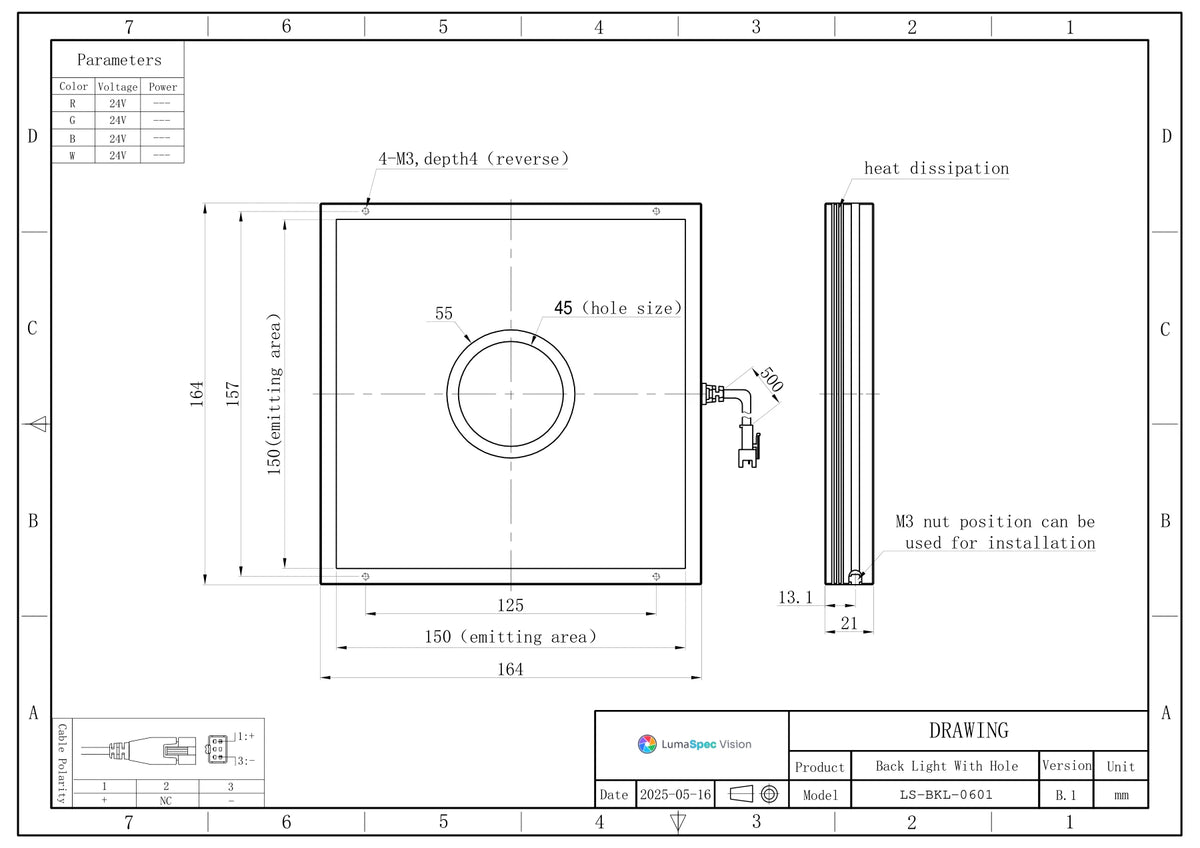

drawing: outer 164x164x21, hole Φ45 / Φ55 ring, 4-M3 depth 4 (reverse) at 125 x 157, side M3 nut slots usable for mounting (13.1 from face), cable 500

LS-BKL-0601

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-BKL-0601 — Backlights, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Emitting area (mm)
150x150
Voltage (V)
24
Outer size L x W x H (mm)
164x164x21

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.

Other models in the Bottom Back Light with Hole (LS-BKL-S72) series

See all 12 models
ModelSize / key dataPriceAvailabilityLink
LS-BKL-0600 110 x 110 mm $339.00 Ships in 2-3 weeks View
LS-BKL-0602 200 x 100 mm $419.00 Ships in 2-3 weeks View
LS-BKL-0603 200 x 200 mm $619.00 Ships in 2-3 weeks View
LS-BKL-0604 300 x 200 mm $819.00 Ships in 2-3 weeks View
LS-BKL-0605 300 x 200 mm $819.00 Ships in 2-3 weeks View
LS-BKL-0608 400 x 200 mm $989.00 Ships in 2-3 weeks View
LS-BKL-0606 300 x 300 mm $1,079.00 Ships in 2-3 weeks View
LS-BKL-0607 300 x 300 mm $1,079.00 Ships in 2-3 weeks View
LS-BKL-0610 400 x 400 mm $1,179.00 Ships in 2-3 weeks View
LS-BKL-0611 400 x 400 mm $1,179.00 Ships in 2-3 weeks View
LS-BKL-0609 400 x 300 mm $1,349.00 Ships in 2-3 weeks View
