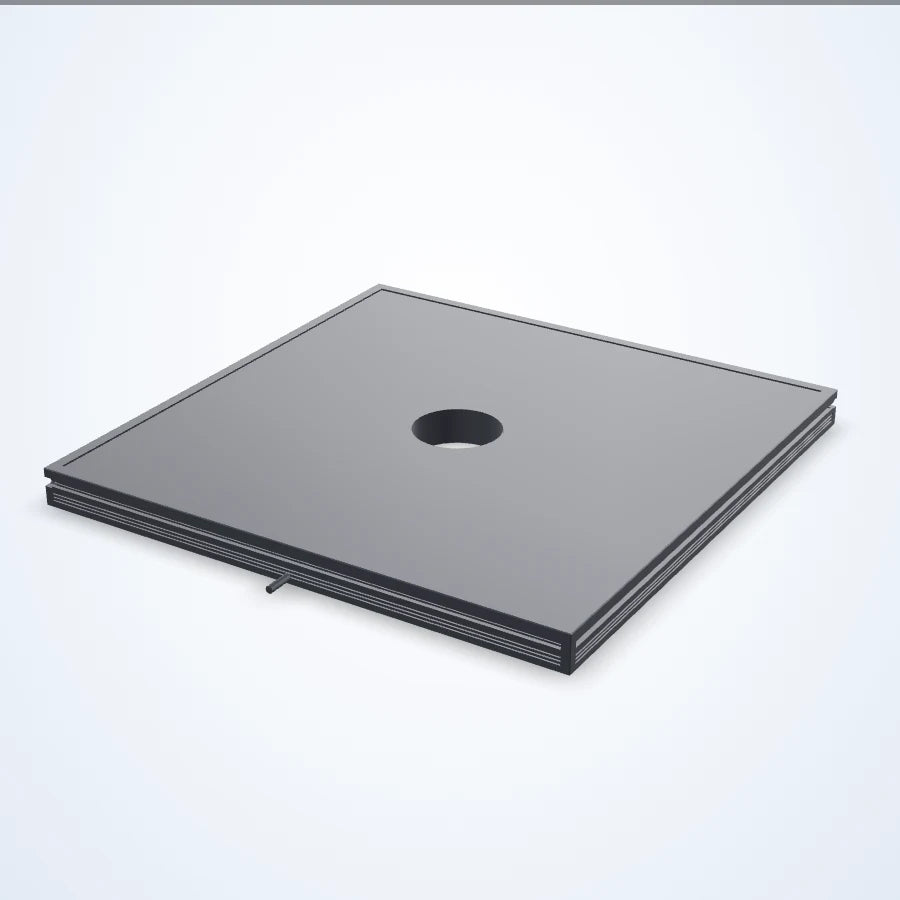

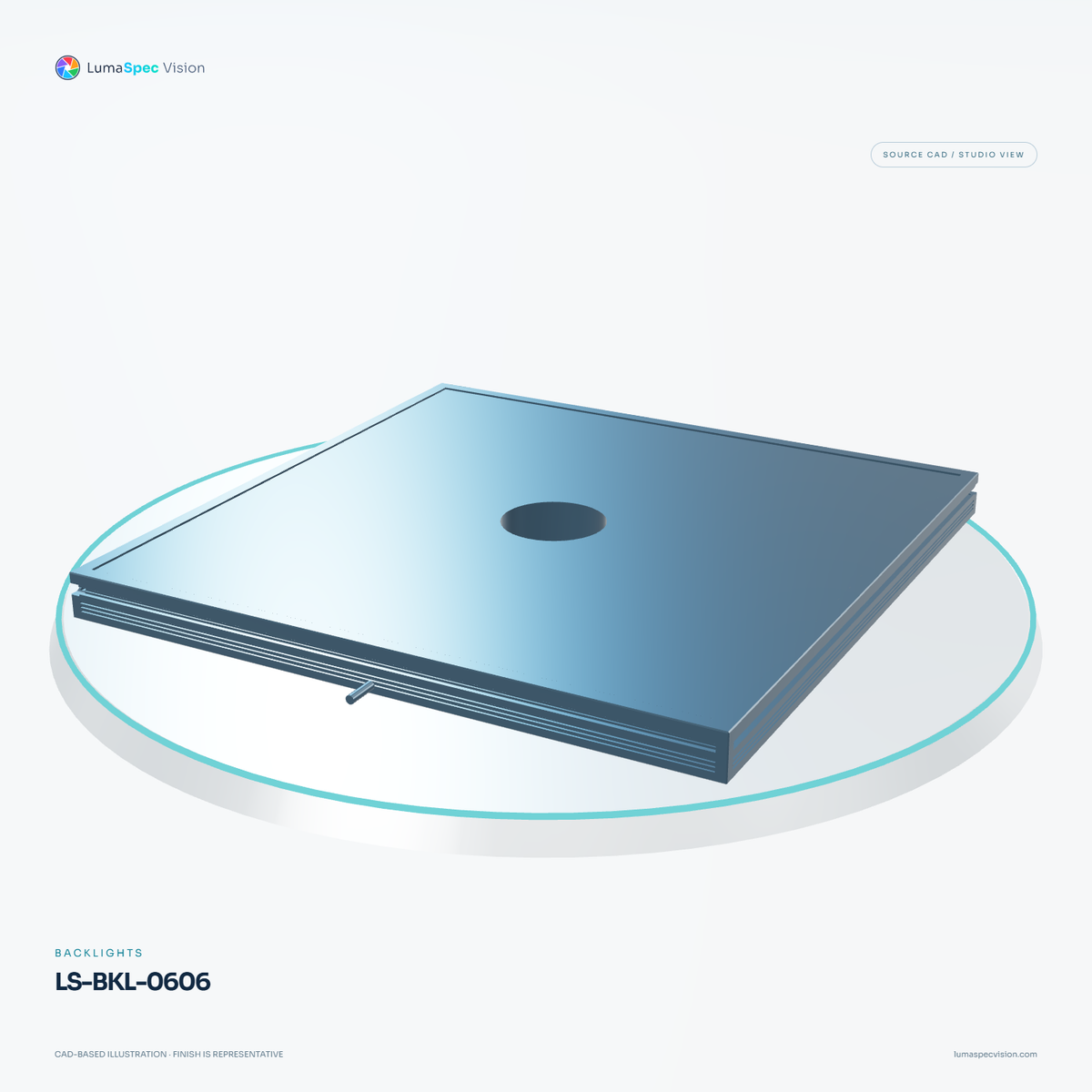

  • LS-BKL-0606 — Backlights, 3D view 1. CAD-based illustration; finish is representative.

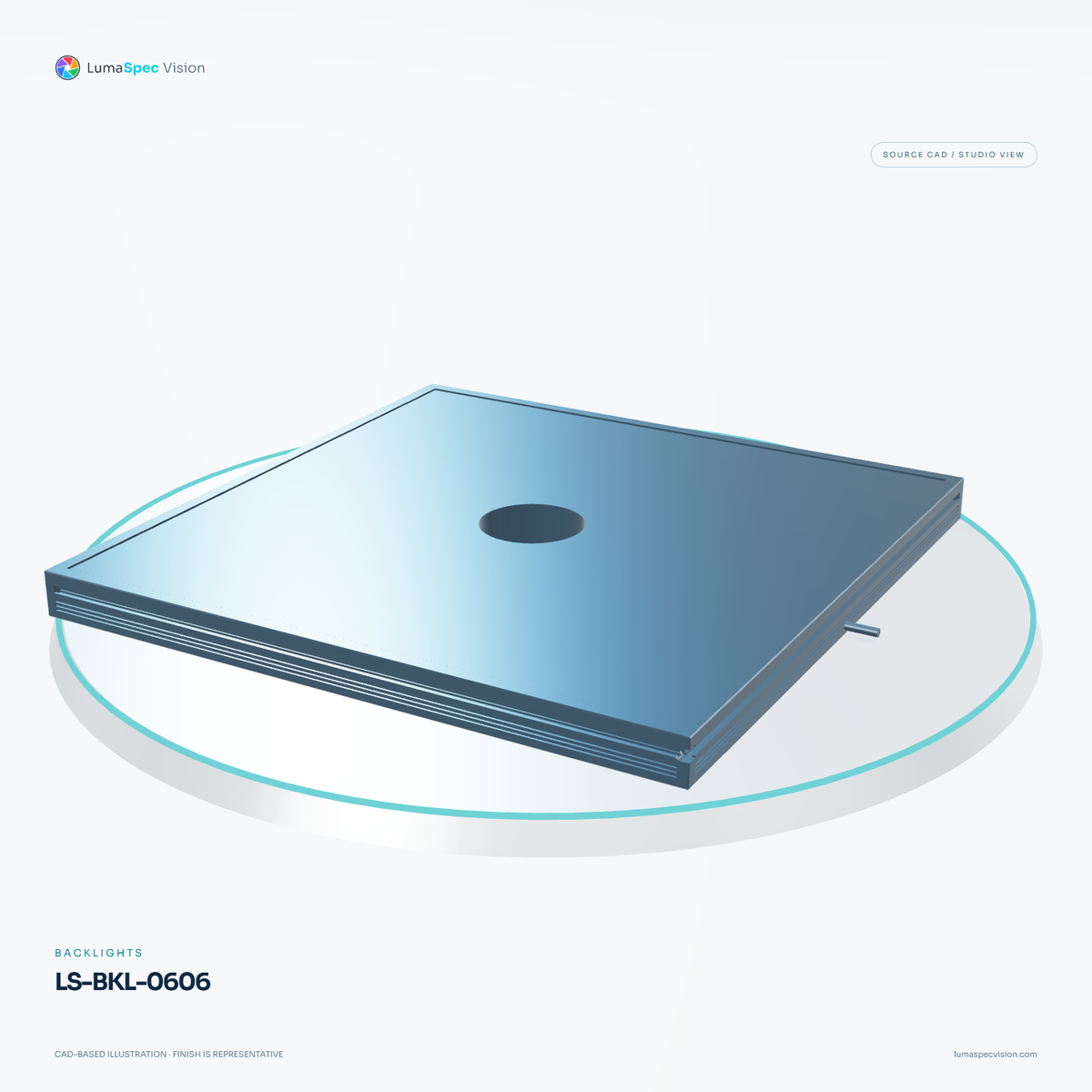

  • LS-BKL-0606 — Backlights, 3D view 2. CAD-based illustration; finish is representative.

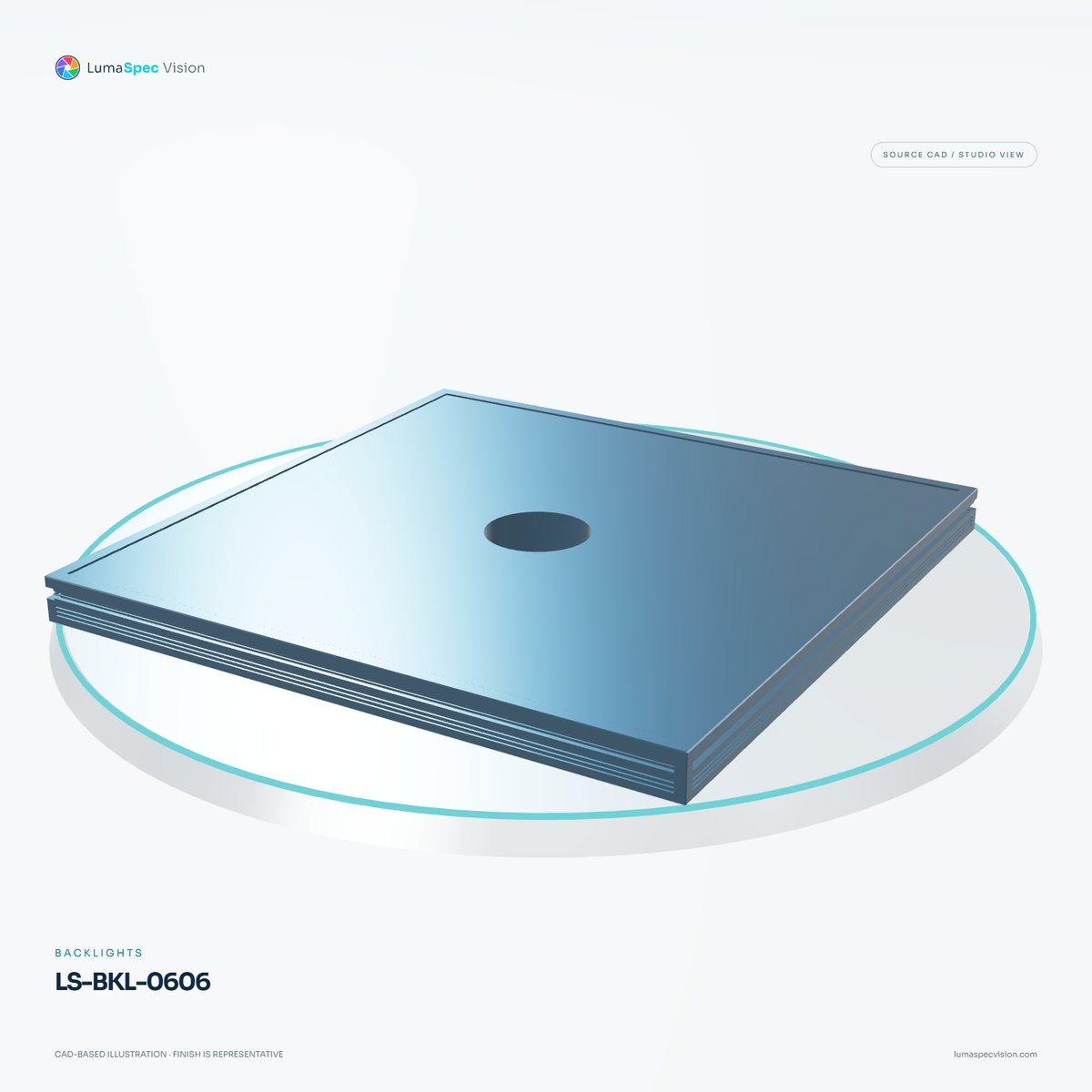

  • LS-BKL-0606 — Backlights, 3D view 3. CAD-based illustration; finish is representative.

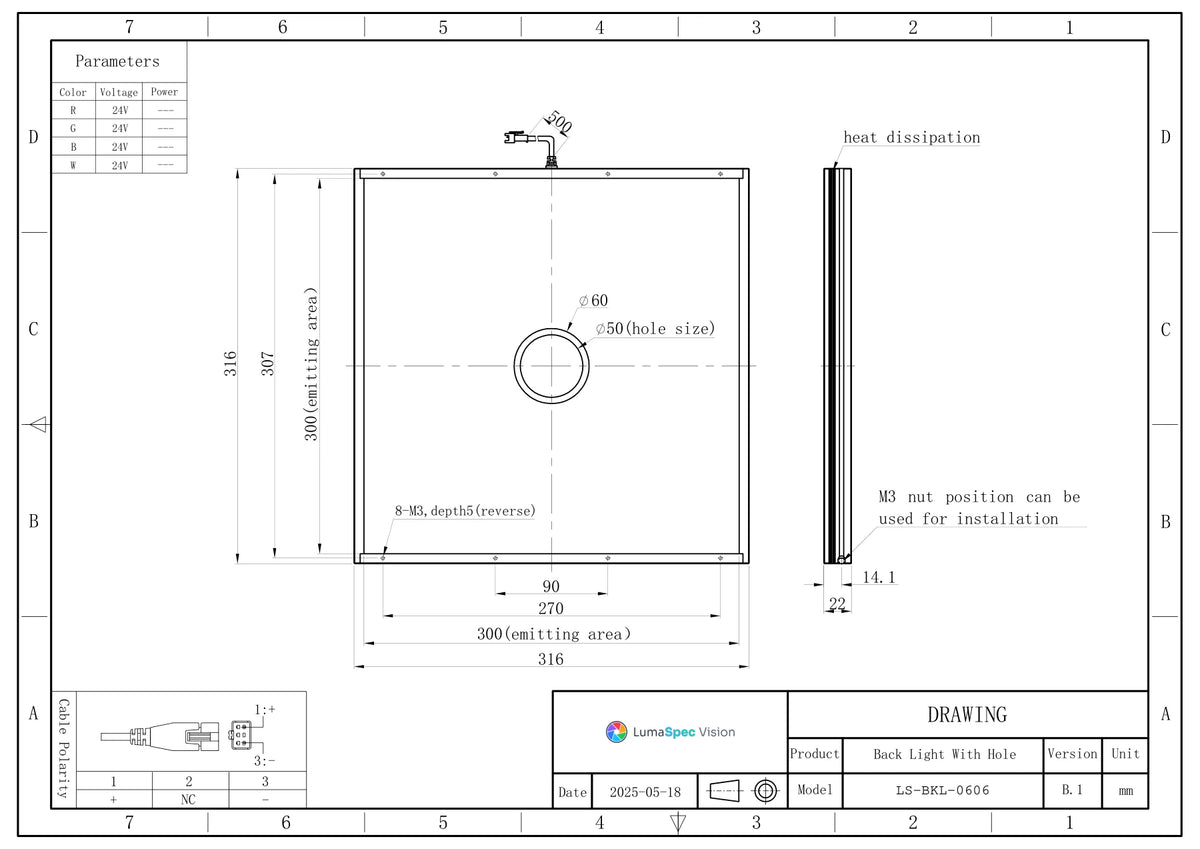

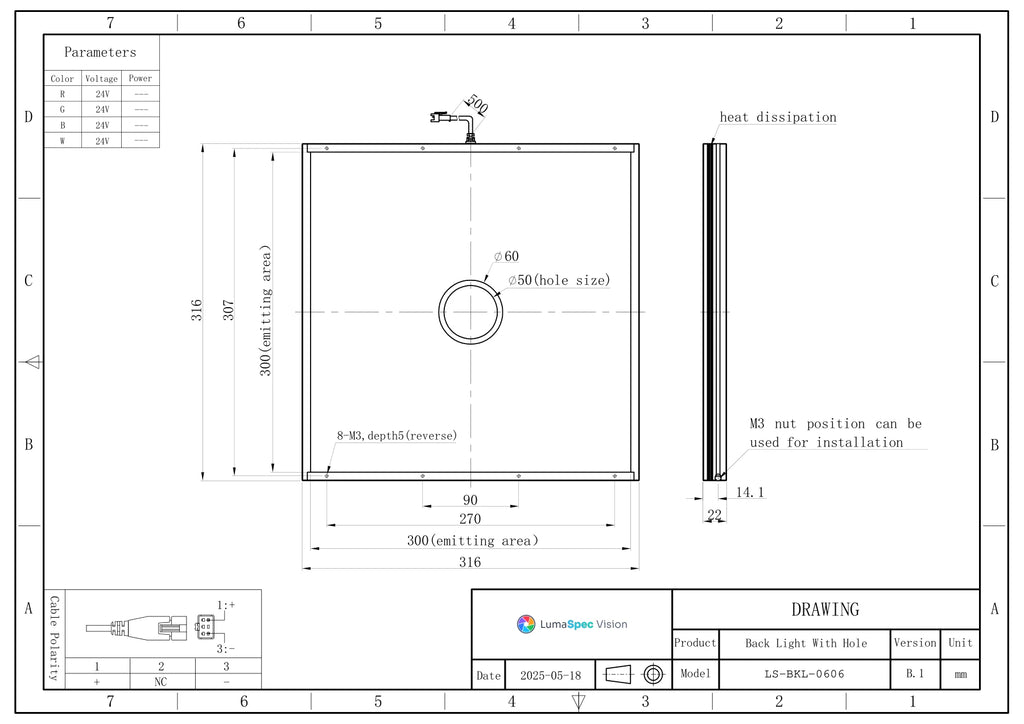

  • LS-BKL-0606 dimensions (mm)

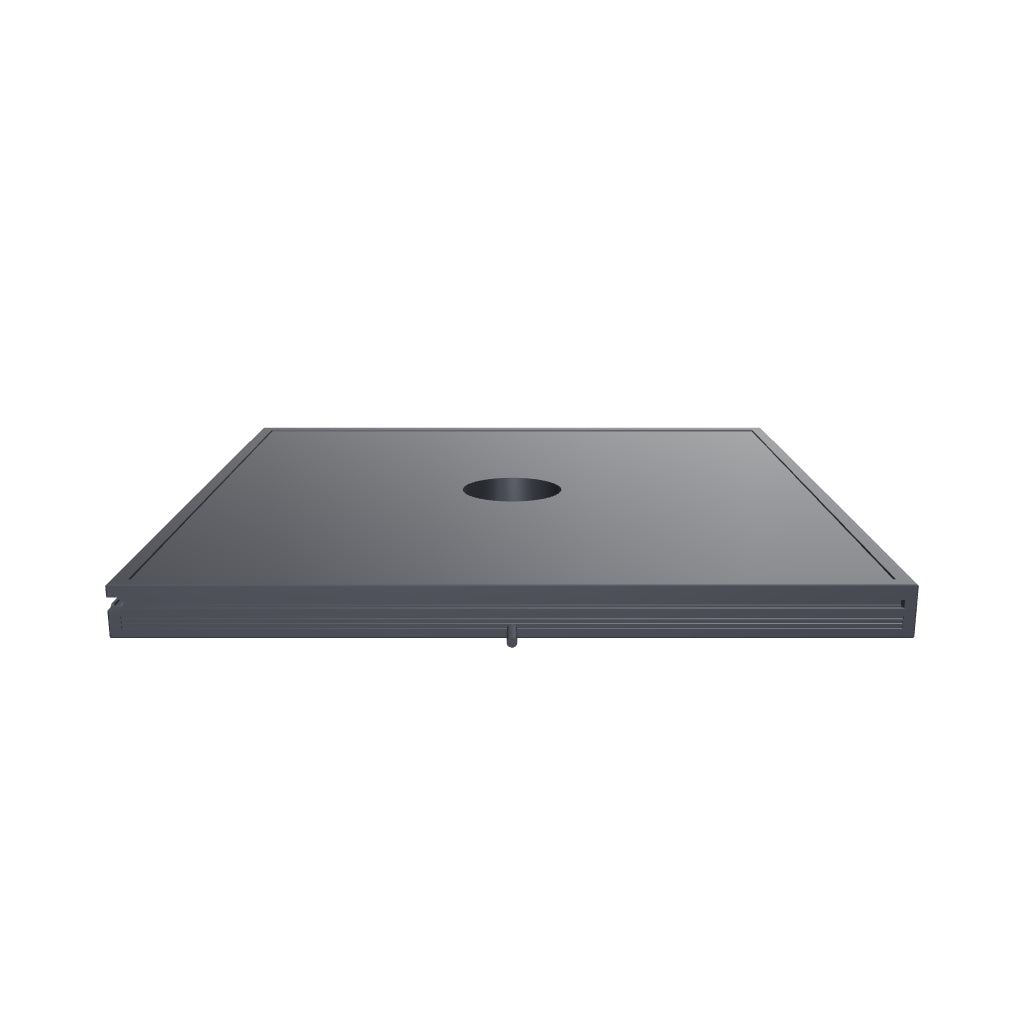

  • LS-BKL-0606 3D model

CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.

Backlights

300 x 300 mm Through-Hole LED Backlight, Φ50 opening (LS-BKL-0606)

Model LS-BKL-0606

  • ColourRed, Green, Blue, White
  • Emitting area300x300 mm
  • Size316x316x22 mm
  • Voltage24 V
  • Power65 W
$1,079.00

Ships in 2-3 weeks

2.45 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

300 x 300 mm Through-Hole LED Backlight, Φ50 opening (LS-BKL-0606)LS-BKL-0606

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

300 x 300 mm Through-Hole LED Backlight. Bottom-lit backlight (LED + diffuser) with a round central through-hole for viewing through the light, in a finned heat-dissipation housing 21-27 mm thick.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-0606
Construction (setup diagram)LED / housing / diffuser plate

Light

Emitting area (mm)300x300
ColoursRed, Green, Blue, White

Electrical

Voltage (V)24
Power R (W)45
Power W/B/G (W)65

Mechanical

Hole size (mm)Φ50
Outer size L x W x H (mm)316x316x22
MountingM3 tapped holes on back (qty per model drawing); side M3 nut slots
Heat sinkFinned heat-dissipation profile
Shipping weight (estimated)2.45 kg
