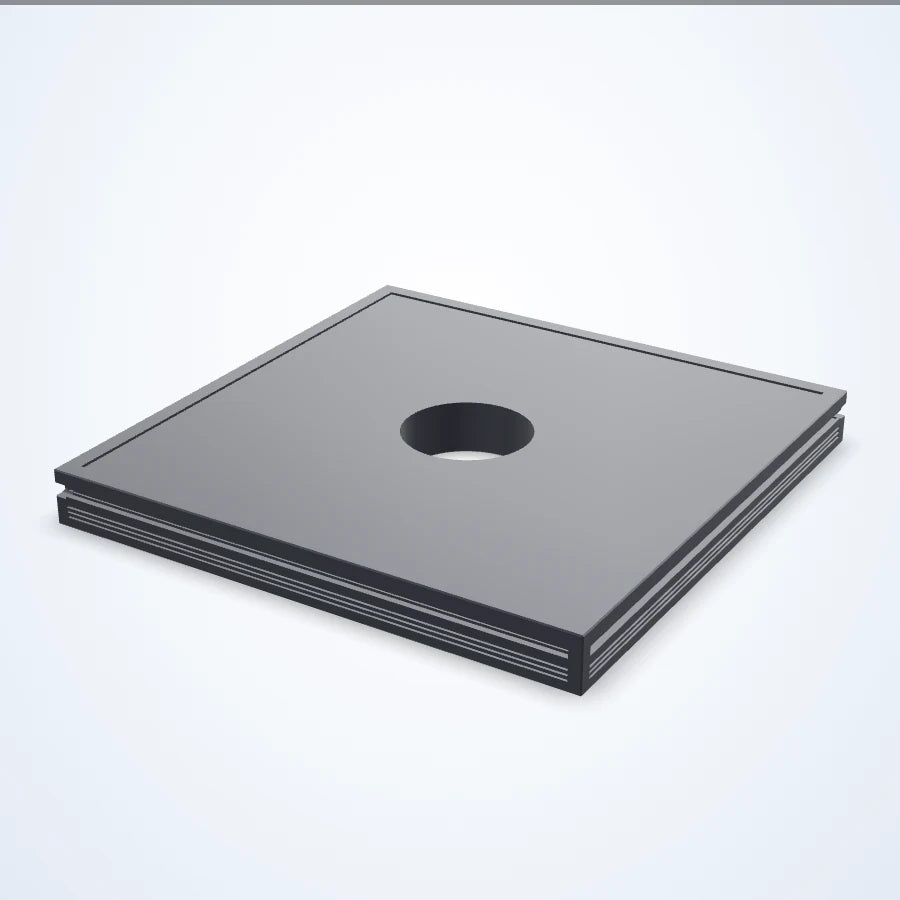

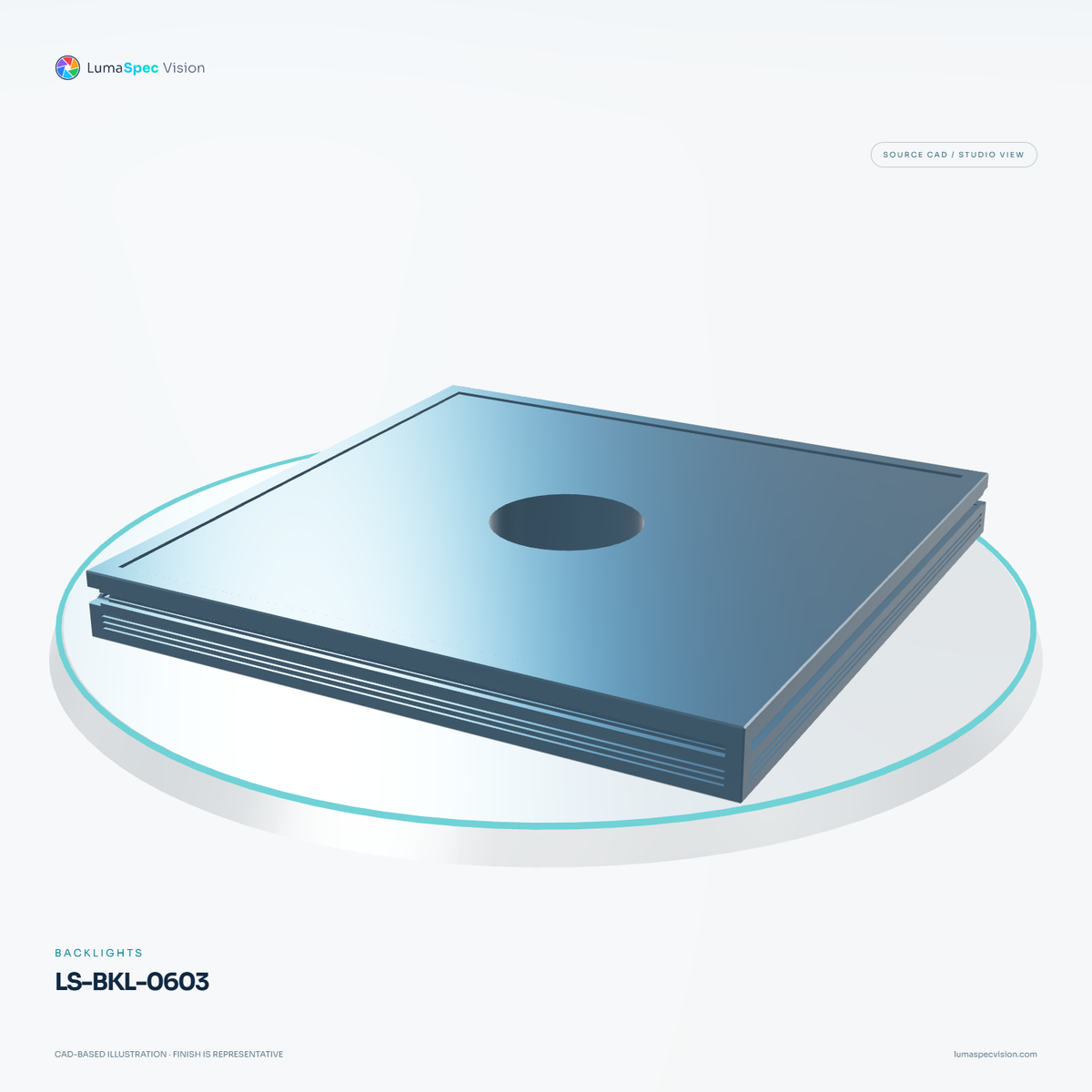

  • LS-BKL-0603 — Backlights, 3D view 1. CAD-based illustration; finish is representative.

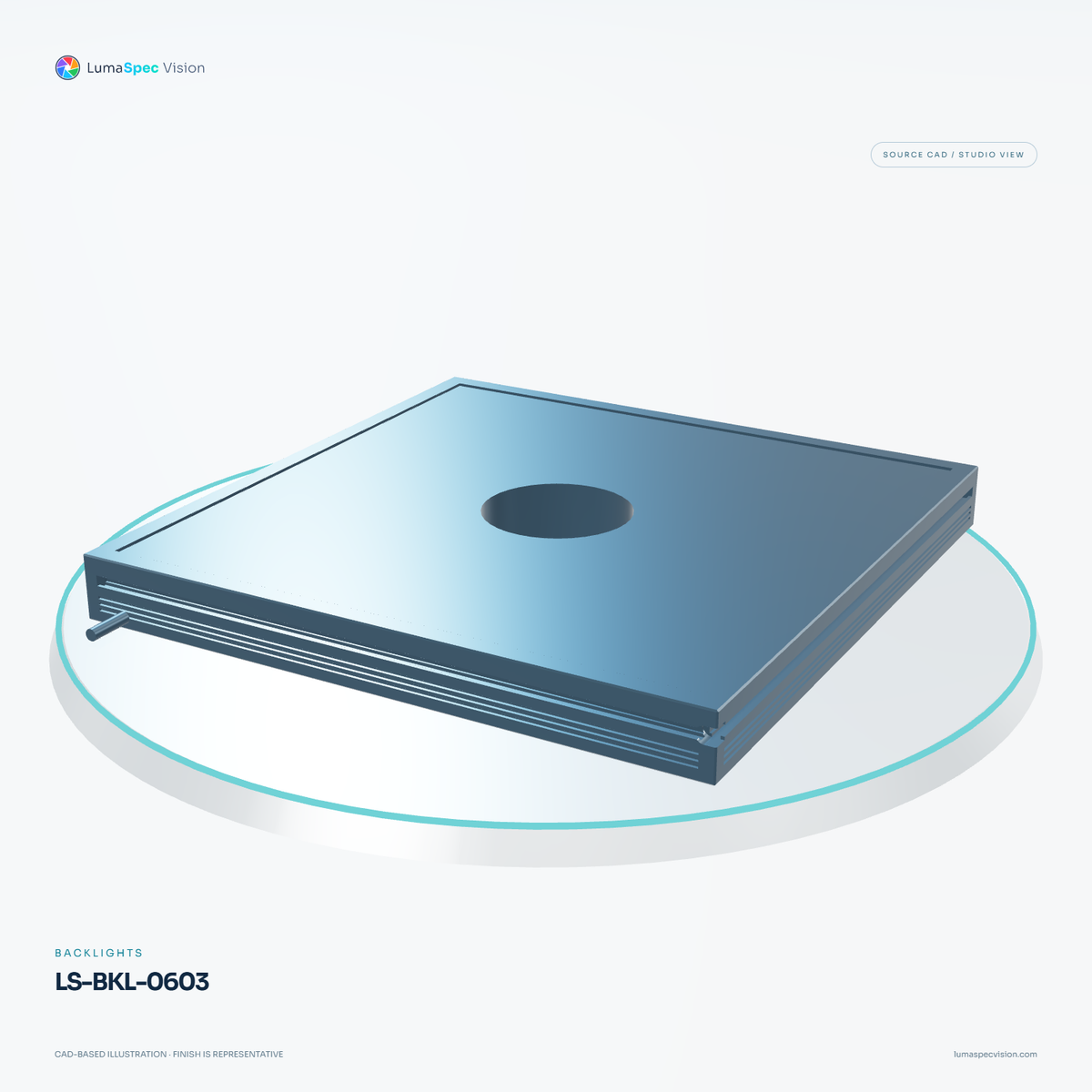

  • LS-BKL-0603 — Backlights, 3D view 2. CAD-based illustration; finish is representative.

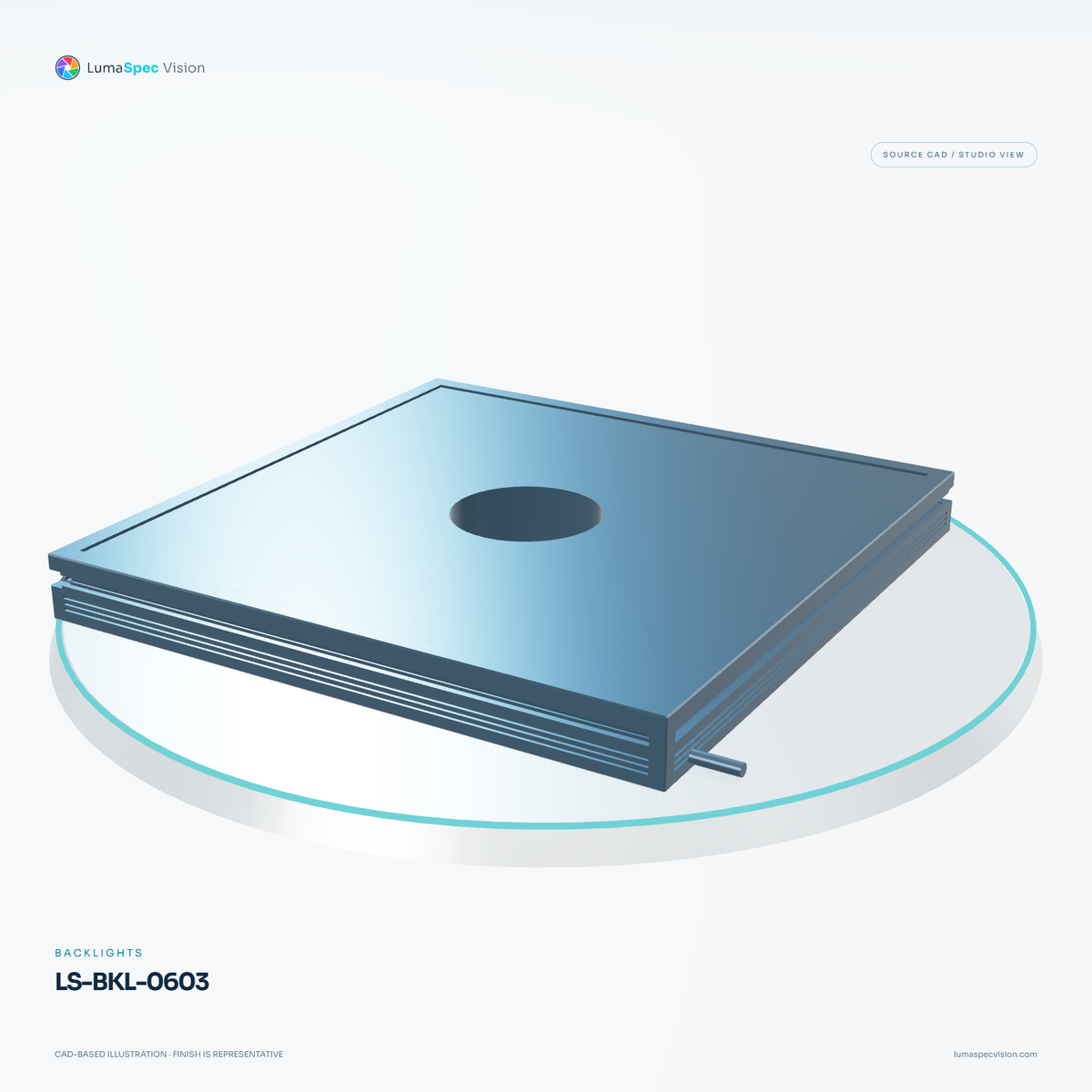

  • LS-BKL-0603 — Backlights, 3D view 3. CAD-based illustration; finish is representative.

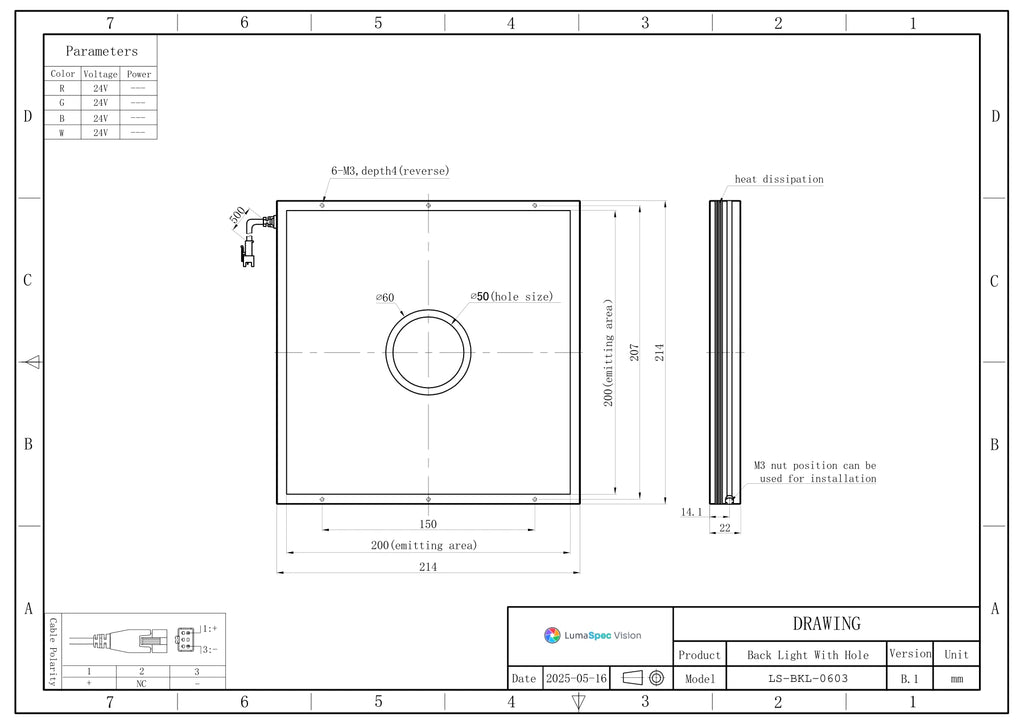

  • LS-BKL-0603 dimensions (mm)

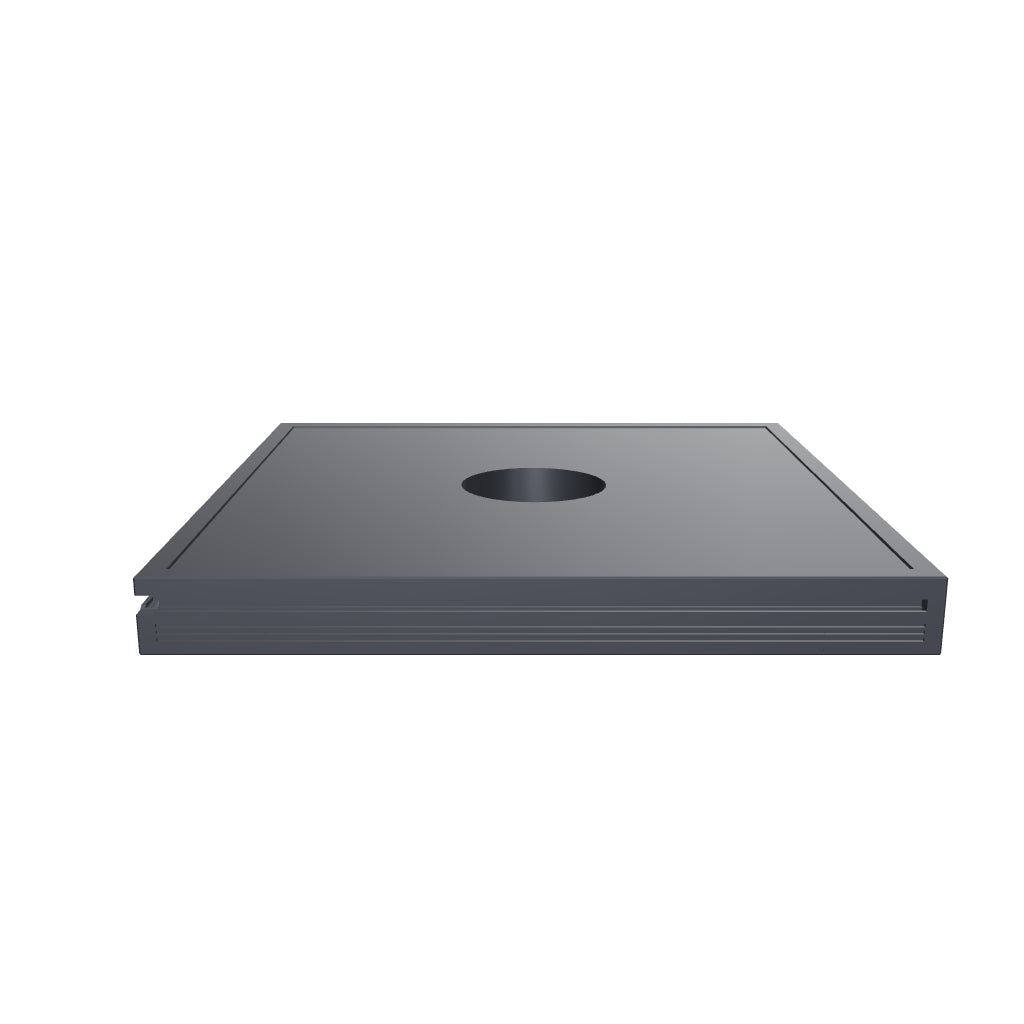

  • LS-BKL-0603 3D model

CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.

Backlights

200 x 200 mm Through-Hole LED Backlight (LS-BKL-0603)

Model LS-BKL-0603

  • ColourRed, Green, Blue, White
  • Emitting area200x200 mm
  • Size214x214x22 mm
  • Voltage24 V
  • Power27 W
$619.00

Ships in 2-3 weeks

1.3 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

200 x 200 mm Through-Hole LED Backlight (LS-BKL-0603)LS-BKL-0603

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

200 x 200 mm Through-Hole LED Backlight. Bottom-lit backlight (LED + diffuser) with a round central through-hole for viewing through the light, in a finned heat-dissipation housing 21-27 mm thick.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-0603
Construction (setup diagram)LED / housing / diffuser plate

Light

Emitting area (mm)200x200
ColoursRed, Green, Blue, White

Electrical

Voltage (V)24
Power R (W)18
Power W/B/G (W)27

Mechanical

Hole size (mm)Φ50
Outer size L x W x H (mm)214x214x22
MountingM3 tapped holes on back (qty per model drawing); side M3 nut slots
Heat sinkFinned heat-dissipation profile
Shipping weight (estimated)1.30 kg

Mounting and drawing data

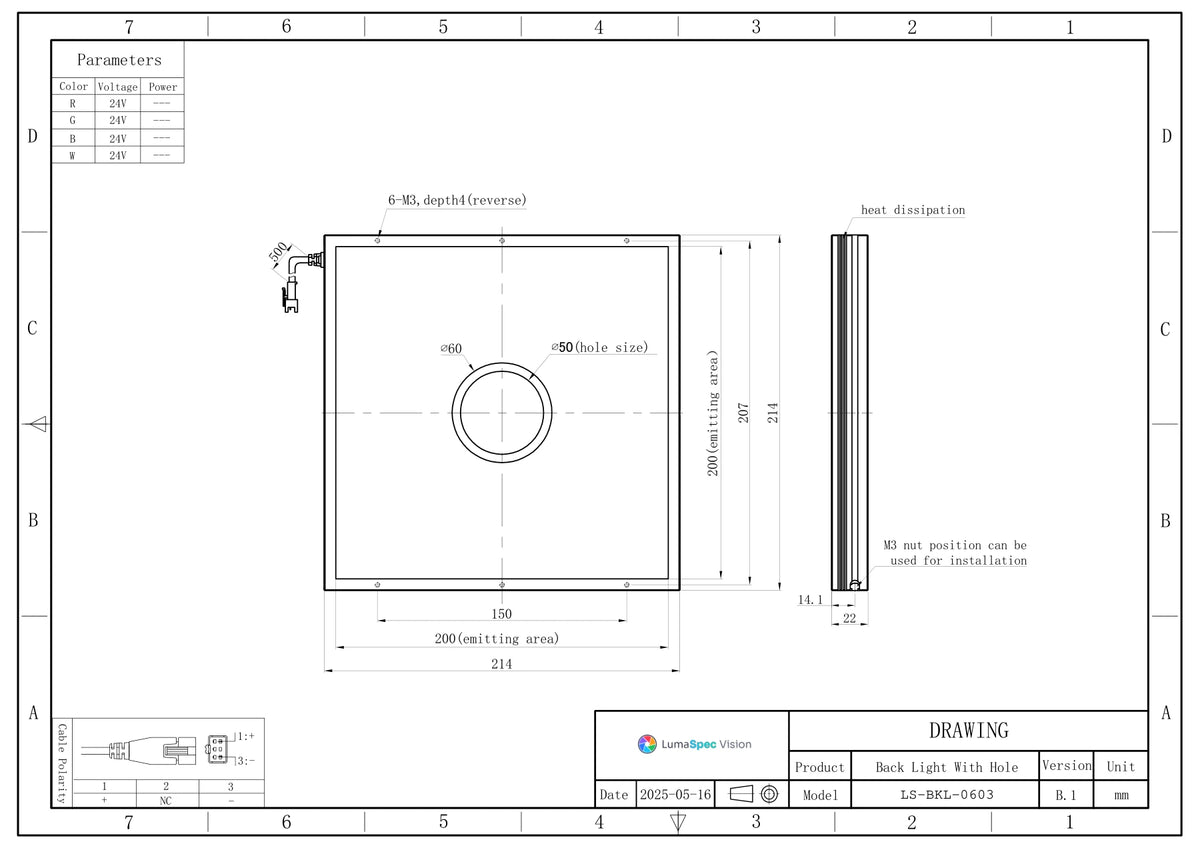

drawing: outer 214x214x22, opening Φ50 / Φ60 ring, 6-M3 depth 4 (bottom) at 150 x 207, side M3 nut slot, cable 500

LS-BKL-0603

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-BKL-0603 — Backlights, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Emitting area (mm)
200x200
Voltage (V)
24
Outer size L x W x H (mm)
214x214x22

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.

Other models in the Bottom Back Light with Hole (LS-BKL-S72) series

See all 12 models
