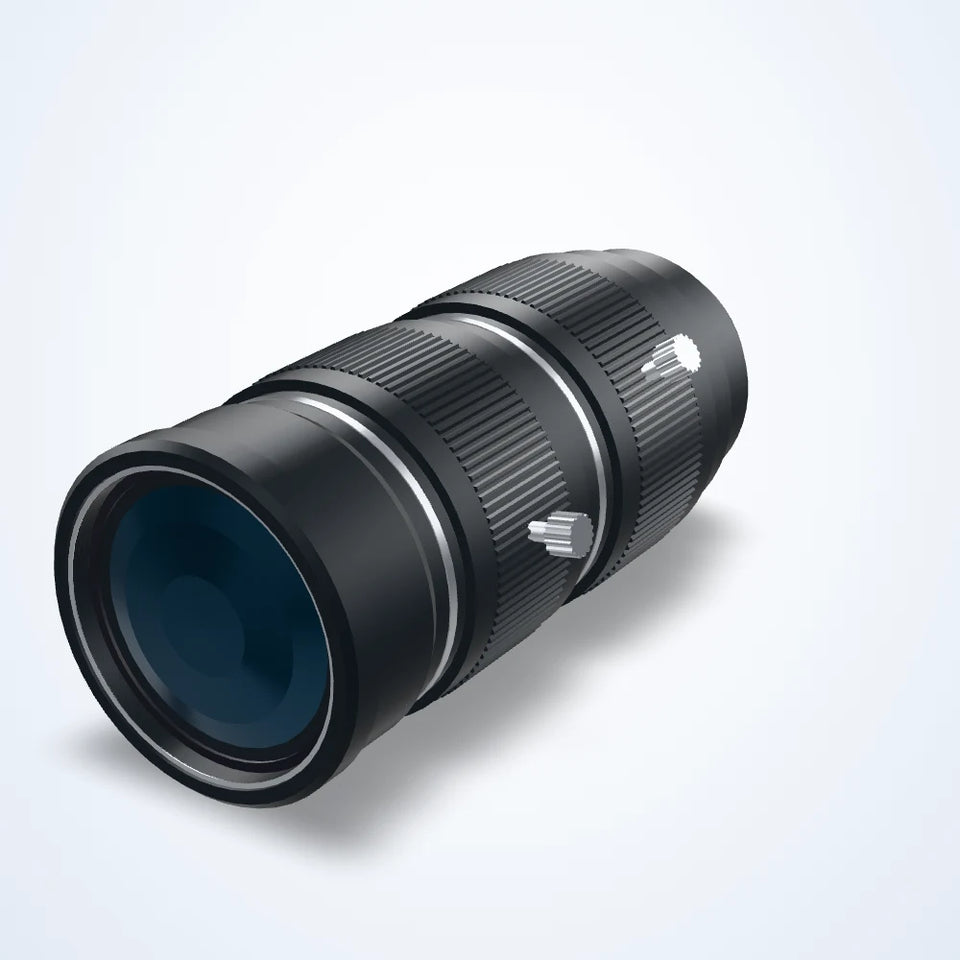

SWIR lens, 25-100 mm, C-, F- or M42-mount (LS-SWL-S15)
- 7 models
- from $540.00
- Series LS-SWL-S15
The SWIR lens, 25-100 mm, C-, F- or M42-mount (LS-SWL-S15) is a range of 7 thermal, swir & uv lenses from LumaSpec Vision, from $540.00. It comes in 7 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 25 mm, C-mount, 25 mm, M42, 40 mm, M42, 50 mm, M42, 100 mm, C-mount, 100 mm, F-mount, 100 mm, M42
- Mount
- M42, C-mount, F-mount
- Image circle
- 11-16 mm, 22-30 mm
- Focal length
- 25-50 mm, 50-100 mm, 100 mm +
- Sensor format
- 1/1.2", 4/3" - APS-C
Features
- A 25 mm lens (C-mount), the shortest of the 4 focal lengths: the widest view, for large fields at close range
- Focuses from 0.2 m: there a 12.6 mm sensor sees a field about 80.6 mm wide
- C-mount interface
- 25 mm on a 12.6 mm sensor: about 22.8° wide, a field about 202 mm wide at 500 mm, F0.9 aperture
- Corrected for 900 to 1700 nm: works with 850 nm near-infrared lights
- A 25 mm lens (M42-Mount), the shortest of the 4 focal lengths: the widest view, for large fields at close range
- 25 mm on a 28 mm sensor: about 48.3° wide, a field about 448 mm wide at 500 mm, F1.9 to F22 aperture
- 1.6 % distortion: at the corner of a 28 mm sensor a point shifts at most about 220 µm
All 7 models in the SWIR lens, 25-100 mm, C-, F- or M42-mount (LS-SWL-S15)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-SWL-0211 | 25 mm, C-mount | Φ12.6 mm | 25 mm | F0.9 | $540.00 | View |
| LS-SWL-0212 | 25 mm, M42 | 28 mm | 25 mm | F1.9-22 | $715.00 | View |
| LS-SWL-0213 | 40 mm, M42 | 28 mm | 40 mm | F1.6-22 | $715.00 | View |
| LS-SWL-0214 | 50 mm, M42 | 28 mm | 50 mm | F1.4-22 | $715.00 | View |
| LS-SWL-0215 | 100 mm, C-mount | 25.6 mm | 100 mm | F2.1-22 | $2,100.00 | View |
| LS-SWL-0216 | 100 mm, F-mount | 25.6 mm | 100 mm | F2.1-22 | $2,100.00 | View |
| LS-SWL-0217 | 100 mm, M42 | 25.6 mm | 100 mm | F2.1-22 | $2,100.00 | View |
