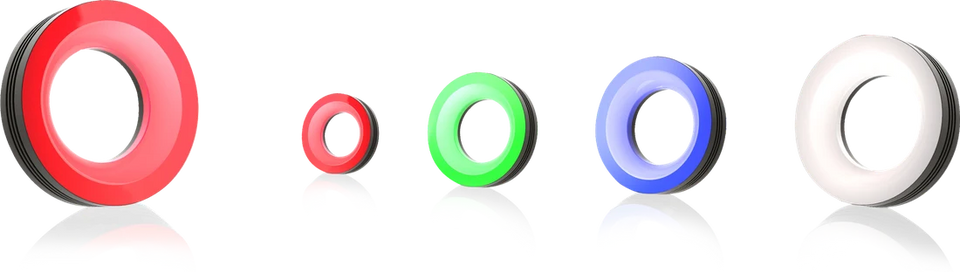

High angle ring shadowless light (SHR series)
- 9 models
- from $169.00
- Series LS-SHR
The High angle ring shadowless light (SHR series) is a range of 9 shadowless lights from LumaSpec Vision, from $169.00. It comes in 7 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 79 mm OD, 80 mm OD, 116 mm OD, 166 mm OD, 196 mm OD, 230 mm OD, 359 mm OD
- Colour
- Red, Green, Blue, White
- Voltage
- 24 V
Features
- High brightness, high uniformity shadowless illumination.
- Adopting a special illumination structure to ensure full diffusion of LED light.
- Changing the distance from the object being measured to the light source does not alter the uniformity of the illuminated area.
Typical uses
- High-reflective product surface defect inspection
- Outer packaging inspection
- Electronic component wiring inspection
- Watch dial character inspection
- Inspection of internal defects in pull tabs
- Razor crystal head orientation detection
All 9 models in the High angle ring shadowless light (SHR series)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-SHR-80 | 79 mm OD | 79x36x26.8 | 6.5 | 7 | $169.00 | View |
| LS-2SHR-80 | 80 mm OD | 80x36x25.5 | 3.5 | 6.3 | $169.00 | View |
| LS-SHR-100 | 116 mm OD | 116x66x26.4 | 12 | 14 | $239.00 | View |
| LS-2SHR-116 | 116 mm OD | 116x66x25.5 | 12.2 | 14.3 | $239.00 | View |
| LS-SHR-150 | 166 mm OD | 166x116x26 | 16 | 20 | $329.00 | View |
| LS-2SHR-166 | 166 mm OD | 166x116x25.5 | 16.2 | 26.3 | $329.00 | View |
| LS-2SHR-196 | 196 mm OD | 196x146x25.5 | 20.8 | 30.9 | $379.00 | View |
| LS-2SHR-230 | 230 mm OD | 230x180x26.5 | 14 | 24.2 | $439.00 | View |
| LS-SHR-360 | 359 mm OD | 359x301x30 | 39 | 42 | $669.00 | View |
