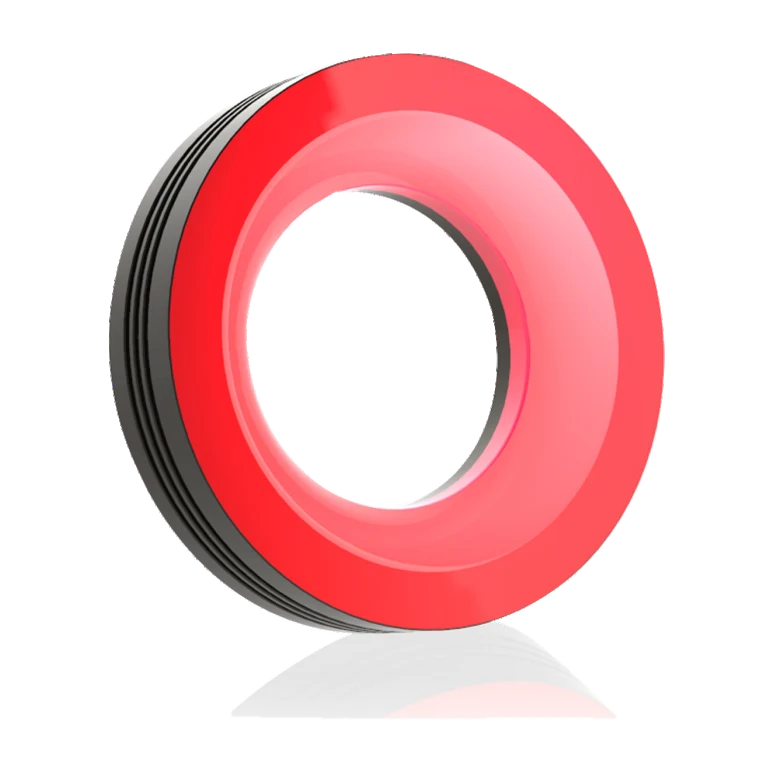

79 mm OD High-Angle Ring Shadowless Light (LS-SHR-80)
  • 79 mm OD High-Angle Ring Shadowless Light (LS-SHR-80)

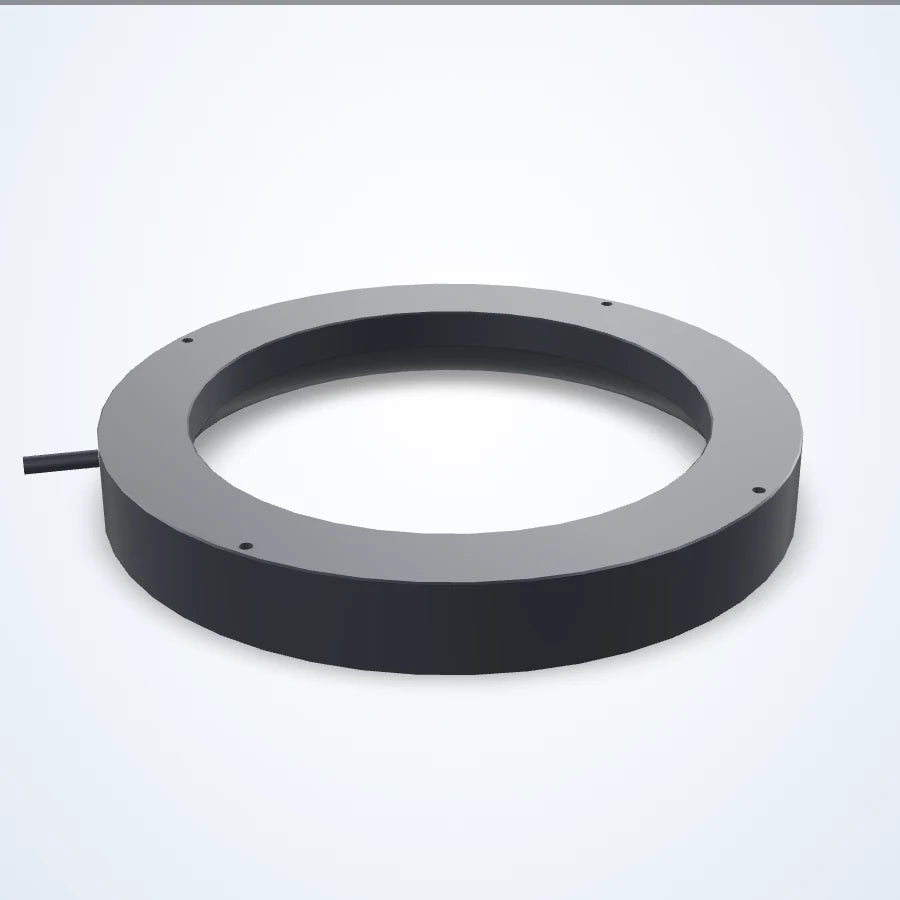

  • LS-2SHR-196 3D render
  • LS-2SHR-196 dimensions (mm)
  • LS-2SHR-196 3D model

Shadowless lights

196 mm OD High-Angle Ring Shadowless Light (LS-2SHR-196)

Model LS-2SHR-196

  • ColourRed, Green, Blue, White
  • Voltage24 V
  • Power30.9 W
  • Power R20.8 W
$379.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.4 kg shipping weight

Color

Volume pricing, Net 30 or a formal quote?

196 mm OD High-Angle Ring Shadowless Light. High angle ring shadowless light giving high-brightness, high-uniformity shadowless illumination through a special structure that fully diffuses the LED light. Changing the distance to the object does not alter the uniformity of the illuminated area.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-2SHR-196
OD x ID x H (mm)196x146x25.5

Interfaces and I/O

Cable lead (mm, per drawings)500

Light

ColoursRed, Green, Blue, White

Electrical

Voltage (V)24
Power R (W)20.8
Power W/B/G (W)30.9

Mechanical

Shipping weight (estimated)0.40 kg

Mounting and drawing data

2SHR variant; drawing: 4-M4 depth 5 on dia 188

Other models in the High angle ring shadowless light (SHR series) series

See all 9 models
ModelSize / key dataPriceAvailabilityLink
LS-SHR-80 79 mm OD $169.00 15 in stock View
LS-2SHR-80 80 mm OD $169.00 16 in stock View
LS-SHR-100 116 mm OD $239.00 13 in stock View
LS-2SHR-116 116 mm OD $239.00 15 in stock View
LS-SHR-150 166 mm OD $329.00 13 in stock View
LS-2SHR-166 166 mm OD $329.00 13 in stock View
LS-2SHR-230 230 mm OD $439.00 14 in stock View
LS-SHR-360 359 mm OD $669.00 11 in stock View
