79 mm OD High-Angle Ring Shadowless Light (LS-SHR-80)
  • 79 mm OD High-Angle Ring Shadowless Light (LS-SHR-80)

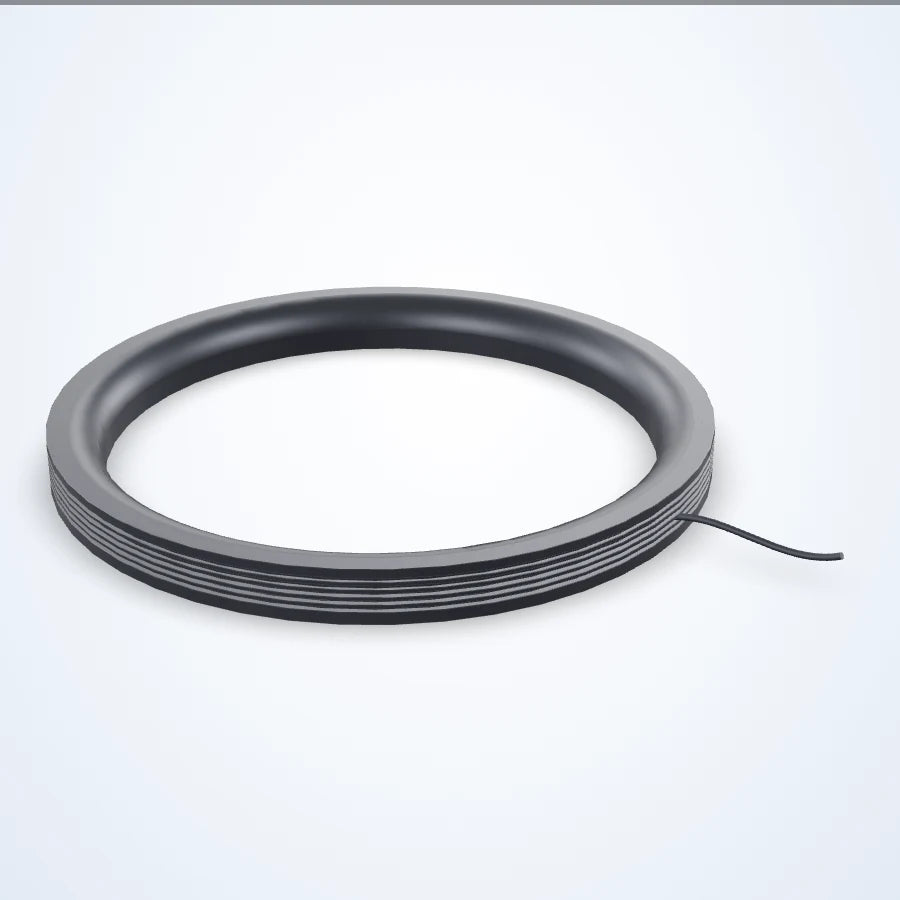

  • LS-SHR-360 3D render
  • LS-SHR-360 dimensions (mm)

Shadowless lights

359 mm OD High-Angle Ring Shadowless Light (LS-SHR-360)

Model LS-SHR-360

  • ColourRed, Green, Blue, White
  • Voltage24 V
  • Power42 W
  • Power R39 W
$669.00

In stock - ships the same business day (4 available, order by 2 PM ET)

0.8 kg shipping weight

Color

Volume pricing, Net 30 or a formal quote?

359 mm OD High-Angle Ring Shadowless Light. High angle ring shadowless light giving high-brightness, high-uniformity shadowless illumination through a special structure that fully diffuses the LED light. Changing the distance to the object does not alter the uniformity of the illuminated area.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SHR-360
OD x ID x H (mm)359x301x30

Interfaces and I/O

Cable lead (mm, per drawings)500

Light

ColoursRed, Green, Blue, White

Electrical

Voltage (V)24
Power R (W)39
Power W/B/G (W)42

Mechanical

Shipping weight (estimated)0.80 kg

Mounting and drawing data

drawing: 4-M4 depth 4 on P.C.D 351

Other models in the High angle ring shadowless light (SHR series) series

See all 9 models
ModelSize / key dataPriceAvailabilityLink
LS-SHR-80 79 mm OD $169.00 15 in stock View
LS-2SHR-80 80 mm OD $169.00 16 in stock View
LS-SHR-100 116 mm OD $239.00 13 in stock View
LS-2SHR-116 116 mm OD $239.00 15 in stock View
LS-SHR-150 166 mm OD $329.00 13 in stock View
LS-2SHR-166 166 mm OD $329.00 13 in stock View
LS-2SHR-196 196 mm OD $379.00 17 in stock View
LS-2SHR-230 230 mm OD $439.00 14 in stock View
