Shadowless lights

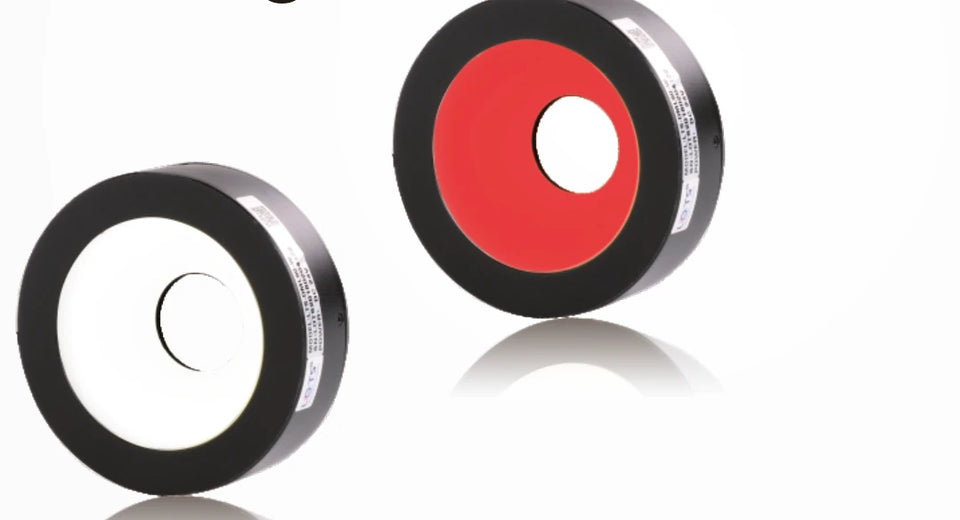

Multi-direction shadowless light (DML)
- 3 models
- from $129.00
- Series LS-DML
The Multi-direction shadowless light (DML) is a range of 3 shadowless lights from LumaSpec Vision, from $129.00. It comes in 2 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 64 mm, 94 mm
- Colour
- Red, Green, Blue, White
- Voltage
- 24 V
Features
- LEDs mounted vertically, fastened to the light side
- Special diffuser, reflected ring illumination
- Highly uniform emission onto multiple slopes
- Customizable: Shape, Outer & inner diameter, Combined light, Colour & colour temperature, Multi-area control, Cable length, Installation method
- UV & IR versions can be customized as required
- LED vertical direction, fasten to light side
- Special diffuser, reflect ring illumination
- Provide high uniform emitting to multi slope
Typical uses
- Surface character and pattern recognition
- Metal object edge location and measurement inspection
- Imaging example: metal shrapnel location (LS-DML90-W), high-uniformity diffuse light gives high contrast
- Metal object edge location, measure inspection
