Dome lights

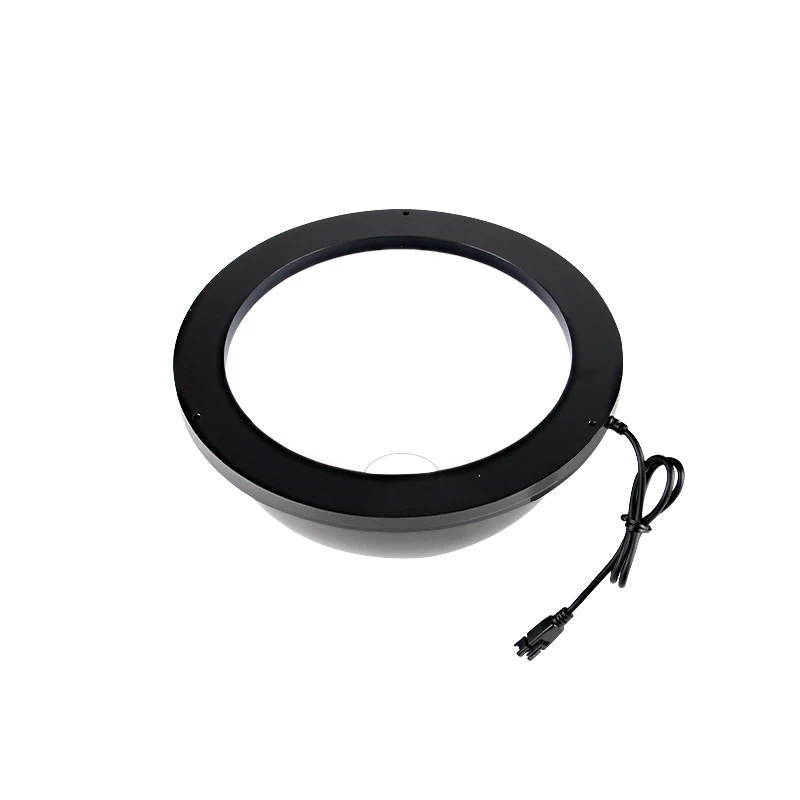

3.0 dome light (LS-DOM-S11)
- 11 models
- from $159.00
- Series LS-DOM-S11
The 3.0 dome light (LS-DOM-S11) is a range of 11 dome lights from LumaSpec Vision, from $159.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Colour
- Red, Green, Blue, White
- Size
- Under 50 mm, 50-100 mm, 100-200 mm, 200-400 mm
- Voltage
- 24 V
- Connector
- SM3
Features
- Diffused light from the dome for reflective and uneven surfaces
- SMD LEDs
- Three-colour RGB light source, outer/inner diameter and height, wavelength/colour temperature, mounting and input wire length customization
- Diameter of light inlet: 20mm. Diameter of light outlet: 40mm.
- Brightness level 255, connected to the controller can be adjusted.
- Life span:50000 hours for red light and 30000 hours for white light.
- Suitable for detecting reflective, uneven surface, curved surface defects, etc.
Typical uses
- Detecting reflective, uneven surfaces
- Surface, concave and convex surface, arc surface detection
- Packaging industry (beverage container top)
All 11 models in the 3.0 dome light (LS-DOM-S11)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-DOM-0057 | 36.5 | 20 | 40 | 75 | $159.00 | View |
| LS-DOM-0058 | 47 | 20 | 56 | 91.5 | $329.00 | View |
| LS-DOM-0059 | 56.5 | 20 | 74 | 110 | $409.00 | View |
| LS-DOM-0060 | 65 | 24 | 96 | 131.5 | $499.00 | View |
| LS-DOM-0061 | 82 | 34 | 130 | 168 | $679.00 | View |
| LS-DOM-0062 | 94.5 | 30 | 143 | 194 | $819.00 | View |
| LS-DOM-0063 | 115 | 50 | 177 | 230 | $1,039.00 | View |
| LS-DOM-0064 | 123.5 | 48 | 205 | 256 | $1,209.00 | View |
| LS-DOM-0065 | 144 | 48 | 245 | 296 | $1,519.00 | View |
| LS-DOM-0067 | 180.5 | 60 | 317 | 379 | $1,689.00 | View |
| LS-DOM-0066 | 155.5 | 50 | 290 | 340 | $1,879.00 | View |
