3.0 dome light (LS-DOM-S11)
  • 3.0 dome light (LS-DOM-S11)

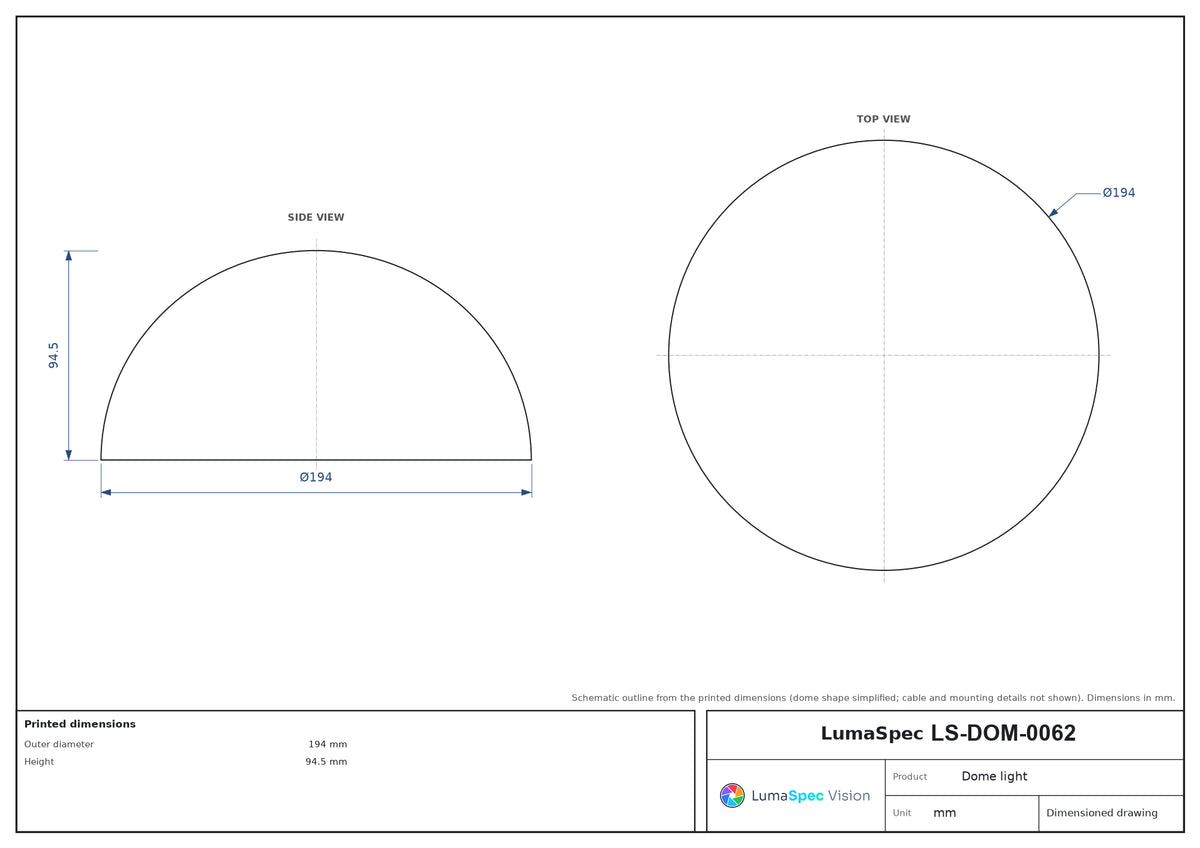

  • LS-DOM-0062 dimensions (mm)

Representative photo of this series

Dome lights

3.0 dome light, outer diameter 194 mm (LS-DOM-0062)

Model LS-DOM-0062

  • ColourRed, Blue, Green, White
  • Voltage24 V
  • LED typeSMD
  • Light inlet port30 mm
$819.00

Ships in 2-3 weeks

1.35 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

3.0 dome light, outer diameter 194 mm (LS-DOM-0062)LS-DOM-0062

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

3.0 dome light product shell made of new heat dissiption material,lighter in weight and easier to install.Support customized color, wavelength, luminous size, etc.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-DOM-0062
Working lifewhite: 30000 hours, red: 30000 hours (the value varies according to the use environment)
Quality serviceone year product warranty, technical support
Light inlet port (mm)30
Light outlet (mm)143

Light

LED typeSMD
Wavelength red620-630 nm
Wavelength green520-530 nm
Wavelength blue460-470 nm
Colour temperature white6000-7500 K

Environment and compliance

Operating environment (indoor)temperature 0~40 °C, humidity 20~85% (non condensing)

Electrical

Power toleranceactual product power within ±10% of the table is the normal range
Voltage (V)24
Power red (W)9
Power blue/green/white (W)12.2

Mechanical

Outer diameter (mm)194
Height (mm)94.5
Shipping weight1.35 kg
