3.0 dome light (LS-DOM-S11)
  • 3.0 dome light (LS-DOM-S11)

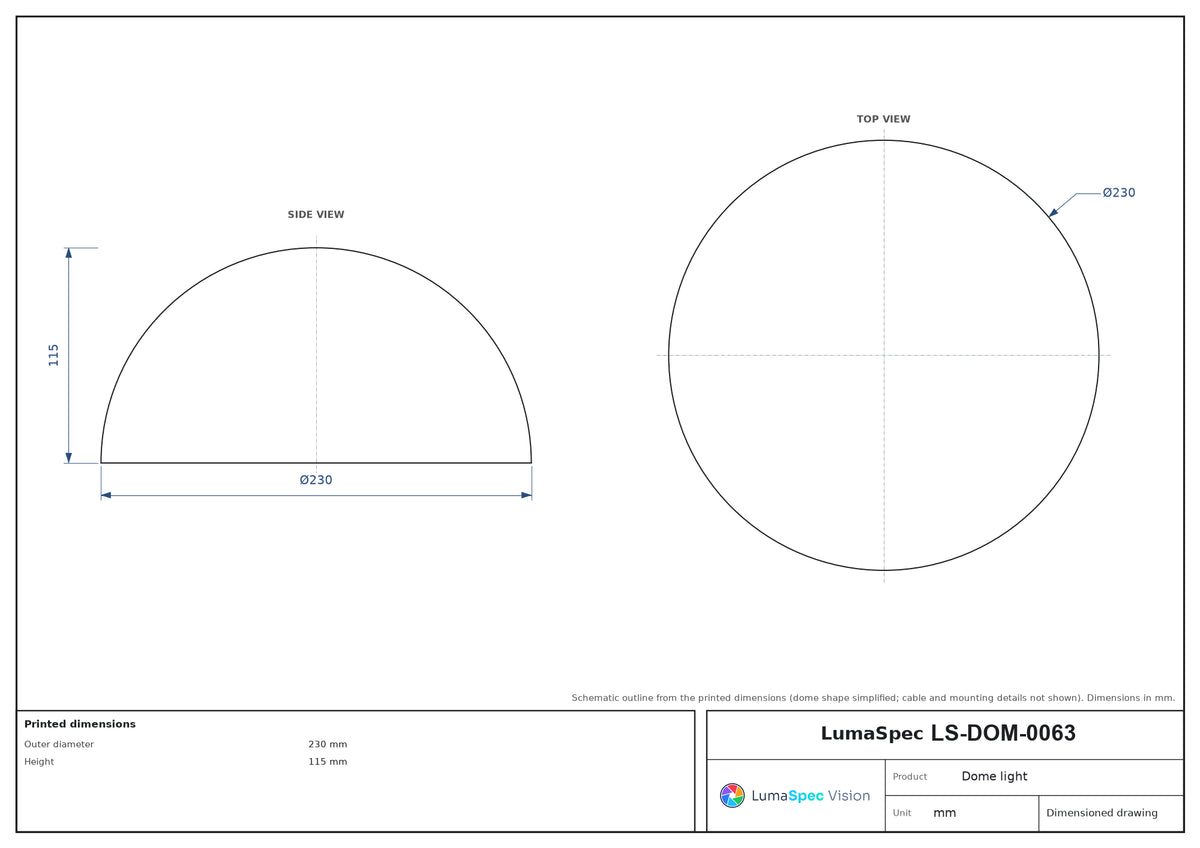

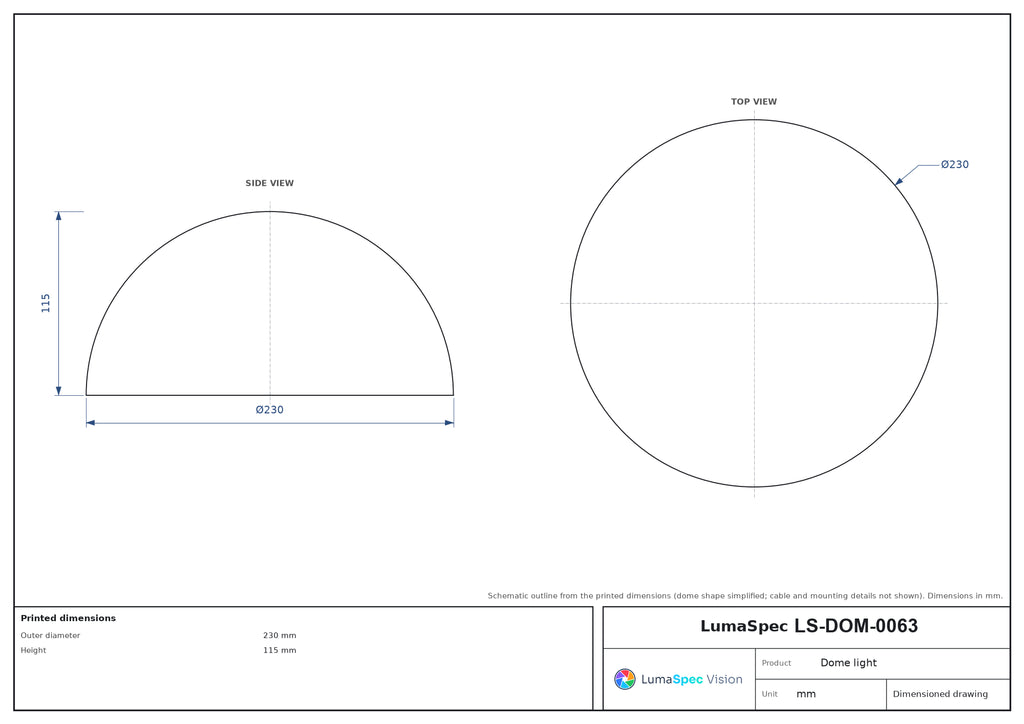

  • LS-DOM-0063 dimensions (mm)

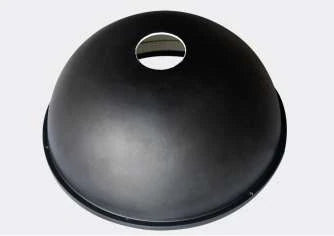

Representative photo of this series

Dome lights

3.0 dome light, outer diameter 230 mm (LS-DOM-0063)

Model LS-DOM-0063

  • ColourRed, Blue, Green, White
  • Voltage24 V
  • LED typeSMD
  • Light inlet port50 mm
$1,039.00

In stock - ships the same business day (5 available, order by 2 PM ET)

1.85 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

3.0 dome light, outer diameter 230 mm (LS-DOM-0063)LS-DOM-0063

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

3.0 dome light product shell made of new heat dissiption material,lighter in weight and easier to install.Support customized color, wavelength, luminous size, etc.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-DOM-0063
Working lifewhite: 30000 hours, red: 30000 hours (the value varies according to the use environment)
Quality serviceone year product warranty, technical support
Light inlet port (mm)50
Light outlet (mm)177

Light

LED typeSMD
Wavelength red620-630 nm
Wavelength green520-530 nm
Wavelength blue460-470 nm
Colour temperature white6000-7500 K

Environment and compliance

Operating environment (indoor)temperature 0~40 °C, humidity 20~85% (non condensing)

Electrical

Power toleranceactual product power within ±10% of the table is the normal range
Voltage (V)24
Power red (W)15
Power blue/green/white (W)19.5

Mechanical

Outer diameter (mm)230
Height (mm)115
Shipping weight1.85 kg

Other models in the 3.0 dome light (LS-DOM-S11) series

See all 11 models
ModelSize / key dataPriceAvailabilityLink
LS-DOM-0057 Red, Blue, Green, White · 24 V $159.00 13 in stock View
LS-DOM-0058 Red, Blue, Green, White · 24 V $329.00 14 in stock View
LS-DOM-0059 Red, Blue, Green, White · 24 V $409.00 15 in stock View
LS-DOM-0060 Red, Blue, Green, White · 24 V $499.00 12 in stock View
LS-DOM-0061 Red, Blue, Green, White · 24 V $679.00 15 in stock View
LS-DOM-0062 Red, Blue, Green, White · 24 V $819.00 18 in stock View
LS-DOM-0064 Red, Blue, Green, White · 24 V $1,209.00 12 in stock View
LS-DOM-0065 Red, Blue, Green, White · 24 V $1,519.00 12 in stock View
LS-DOM-0067 Red, Blue, Green, White · 24 V $1,689.00 13 in stock View
LS-DOM-0066 Red, Blue, Green, White · 24 V $1,879.00 13 in stock View
