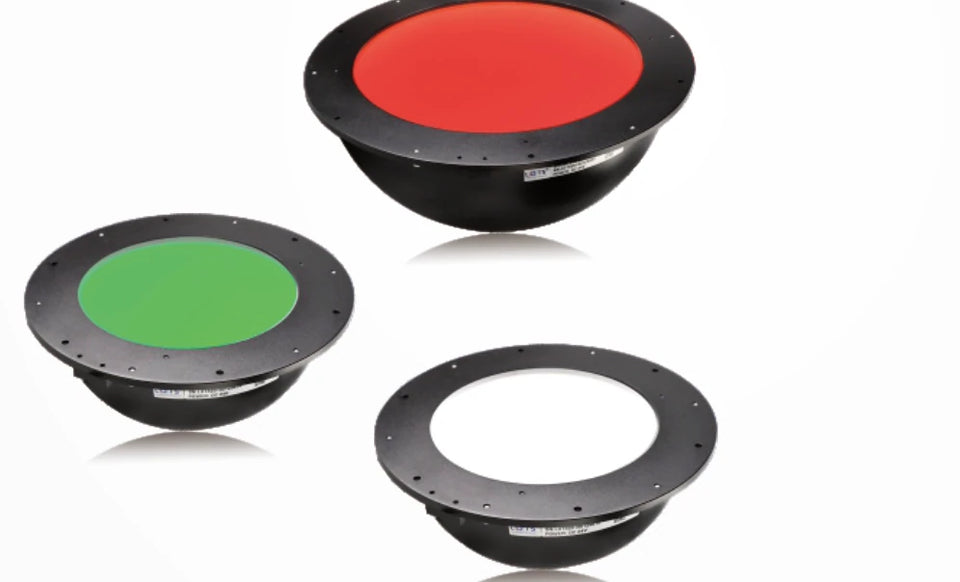

Dome shadowless light (LS-DOM-S10)
- 4 models
- from $309.00
- Series LS-DOM-S10
The Dome shadowless light (LS-DOM-S10) is a range of 4 dome lights from LumaSpec Vision, from $309.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 60 mm, 116 mm, 138 mm, 193 mm
- Colour
- Red, Green, Blue, White
- Voltage
- 24 V
Features
- High uniformity, large emitting area
- Lightweight design, high luminance
- Frame-fixed method: more uniform stress, firmer and more reliable over long use
- Flexible outline, can be customized
- Customizable: Multi-area control, Colour & colour temperature, Cable length, Installation method, Combined light
- UV & IR versions can be customized as required
- Frame fixed method, more uniform stress, more fastness and more reliable when long time using
Typical uses
- Reflective and uneven surface inspection
- IC surface character inspection
- Condenser surface defect inspection
- Imaging example: IC chip defect inspection (LS-DOM-0053-IR850), infrared light passes through the glue to show the chip below and removes glue-surface reflection
- Reflect light, unflatness surface inspection
All 4 models in the Dome shadowless light (LS-DOM-S10)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-DOM-0053 | 60 mm | 60 | 13.0W/17.3W | 11.6W | $309.00 | View |
| LS-DOM-0054 | 116 mm | 116 | 21.6W/27.4W | 12.0W | $439.00 | View |
| LS-DOM-0055 | 138 mm | 138 | 37.5W/47.6W | 21.2W | $559.00 | View |
| LS-DOM-0056 | 193 mm | 193 | 51.9W/64.8W | 28.8W | $839.00 | View |
