Dome shadowless light (LS-DOM-S10)
  • Dome shadowless light (LS-DOM-S10)

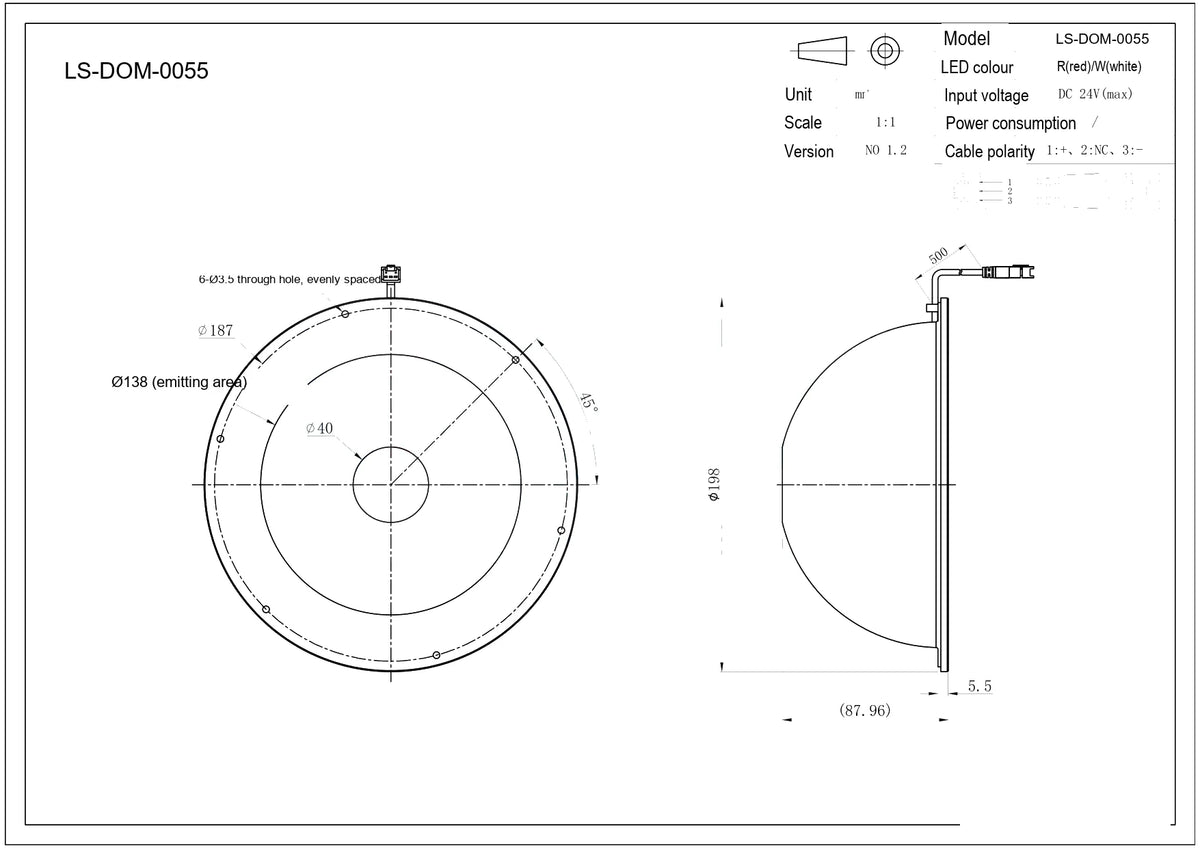

  • LS-DOM-0055 dimensions (mm)

Representative photo of this series

Dome lights

138 mm Dome shadowless light, power 12.5 W (LS-DOM-0055)

Model LS-DOM-0055

  • ColourRed, Green, Blue, White
  • Emitting area138 mm
  • Voltage24 V
  • Power37.5W/47.6W
$559.00

Ships in 2-3 weeks

0.65 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

138 mm Dome shadowless light, power 12.5 W (LS-DOM-0055)LS-DOM-0055

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Dome shadowless light (new) with high uniformity and a large emitting area; lightweight design with high luminance, frame-fixed construction for more uniform stress and long-term reliability; flexible outline can be customized.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-DOM-0055
FOV1~150 mm
NoteUV & IR light can be customized as required.

Optics

Recommended working distance5~50 mm

Interfaces and I/O

Cable length500 mm
Extension cable optionsPVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines)
Cable polarity1: +, 2: NC, 3: -

Light

Colour temperature of white6600 K
Emitting surface dia. (mm)138
LED colourR(red)/W(white)

Environment and compliance

Operating temperature0-50 °C
Operating humidity20-85% (non-condensing)
Lifespan50000 h (to 50% of factory default luminance)

Electrical

Voltage24 V
Adapted controllersStrobe controller, analog controller, digital controller
Power (R)12.5W
Power (G/B/W)21.2W
Power37.5W/47.6W
Input voltageDC 24V (max)

Mechanical

Min. diameterdia. 116
Max. diameterdia. 260
Weight394 g
DimensionOuter dia. 198mm,Inner dia. 40mm,Height 87.96mm

Other models in the Dome shadowless light (LS-DOM-S10) series

See all 4 models
ModelSize / key dataPriceAvailabilityLink
LS-DOM-0053 60 mm $309.00 Ships in 2-3 weeks View
LS-DOM-0054 116 mm $439.00 Ships in 2-3 weeks View
LS-DOM-0056 193 mm $839.00 Ships in 2-3 weeks View
