Dome lights

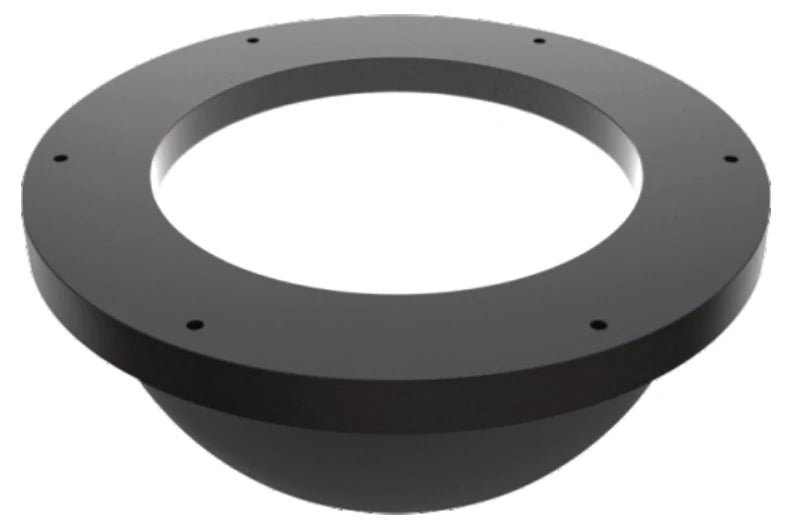

Dome light source (LS-DOM-S15)
- 8 models
- from $169.00
- Series LS-DOM-S15
The Dome light source (LS-DOM-S15) is a range of 8 dome lights from LumaSpec Vision, from $169.00. It comes in 8 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 26 mm, 31 mm, 48 mm, 66 mm, 116 mm, 138 mm, 193 mm, 500 mm
- Colour
- Red, Green, Blue, White
- Voltage
- 24 V
Features
- Diffuse light comes from dome shaped reflector
- Diffuse reflection shadowless light source
- Suitable for undulating surfaces and reflective objects
Typical uses
- Curved surface defect inspection
- Surface defect inspection
- Inspection of concave and convex surface defects
- Inspection of arc surface defects
- Metal, glass and other reflective objects surface inspection
- Character recognition of electrical appliance appearance
All 8 models in the Dome light source (LS-DOM-S15)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-DOM-0089 | 26 mm | 12 | 26 | 35 | $169.00 | View |
| LS-DOM-0090 | 31 mm | 16 | 31 | 25 | $179.00 | View |
| LS-DOM-0091 | 48 mm | 20 | 48 | 38.5 | $279.00 | View |
| LS-DOM-0092 | 66 mm | 25 | 66 | 59.4 | $439.00 | View |
| LS-DOM-0093 | 116 mm | 35 | 116 | 83.7 | $709.00 | View |
| LS-DOM-0094 | 138 mm | 30 | 138 | 96.5 | $839.00 | View |
| LS-DOM-0095 | 193 mm | 48 | 193 | 125.8 | $1,239.00 | View |
| LS-DOM-0096 | 500 mm | 65 | 500 | 313.32 | $6,449.00 | View |
