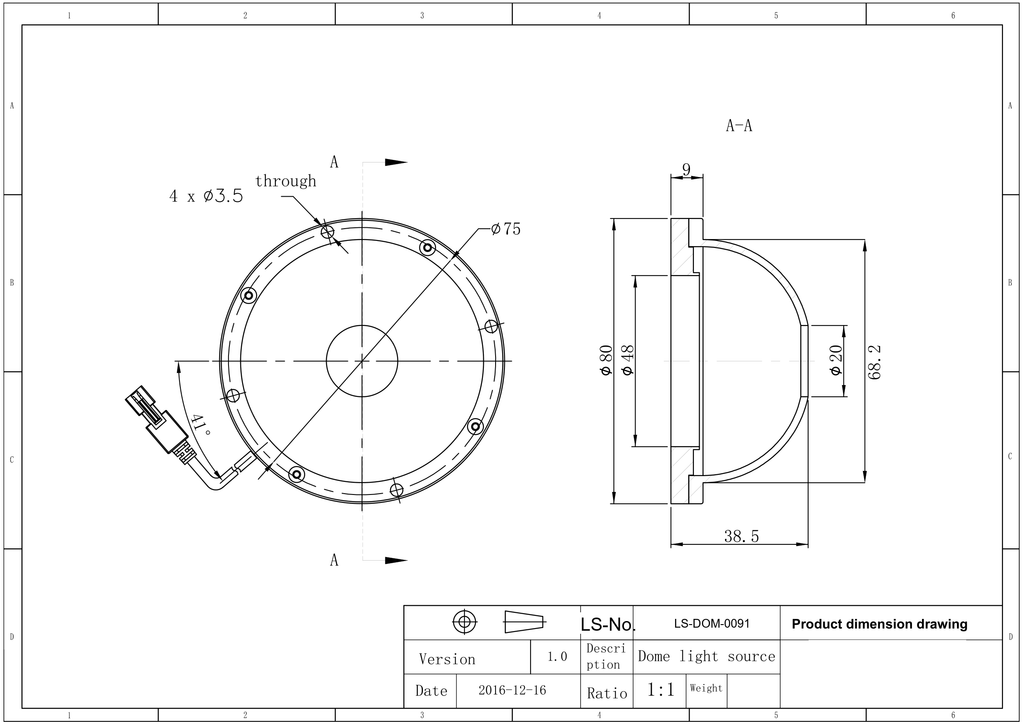

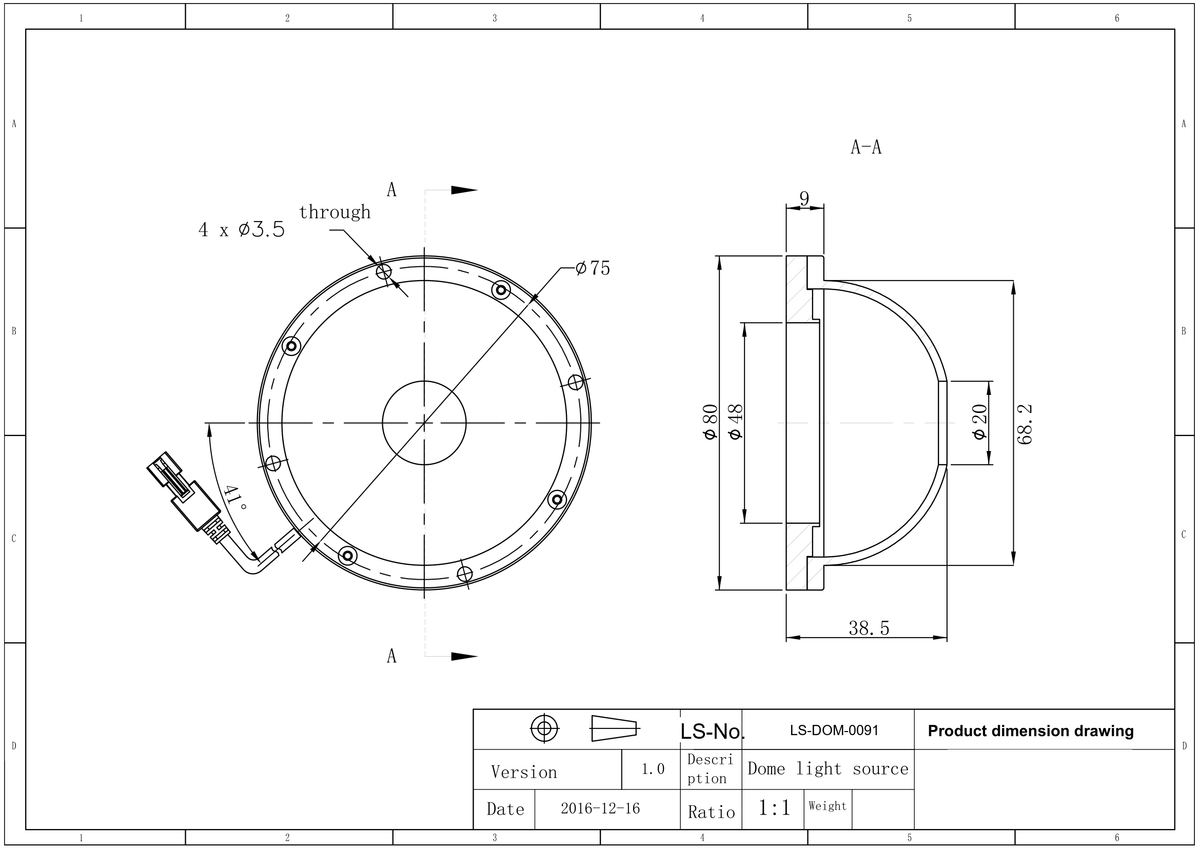

  • LS-DOM-0091 dimensions (mm)

Representative photo of this series

Dome lights

48 mm Dome light source (LS-DOM-0091)

Model LS-DOM-0091

  • ColourRed, Green, Blue, White
  • Voltage24 V
  • Wavelength red620-630 nm
  • Wavelength green520-530 nm
$279.00

Ships in 2-3 weeks

0.3 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

48 mm Dome light source (LS-DOM-0091)LS-DOM-0091

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Diffuse light comes from a dome-shaped reflector, giving diffuse-reflection shadowless lighting suitable for undulating surfaces and reflective objects.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-DOM-0091
Optional accessoriesExtension cable
Service life (red)60000 h continuous at 25 °C, 50% illumination, to 50% decrement
Service life (white)30000 h continuous at 25 °C, 50% illumination, to 50% decrement
Overall OD (mm)80
Camera hole ID (mm)20
Overall H (mm)38.5

Light

Wavelength red620-630 nm
Wavelength green520-530 nm
Wavelength blue465-475 nm
Colour temperature white6000-6500 K
Wavelength IR850-940 nm
Wavelength UV365-405 nm
Illuminance chart referenceLS-DOM-0092-W; uniformity LS-DOM-0093-W, FOV 80 x 80 mm at LWD 20/40/60 mm
Luminous size (mm)48

Environment and compliance

Storage temperature-20 to 60 °C
Operating temperature0 to 40 °C
Humidity20-85 %RH (non-condensing)

Electrical

ControllerLS-CTL-S69 series, LS-CTL-S28 series, LS-CTL-S125 series (the selected controller should match the power of the light source)
Power R (W)5.6
Power G/B/W (W)5.6
Recommended controllerLS-CTL-S69, LS-CTL-S28, LS-CTL-S125
Supply voltage (derived)24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-S69, LS-CTL-S28

Mechanical

Shipping weight0.30 kg
