Cables
Frame grabber I/O cables (LS-CBL-S08)
- 15 models
- from $39.00
- Series LS-CBL-S08
The Frame grabber I/O cables (LS-CBL-S08) is a range of 15 cables from LumaSpec Vision, from $39.00. It comes in 7 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.6 m, 3 m, 5 m, 7 m, 10 m, 15 m, 20 m
- Type
- Frame grabber I/O cables
- Length
- Up to 1 m, 3 m, 4-5 m, 6-8 m, 10 m, 15 m, 20 m
Features

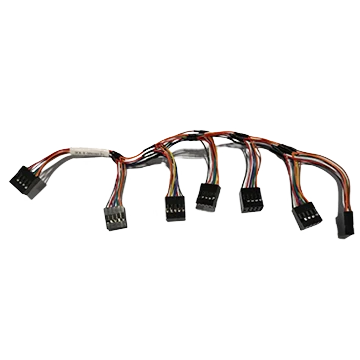

- The Frame Grabber Internal I/O Casecade Cable (Flexible) can be used for I/O signal wiring of multiple frame grabbers, and can support up to seven interfaces.
- The Frame Grabber Standard I/O Cable (DB9F to Open) can be used for I/O signal wiring of the frame grabber with DB9M interface. The cable is equipped with shielding protection, and is available in a variety of lengths.
- Standard frame grabber I/O trigger cable (DB15F to open leads) for I/O trigger signal wiring on frame grabbers with DB15M connectors; shielded, available in multiple lengths
- Standard frame grabber I/O trigger cable (miniDP to open leads) for I/O trigger signal wiring on frame grabbers with miniDP connectors; shielded, available in multiple lengths
- Standard frame grabber I/O trigger cable (DB9F to open leads) for I/O trigger signal wiring on frame grabbers with DB9M connectors; shielded, available in multiple lengths
All 15 models in the Frame grabber I/O cables (LS-CBL-S08)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CBL-0236 | 0.6 m | Static scene | 8.5 mm | >100 cycles | $39.00 | View |
| LS-CBL-0222 | 3 m | Static scene | 6.5 mm | >500 cycles | $49.00 | View |
| LS-CBL-0226 | 3 m | Static scenes | 6.5 mm | >500 cycles | $49.00 | View |
| LS-CBL-0230 | 3 m | Static scenes | 7 mm | >750 cycles | $49.00 | View |
| LS-CBL-0223 | 5 m | Static scene | 6.5 mm | >500 cycles | $59.00 | View |
| LS-CBL-0227 | 5 m | Static scenes | 6.5 mm | >500 cycles | $59.00 | View |
| LS-CBL-0231 | 5 m | Static scenes | 7 mm | >750 cycles | $59.00 | View |
| LS-CBL-0224 | 7 m | Static scene | 6.5 mm | >500 cycles | $69.00 | View |
| LS-CBL-0228 | 7 m | Static scenes | 6.5 mm | >500 cycles | $69.00 | View |
| LS-CBL-0232 | 7 m | Static scenes | 7 mm | >750 cycles | $69.00 | View |
| LS-CBL-0229 | 10 m | Static scenes | 6.5 mm | >500 cycles | $89.00 | View |
| LS-CBL-0225 | 10 m | Static scenes | 6.5 mm | >500 cycles | $89.00 | View |
| LS-CBL-0233 | 10 m | Static scenes | 7 mm | >750 cycles | $89.00 | View |
| LS-CBL-0234 | 15 m | Static scenes | 7 mm | >750 cycles | $119.00 | View |
| LS-CBL-0235 | 20 m | Static scenes | 7 mm | >750 cycles | $149.00 | View |
