Cables

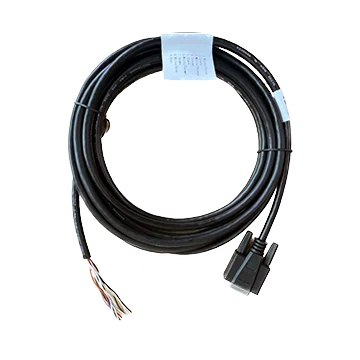

Frame Grabber I/O Cable, DB9F to Open, 3 m (LS-CBL-0222)
Model LS-CBL-0222
- Length3 m
- End ADB9F
- End BOpen
- Diameter6.5 mm
- Max. voltage30 VDC
- JacketPVC
$49.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Frame Grabber I/O Cable, DB9F to Open, 3 m. The Frame Grabber Standard I/O Cable (DB9F to Open) can be used for I/O signal wiring of the frame grabber with DB9M interface. The cable is equipped with shielding protection, and is available in a variety of lengths.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CBL-0222 |
|---|---|
| Jacket | PVC |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | DB9F |
|---|---|
| End B connector | Open |
| Cable diameter | 6.5 mm |
| Cable mechanical | UL20276 (26AWG*4P+26AWG*1C+AB) |
| Cable color | Black |
| Connector durability | >500 cycles |
| Applicable scenario | Static scene |
Environment and compliance
| Working temperature | -20°C ~ 80°C |
|---|---|
| Certification | RoHS, UL |
Electrical
| Max. voltage | 30 VDC |
|---|
Mechanical
| Length | 3 m |
|---|---|
| Shipping weight (estimated) | 0.31 kg |
