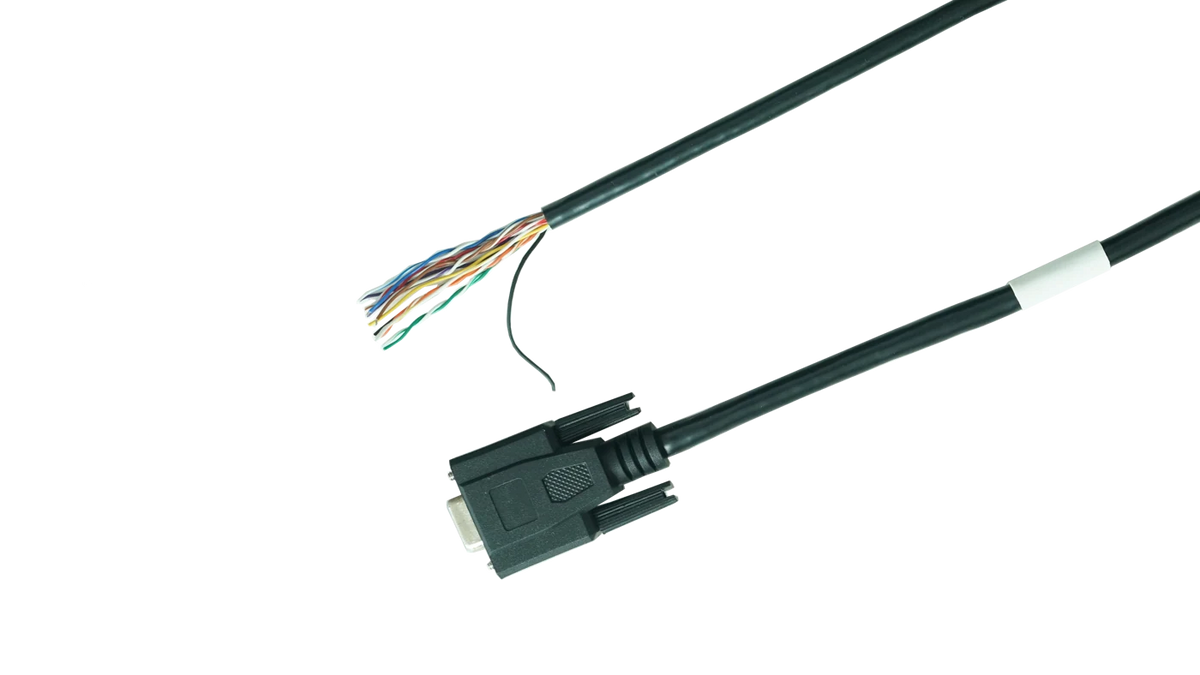

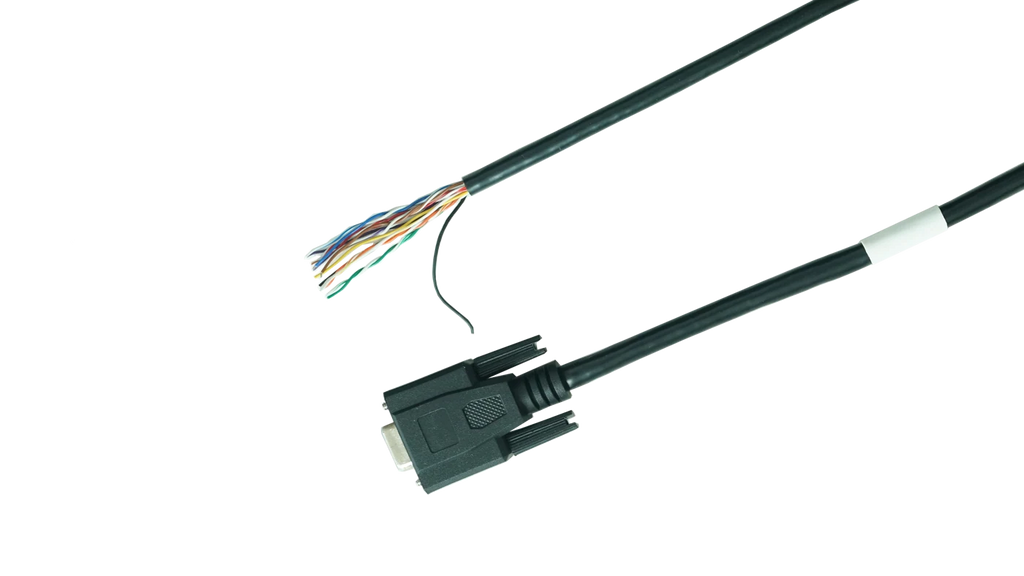

Frame Grabber I/O Cable, DB15F, Female to Open, 3 m (LS-CBL-0226)
Model LS-CBL-0226
- Length3 m
- End ADB15F, Female
- End BOpen
- Diameter6.5 mm
- Max. voltage30 VDC
- JacketPVC
$49.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Frame Grabber I/O Cable, DB15F, Female to Open, 3 m. Standard frame grabber I/O trigger cable (DB15F to open leads) for I/O trigger signal wiring on frame grabbers with DB15M connectors; shielded, available in multiple lengths
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CBL-0226 |
|---|---|
| Jacket | PVC |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | DB15F, Female |
|---|---|
| End B connector | Open |
| Cable diameter | 6.5 mm |
| Cable mechanical | UL20276 (26AWG*7P+26AWG*1C+AB) |
| Cable color | Black |
| Connector durability | >500 cycles |
| Applicable scenario | Static scenes |
Environment and compliance
| Working temperature | -20°C ~ 80°C |
|---|---|
| Certification | RoHS, UL |
Electrical
| Max. voltage | 30 VDC |
|---|
Mechanical
| Length | 3 m |
|---|---|
| Shipping weight (estimated) | 0.31 kg |
