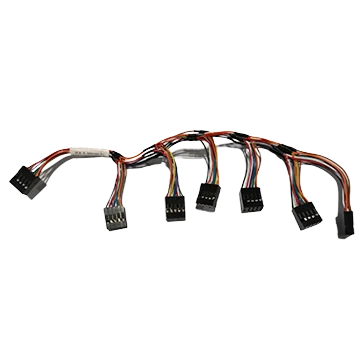

Frame Grabber I/O Cable, 0.6 m (LS-CBL-0236)
Model LS-CBL-0236
- Length0.6 m
- Interface9-pin Female Header*7
- Diameter8.5 mm
- Max. voltage30 VDC
- JacketPVC
$39.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Frame Grabber I/O Cable, 0.6 m. The Frame Grabber Internal I/O Casecade Cable (Flexible) can be used for I/O signal wiring of multiple frame grabbers, and can support up to seven interfaces.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CBL-0236 |
|---|---|
| Jacket | PVC |
| Packaging | Individual package |
Interfaces and I/O
| Interface | 9-pin Female Header*7 |
|---|---|
| Cable diameter | 8.5 mm |
| Cable mechanical | UL1571+28AWG+PVC(70-80P) |
| Cable color | Black |
| Connector durability | >100 cycles |
| Applicable scenario | Static scene |
Environment and compliance
| Working temperature | -20°C ~ 80°C |
|---|---|
| Certification | RoHS |
Electrical
| Max. voltage | 30 VDC |
|---|
Mechanical
| Length | 0.6 m |
|---|---|
| Shipping weight (estimated) | 0.31 kg |
Other models in the Frame grabber I/O cables (LS-CBL-S08) series
See all 15 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CBL-0222 | 3 m | $49.00 | Ships in 2-3 weeks | View |
| LS-CBL-0226 | 3 m | $49.00 | Ships in 2-3 weeks | View |
| LS-CBL-0230 | 3 m | $49.00 | Ships in 2-3 weeks | View |
| LS-CBL-0223 | 5 m | $59.00 | Ships in 2-3 weeks | View |
| LS-CBL-0227 | 5 m | $59.00 | Ships in 2-3 weeks | View |
| LS-CBL-0231 | 5 m | $59.00 | Ships in 2-3 weeks | View |
| LS-CBL-0224 | 7 m | $69.00 | Ships in 2-3 weeks | View |
| LS-CBL-0228 | 7 m | $69.00 | Ships in 2-3 weeks | View |
| LS-CBL-0232 | 7 m | $69.00 | Ships in 2-3 weeks | View |
| LS-CBL-0229 | 10 m | $89.00 | Ships in 2-3 weeks | View |
| LS-CBL-0225 | 10 m | $89.00 | Ships in 2-3 weeks | View |
| LS-CBL-0233 | 10 m | $89.00 | Ships in 2-3 weeks | View |
| LS-CBL-0234 | 15 m | $119.00 | Ships in 2-3 weeks | View |
| LS-CBL-0235 | 20 m | $149.00 | Ships in 2-3 weeks | View |
