Cables

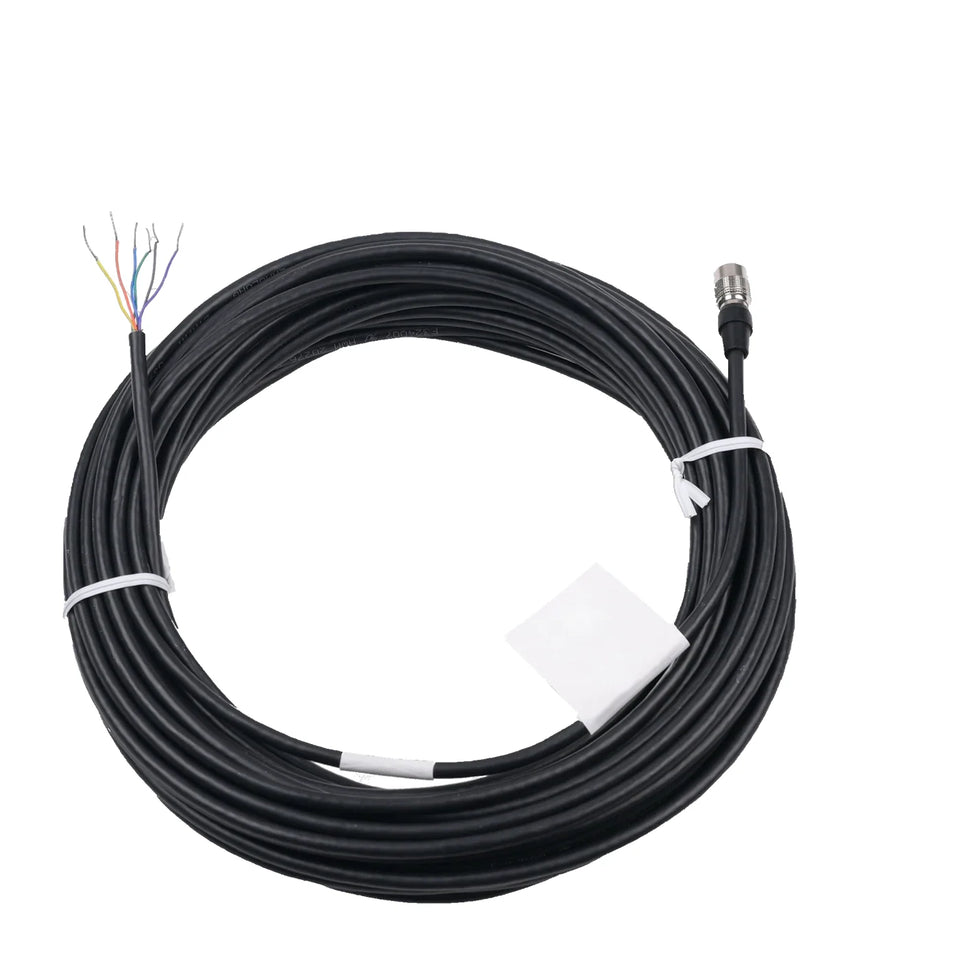

Power and I/O cables (LS-CBL-S11)
- 70 models
- from $39.00
- Series LS-CBL-S11
The Power and I/O cables (LS-CBL-S11) is a range of 70 cables from LumaSpec Vision, from $39.00. It comes in 13 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 1 m, 3 m, 5 m, 5m, 7 m, 7m, 10 m, 10m, 15 m, 15m, 20 m, 30 m, 60 m
- Type
- Power and I/O cables
- Length
- Up to 1 m, 3 m, 4-5 m, 6-8 m, 10 m, 15 m, 20 m, Over 20 m
Features
- The 6-pin P7 Standard Power & I/O Cable can be used to power the camera, provide I/O signal wiring, and is available in a variety of lengths.
- M8 8-pin A-coded standard power & I/O cable for camera power and I/O signal wiring; available in multiple lengths
- M8 8-pin A-coded high-flex power & I/O cable for camera power and I/O signal wiring; available in multiple lengths
- M8 8-pin A-coded ultra-flex power & I/O cable for camera power and I/O signal wiring; available in multiple lengths
- The 6-pin P7 High Flex Power&I/O Cable can be used to power the camera, I/O signal wiring, and is available in a variety of lengths.
- The 6-pin P7 Super Flex Power&I/O Cable can be used to power the camera, I/O signal wiring, and is available in a variety of lengths.
- The 6-pin P7 Standard (Left side) Power&I/O Cable can be used to power the camera, I/O signal wiring, and is available in a variety of lengths.
- The 6-pin P7 High Flex (Left side) Power&I/O Cable can be used to power the camera, I/O signal wiring, and is available in a variety of lengths.
All 70 models in the Power and I/O cables (LS-CBL-S11)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CBL-0280 | 1 m | Static scenes | 5.0 mm | 26#×2P+26#×2C+AB | $39.00 | View |
| LS-CBL-0321 | 1 m | Static scenes | 5.5 mm | 26#*2P+26#*2C+26AWG*2C+AB | $39.00 | View |
| LS-CBL-0297 | 1 m | Static/drag-chain | 6.8 mm | 26#*2P+26#*2C+26AWG*2C+AB | $39.00 | View |
| LS-CBL-0309 | 1 m | Static/drag-chain/robot arm | 6.8 mm | 26#×2P+26#×2C+AB | $39.00 | View |
| LS-CBL-0281 | 3 m | Static scenes | 5.0 mm | 26#×2P+26#×2C+AB | $49.00 | View |
| LS-CBL-0269 | 3 m | Tank chain | 5.5 mm | 2P*28AWG+2C*23AWG+AB | $49.00 | View |
| LS-CBL-0275 | 3 m | Tank chain, Robot arm | 5.5 mm | 2P*28AWG+2C*23AWG+AB | $49.00 | View |
| LS-CBL-0266 | 3 m | Static scenes | 5.0 mm | 26#×2P+26#×2C+AB | $49.00 | View |
| LS-CBL-0263 | 3 m | Tank chain | 5.5 mm | 2P*28AWG+2C*23AWG+AB | $49.00 | View |
| LS-CBL-0288 | 3 m | Drag chains | 7.0 mm | 5P*26AWG+1P*24AWG+F+B | $49.00 | View |
| LS-CBL-0322 | 3 m | Static scenes | 5.5 mm | 26#*2P+26#*2C+26AWG*2C+AB | $49.00 | View |
| LS-CBL-0298 | 3 m | Static/drag-chain | 6.8 mm | 26#*2P+26#*2C+26AWG*2C+AB | $49.00 | View |
| LS-CBL-0310 | 3 m | Static/drag-chain/robot arm | 6.8 mm | 26#×2P+26#×2C+AB | $49.00 | View |
| LS-CBL-0305 | 3 m | Static/drag-chain, Waterproof | 6.8 mm | 26#*2P+26#*2C+26AWG*2C+AB | $49.00 | View |
| LS-CBL-0317 | 3 m | Static/drag-chain/robot arm, Waterproof | 6.8 mm | 26#*2P+26#*2C+26AWG*2C+AB | $49.00 | View |
| LS-CBL-0329 | 3 m | Static, Waterproof | 5.5 mm | 26#*2P+26#*2C+26AWG*2C+AB | $49.00 | View |
| LS-CBL-0282 | 5 m | Static scenes | 5.0 mm | 26#×2P+26#×2C+AB | $59.00 | View |
| LS-CBL-0270 | 5 m | Tank chain | 5.5 mm | 2P*28AWG+2C*23AWG+AB | $59.00 | View |
| LS-CBL-0276 | 5m | Tank chain, Robot arm | 5.5 mm | 2P*28AWG+2C*23AWG+AB | $59.00 | View |
| LS-CBL-0267 | 5 m | Static scenes | 5.0 mm | 26#×2P+26#×2C+AB | $59.00 | View |
| LS-CBL-0264 | 5 m | Tank chain | 5.5 mm | 2P*28AWG+2C*23AWG+AB | $59.00 | View |
| LS-CBL-0293 | 5 m | Static scene | 7.0 mm | 5P*26AWG+1P*24AWG+B | $59.00 | View |
| LS-CBL-0289 | 5 m | Drag chains | 7.0 mm | 5P*26AWG+1P*24AWG+F+B | $59.00 | View |
| LS-CBL-0323 | 5 m | Static scenes | 5.5 mm | 26#*2P+26#*2C+26AWG*2C+AB | $59.00 | View |
| LS-CBL-0299 | 5 m | Static/drag-chain | 6.8 mm | 26#*2P+26#*2C+26AWG*2C+AB | $59.00 | View |
| LS-CBL-0311 | 5 m | Static/drag-chain/robot arm | 6.8 mm | 26#×2P+26#×2C+AB | $59.00 | View |
| LS-CBL-0306 | 5 m | Static/drag-chain, Waterproof | 6.8 mm | 26#*2P+26#*2C+26AWG*2C+AB | $59.00 | View |
| LS-CBL-0318 | 5 m | Static/drag-chain/robot arm, Waterproof | 6.8 mm | 26#*2P+26#*2C+26AWG*2C+AB | $59.00 | View |
| LS-CBL-0330 | 5 m | Static, Waterproof | 5.5 mm | 26#*2P+26#*2C+26AWG*2C+AB | $59.00 | View |
| LS-CBL-0283 | 7 m | Static scenes | 5.0 mm | 26#×2P+26#×2C+AB | $69.00 | View |
| LS-CBL-0271 | 7 m | Tank chain | 5.5 mm | 2P*28AWG+2C*23AWG+AB | $69.00 | View |
| LS-CBL-0277 | 7m | Tank chain, Robot arm | 5.5 mm | 2P*28AWG+2C*23AWG+AB | $69.00 | View |
| LS-CBL-0294 | 7 m | Static scene | 7.0 mm | 5P*26AWG+1P*24AWG+B | $69.00 | View |
| LS-CBL-0290 | 7 m | Drag chains | 7.0 mm | 5P*26AWG+1P*24AWG+F+B | $69.00 | View |
| LS-CBL-0324 | 7 m | Static scenes | 5.5 mm | 26#*2P+26#*2C+26AWG*2C+AB | $69.00 | View |
| LS-CBL-0300 | 7 m | Static/drag-chain | 6.8 mm | 26#*2P+26#*2C+26AWG*2C+AB | $69.00 | View |
| LS-CBL-0312 | 7 m | Static/drag-chain/robot arm | 6.8 mm | 26#×2P+26#×2C+AB | $69.00 | View |
| LS-CBL-0284 | 10 m | Static scenes | 5.0 mm | 26#×2P+26#×2C+AB | $89.00 | View |
| LS-CBL-0272 | 10 m | Tank chain | 5.5 mm | 2P*28AWG+2C*23AWG+AB | $89.00 | View |
| LS-CBL-0278 | 10m | Tank chain, Robot arm | 5.5 mm | 2P*28AWG+2C*23AWG+AB | $89.00 | View |
| LS-CBL-0295 | 10 m | Static scene | 7.0 mm | 5P*26AWG+1P*24AWG+B | $89.00 | View |
| LS-CBL-0291 | 10 m | Drag chains | 7.0 mm | 5P*26AWG+1P*24AWG+F+B | $89.00 | View |
| LS-CBL-0325 | 10 m | Static scenes | 5.5 mm | 26#*2P+26#*2C+26AWG*2C+AB | $89.00 | View |
| LS-CBL-0301 | 10 m | Static/drag-chain | 6.8 mm | 26#*2P+26#*2C+26AWG*2C+AB | $89.00 | View |
| LS-CBL-0313 | 10 m | Static/drag-chain/robot arm | 6.8 mm | 26#×2P+26#×2C+AB | $89.00 | View |
| LS-CBL-0307 | 10 m | Static/drag-chain, Waterproof | 6.8 mm | 26#*2P+26#*2C+26AWG*2C+AB | $89.00 | View |
| LS-CBL-0319 | 10 m | Static/drag-chain/robot arm, Waterproof | 6.8 mm | 26#*2P+26#*2C+26AWG*2C+AB | $89.00 | View |
| LS-CBL-0331 | 10 m | Static, Waterproof | 5.5 mm | 26#*2P+26#*2C+26AWG*2C+AB | $89.00 | View |
| LS-CBL-0292 | 3 m | Static scene | 7.0 mm | 5P*26AWG+1P*24AWG+B | $109.00 | View |
| LS-CBL-0285 | 15 m | Static scenes | 5.0 mm | 26#×2P+26#×2C+AB | $119.00 | View |
| LS-CBL-0273 | 15 m | Tank chain | 5.5 mm | 2P*28AWG+2C*23AWG+AB | $119.00 | View |
| LS-CBL-0279 | 15m | Tank chain, Robot arm | 5.5 mm | 2P*28AWG+2C*23AWG+AB | $119.00 | View |
| LS-CBL-0268 | 15 m | Static scenes | 5.0 mm | 26#×2P+26#×2C+AB | $119.00 | View |
| LS-CBL-0265 | 15 m | Tank chain | 5.5 mm | 2P*28AWG+2C*23AWG+AB | $119.00 | View |
| LS-CBL-0326 | 15 m | Static scenes | 5.5 mm | 26#*2P+26#*2C+26AWG*2C+AB | $119.00 | View |
| LS-CBL-0302 | 15 m | Static/drag-chain | 6.8 mm | 26#*2P+26#*2C+26AWG*2C+AB | $119.00 | View |
| LS-CBL-0314 | 15 m | Static/drag-chain/robot arm | 6.8 mm | 26#×2P+26#×2C+AB | $119.00 | View |
| LS-CBL-0308 | 15 m | Static/drag-chain, Waterproof | 6.8 mm | 26#*2P+26#*2C+26AWG*2C+AB | $119.00 | View |
| LS-CBL-0320 | 15 m | Static/drag-chain/robot arm, Waterproof | 6.8 mm | 26#*2P+26#*2C+26AWG*2C+AB | $119.00 | View |
| LS-CBL-0332 | 15 m | Static, Waterproof | 5.5 mm | 26#*2P+26#*2C+26AWG*2C+AB | $119.00 | View |
| LS-CBL-0296 | 20 m | Static scene | 7.0 mm | 5P*26AWG+1P*24AWG+B | $149.00 | View |
| LS-CBL-0327 | 20 m | Static scenes | 5.5 mm | 26#*2P+26#*2C+26AWG*2C+AB | $149.00 | View |
| LS-CBL-0303 | 20 m | Static/drag-chain | 6.8 mm | 26#*2P+26#*2C+26AWG*2C+AB | $149.00 | View |
| LS-CBL-0315 | 20 m | Static/drag-chain/robot arm | 6.8 mm | 26#×2P+26#×2C+AB | $149.00 | View |
| LS-CBL-0286 | 30 m | Static scenes | 5.0 mm | 26#×2P+26#×2C+AB | $209.00 | View |
| LS-CBL-0274 | 30 m | Tank chain | 5.5 mm | 2P*28AWG+2C*23AWG+AB | $209.00 | View |
| LS-CBL-0328 | 30 m | Static scenes | 5.5 mm | 26#*2P+26#*2C+26AWG*2C+AB | $209.00 | View |
| LS-CBL-0304 | 30 m | Static/drag-chain | 6.8 mm | 26#*2P+26#*2C+26AWG*2C+AB | $209.00 | View |
| LS-CBL-0316 | 30 m | Static/drag-chain/robot arm | 6.8 mm | 26#×2P+26#×2C+AB | $209.00 | View |
| LS-CBL-0287 | 60 m | Static scenes | 5.0 mm | 26#×2P+26#×2C+AB | $389.00 | View |
