Cables

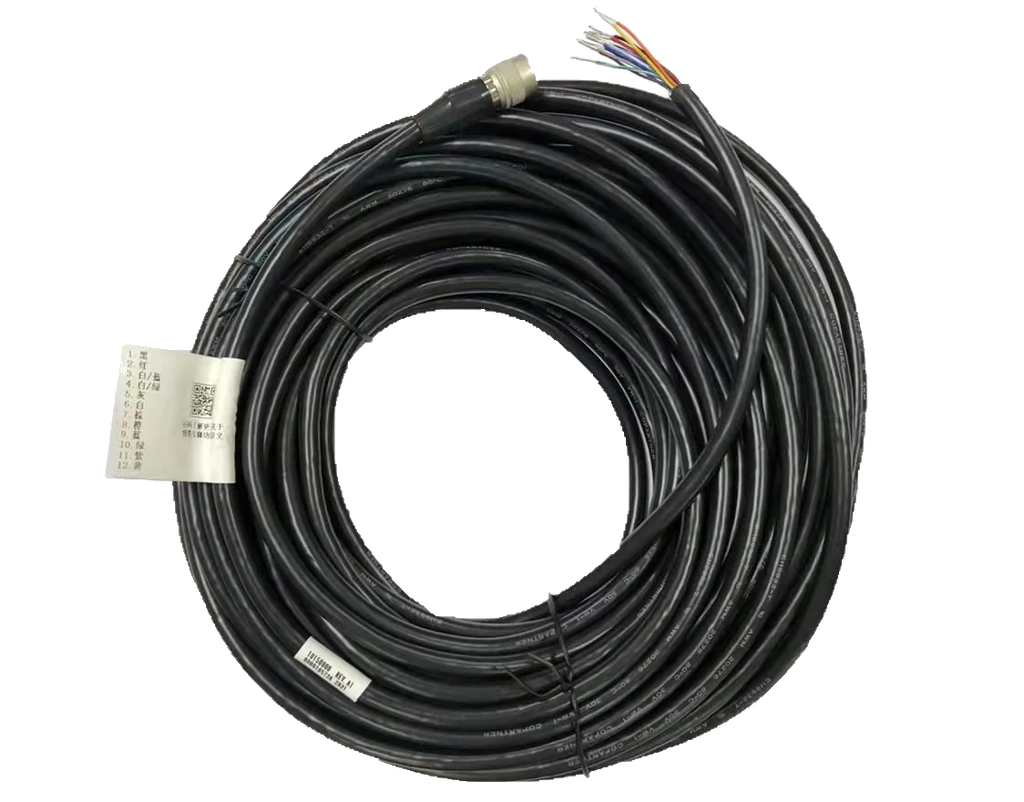

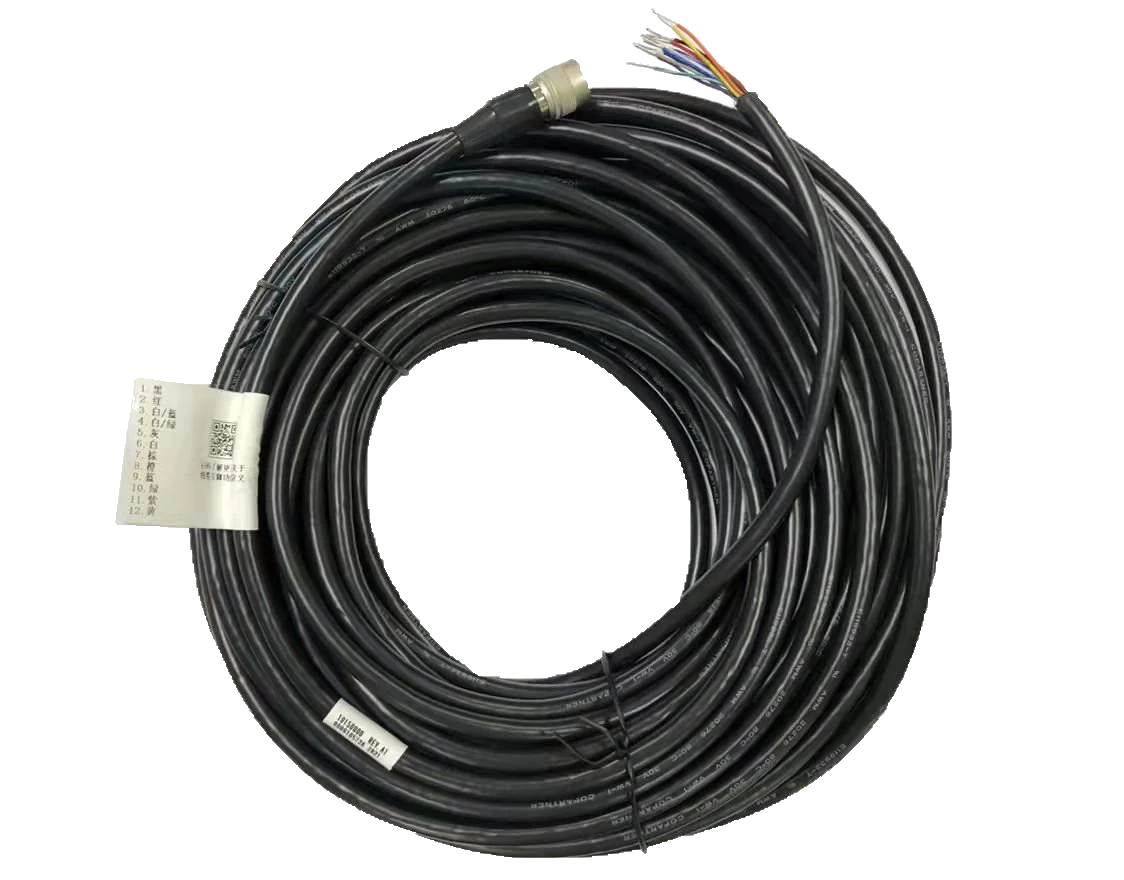

Camera Power and I/O Cable, P10 12-pin, Female to Open, 7 m (LS-CBL-0294)
Model LS-CBL-0294
- Length7 m
- End AP10 12-pin, Female
- End BOpen
- Diameter7.0 mm
- Max. voltage30 VDC
- JacketPVC
$69.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Camera Power and I/O Cable, P10 12-pin, Female to Open, 7 m. The 12-pin P10 Standard Power&I/O Cable can be used to power the camera, I/O signal wiring, and is available in a variety of lengths.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CBL-0294 |
|---|---|
| Jacket | PVC |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | P10 12-pin, Female |
|---|---|
| End B connector | Open |
| Cable diameter | 7.0 mm |
| Cable mechanical | 5P*26AWG+1P*24AWG+B |
| Cable color | Black |
| Connector durability | ≥ 750 cycles |
| Applicable scenario | Static scene |
Environment and compliance
| Working temperature | -20°C~75°C |
|---|---|
| Certification | RoHS2.0, UL |
Electrical
| Max. voltage | 30 VDC |
|---|
Mechanical
| Length | 7 m |
|---|---|
| Min. bending radius | 84 mm |
| Shipping weight (estimated) | 0.31 kg |
