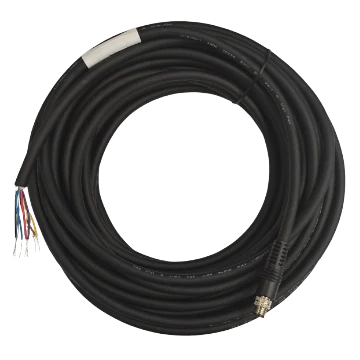

Camera Power and I/O Cable, M8 8-pin connector, Male to Open end (8-core), 10 m, drag-chain use (LS-CBL-0307)
Model LS-CBL-0307
- Length10 m
- End AM8 8-pin connector, Male
- End BOpen end (8-core)
- Diameter6.8 mm
- Max. voltage30 VDC
- JacketPVC
$89.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Camera Power and I/O Cable, M8 8-pin connector, Male to Open end (8-core), 10 m. M8 8-pin A-coded waterproof high-flex power & I/O cable for camera power and I/O signal wiring; available in multiple lengths
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CBL-0307 |
|---|---|
| Jacket | PVC |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | M8 8-pin connector, Male |
|---|---|
| End B connector | Open end (8-core) |
| Cable diameter | 6.8 mm |
| Cable mechanical | 26#*2P+26#*2C+26AWG*2C+AB |
| Cable color | Black |
| Connector durability | ≥ 750 cycles |
| Applicable scenario | Static/drag-chain, Waterproof |
Environment and compliance
| Ingress protection | IP67 (with camera mounted) |
|---|---|
| Working temperature | -20°C~ 75°C |
| Certification | RoHS2.0, UL |
Electrical
| Max. voltage | 30 VDC |
|---|
Mechanical
| Length | 10 m |
|---|---|
| Min. bending radius | 81.6 mm |
| Max. U-type bending cycles | 5 million times |
| Shipping weight (estimated) | 0.31 kg |
