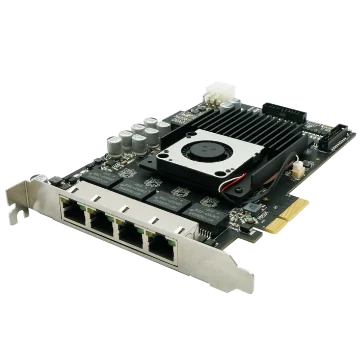

Hikrobot PCIE-GE1004-1G 4-channel GigE frame grabber
Model PCIE-GE1004-1G
Hikrobot PCIE-GE1004-1G 4-channel GigE frame grabber. Supports GigE Vision, up to 1 Gbps per port PoE support, up to 15 W per channel
Features
- Supports GigE Vision, up to 1 Gbps per port
- PoE support, up to 15 W per channel
- Bus and channel indicators report frame grabber status in real time
- Rich I/O interface with multiple integrated inputs and outputs
- SDK provided for secondary development
- Compliant with the GenICam standard
Specifications
| Model | PCIE-GE1004-1G |
|---|---|
| Brand | Hikrobot |
| On-board memory | 1 GB DDR3-RAM |
| Interconnect | PCI-E gen2 × 4 |
| Delivery bandwidth | 1720 MB/s (max. transmission bandwidth); 1600 MB/s (sustained transmission bandwidth) |
| Bus indicator | 1 |
| Standard | GigE Vision |
| Interface | 4 × RJ45 |
| Power output | PoE, Up to 15 W per channel |
| Camera type supported | GigE industrial camera |
| Camera quantity supported | 4 at most |
| Camera connection speed | 1 Gbps |
| Stream | 4 |
| Stream indicator | 4 pairs |
| Pixel format | Mono 8/10/10p/12/12p; Bayer 8/10/10p/12/12p; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8 |
| I/O Type | Provides 24 I/O connectors, including opto-isolated input × 4 (4.5 VDC to 28 VDC), opto-isolated output × 4 (4.5 VDC to 28 VDC), RX422 input × 4, TX422 output × 4, TTL input × 4, and TTL output × 4 |
| Connector | Female header |
| Power consumption | Typ. 10 W (without PoE) |
| Dimension | 181 mm × 126.3 mm × 21.6 mm |
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Client software | MVS |
| Operating system | Windows 7/10/11, Ubuntu16.04 to 20.04 on Linux |
| Certification | WEEE, RoHS, REACH |
| Shipping weight (estimated) | 0.38 kg |
