Hikrobot MV-GE1004 Quad GigE Frame Grabber
Model MV-GE1004

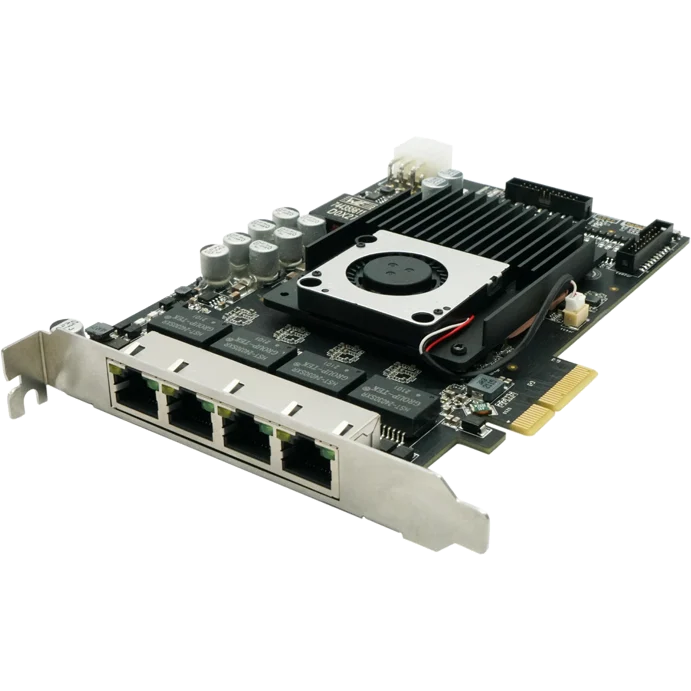

Hikrobot MV-GE1004 Quad GigE Frame Grabber. Supports GigE Vision protocol with each GigE interface accessing up to 1 Gbps data transfer speed. Supports PoE with each channel providing 15 W at most.
Features
- Supports GigE Vision protocol with each GigE interface accessing up to 1 Gbps data transfer speed.
- Supports PoE with each channel providing 15 W at most.
- Various indicators indicate frame grabber status in real time.
- Adopts multiple I/O connectors for input and output.
- Provides SDK for secondary development.
- Complies with Genlcam standard.
Specifications
| Model | MV-GE1004 |
|---|---|
| Brand | Hikrobot |
| On-board memory | 1 GB DDR3-RAM |
| Interconnect | PCI-E gen2 × 4 |
| Delivery bandwidth | 1720 MB/s (max. transmission bandwidth), 1600 MB/s (sustained transmission bandwidth) |
| Indicator | 1 |
| Standard | GigE Vision |
| Interface | RJ45 × 4 |
| Power output | PoE, each channel provides 15 W at most (ATX 6-pin power required for PoE) |
| Camera type supported | GigE industrial camera |
| Camera quantity supported | 4 at most |
| Camera connection speed | 1 Gbps |
| Stream | 4 |
| Stream indicator | 4 pairs |
| Pixel format | Mono 8/10/10p/12/12p; Bayer 8/10/10p/12/12p; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8 |
| I/O Type | Provides 24 I/O connectors, including opto-isolated input × 4 (4.5 VDC to 28 VDC), opto-isolated output × 4 (4.5 VDC to 28 VDC), RX422 input × 4, TX422 output × 4, TTL input × 4, and TTL output × 4 |
| Connector | Female header |
| Power consumption | Typ. 10 W (without PoE) |
| Dimension | 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Client software | MVS |
| Operating system | Windows 7/10/11, Ubuntu 16.04 to 20.04 on Linux |
| Certification | WEEE, RoHS, REACH |
| Shipping weight (estimated) | 0.38 kg |
