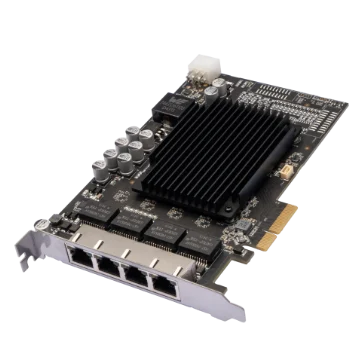

Hikrobot MV-GE1104P 4-port GigE frame grabber, PoE
Model MV-GE1104P
Hikrobot MV-GE1104P 4-port GigE frame grabber, PoE. Supports GigE Vision, up to 1 Gbps per port Up to 4 GigE PoE ports with independent bandwidth
Datasheet (PDF, Chinese) - MV-GE1104PUser manual (PDF, Chinese) - MV-GE1104PCAD: 3D STEP + 2D DXF (ZIP) - MV-GE1104P
Features
- Supports GigE Vision, up to 1 Gbps per port
- Up to 4 GigE PoE ports with independent bandwidth
- Compatible with standard network stack protocols
Specifications
| Model | MV-GE1104P |
|---|---|
| Brand | Hikrobot |
| On-board memory | 512MB DDR3-RAM |
| Interconnect | PCI-E gen2 ×2 |
| Delivery bandwidth | 860 MB/s (peak bandwidth), 800 MB/s (sustained bandwidth) |
| Bus indicator | 3 |
| Standard | GigE Vision |
| Interface | 4 × RJ45 |
| Power output | PoE, Up to 15.4 W per channel (PoE requires ATX power connection) |
| Camera type supported | GigE industrial camera |
| Camera quantity supported | 4 at most |
| Camera connection speed | 1 Gbps |
| Stream | 4 |
| Stream indicator | 4 pairs |
| Jumbo frame | 9.5 KB |
| Power consumption | 4.7 W (excl. PoE) |
| Dimension | 181 mm × 126.3 mm × 21.6 mm |
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Client software | MVS |
| Operating system | Windows 7/10/11, Ubuntu16.04 to 20.04 on Linux |
| Certification | CE, RoHS |
| Shipping weight (estimated) | 0.38 kg |
