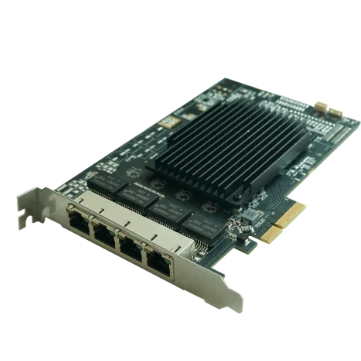

Hikrobot MV-GE1104 Quad GigE Frame Grabber
Model MV-GE1104
Hikrobot MV-GE1104 Quad GigE Frame Grabber. Supports GigE Vision, up to 1 Gbps per port Compatible with standard network stack protocols
Datasheet (PDF, Chinese) - MV-GE1104User manual (PDF, Chinese) - MV-GE1104CAD: 3D STEP + 2D DXF (ZIP) - MV-GE1104
Features
- Supports GigE Vision, up to 1 Gbps per port
- Compatible with standard network stack protocols
Specifications
| Model | MV-GE1104 |
|---|---|
| Brand | Hikrobot |
| On-board memory | 512MB DDR3-RAM |
| Interconnect | PCI-E gen2 ×4 |
| Delivery bandwidth | 860 MB/s (peak bandwidth), 800 MB/s (sustained bandwidth) |
| Bus indicator | 3 |
| Standard | GigE Vision |
| Interface | 4 × RJ45 |
| Camera type supported | GigE industrial camera |
| Camera quantity supported | 4 at most |
| Camera connection speed | 1 Gbps |
| Stream | 4 |
| Stream indicator | 4 pairs |
| Jumbo frame | 2/4/8 KB |
| Power consumption | 10 W |
| Dimension | 181 mm × 126.3 mm × 21.6 mm |
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Client software | MVS |
| Operating system | Windows 7/10/11, Ubuntu16.04 to 20.04 on Linux |
| Certification | WEEE, RoHS, REACH |
| Shipping weight (estimated) | 0.38 kg |
