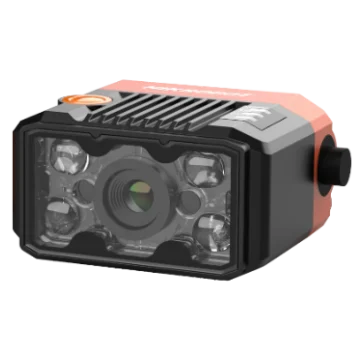

Hikrobot MV-SC2016EC-03S-MED SC2000E medical-dedicated vision sensor, 1.6 MP, Color, 3 mm lens, Manual focus
Model MV-SC2016EC-03S-MED
Hikrobot MV-SC2016EC-03S-MED SC2000E medical-dedicated vision sensor, 1.6 MP, Color, 3 mm lens, Manual focus. Embedded hardware platform for high-speed image processing High-precision algorithms with high read rates, plus tube-cap presence detection, liquid level detection and blood quality inspection
Datasheet (PDF, Chinese) - MV-SC2016EC-03S-MEDUser manual (PDF, Chinese) - MV-SC2016EC-03S-MEDCAD: 3D STEP + 2D DXF (ZIP) - MV-SC2016EC-03S-MED
Features
- Embedded hardware platform for high-speed image processing
- High-precision algorithms with high read rates, plus tube-cap presence detection, liquid level detection and blood quality inspection
- Rich I/O interface supports multiple input and output signals
- Comprehensive status indicators show device status in real time for easy setup and maintenance
- Well-designed light ensures uniform brightness across the illuminated area
- Supports RS-232, TCP, UDP, FTP, Modbus, PROFINET, EtherNet/IP and other communication modes
Specifications
| Model | MV-SC2016EC-03S-MED |
|---|---|
| Brand | Hikrobot |
| Vision tool | Count: blob count, Edge count, Pattern count, Contour count; Presence: circle presence, Line presence, Blob presence, Edge presence, Pattern presence, Contour presence; Positioning: position correction, Unit conversion; Logic: Json format output, Condition judgment, Logic judgment, Character comparison, Variable calculation, Combined judgment, Branch control; Measurement: line-line angle, Diameter measurement, Mean brightness, Contrast measurement, Width measurement, Liquid level measurement, Grayscale area, Line angle, Pitch inspection, Color area, Point-to-point measurement, Color measurement; Recognition: character recognition, Registration classification, Color comparison, Color recognition, Code recognition; Deep learning: object detection, Classification |
| Solution capacity | Supports solution importing and exporting, up to 8 solutions and 40 modules can be stored. |
| Communication protocol | RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1/2.9" |
| Resolution | 1408 × 1024 |
| Max. frame rate | 40 fps |
| Gain | 0 ~ 15 dB |
| Exposure time | 16 μs ~ 1 sec |
| Pixel format | Mono 8, RGB 8 |
| Mono/color | Color |
| Data interface | Fast Ethernet(100Mbit/s) |
| Digital I/O | Ethernet female connector supports Ethernet communication.; 8-pin green terminal provides power, digital I/O, and serial port, including non-isolated input × 1 (Line 2), non-isolated output × 1 (Line 3), configurable non-isolated I/O × 2 (Line 0/1), RS-232 × 1, and external button input × 1 (BUTTON); Output signals support NPN only. |
| Power supply | 12 ~ 24 VDC |
| Max. power consumption | 11 W@24 VDC |
| Lens mount | M8-mount, Manual focus |
| Focal length | 3 mm |
| Light source | White LED lamp |
| Lens cap | Fully polarized lens cover |
| Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (STS) |
| Dimension | 46 mm × 38 mm × 25 mm |
| Weight | Approx. 160 g (0.4 lb.) |
| Ingress protection | IP65 |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Meets standard IEC 60068-2-6:2007.; Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z) |
| Shock resistance | Meets standard IEC 60068-2-27:2008.; Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) |
| Client software | SCMVS |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.32 kg |
