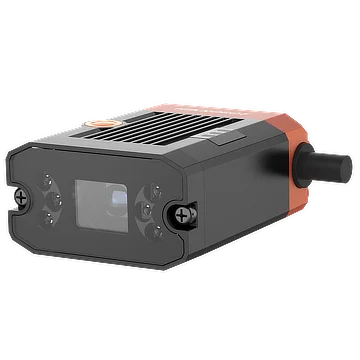

Hikrobot MV-SCB007EC-12S-WBN SCB vision sensor, 1.6 MP, Color, 12 mm lens, Manual focus
Model MV-SCB007EC-12S-WBN
Hikrobot MV-SCB007EC-12S-WBN SCB vision sensor, 1.6 MP, Color, 12 mm lens, Manual focus. Embedded hardware platform for high-speed image processing High-precision positioning, measurement and recognition algorithms for counting, presence checks, measurement and identification
Datasheet (PDF, Chinese) - MV-SCB007EC-12S-WBNUser manual (PDF, Chinese) - MV-SCB007EC-12S-WBNCAD: 3D STEP + 2D DXF (ZIP) - MV-SCB007EC-12S-WBN
Features
- Embedded hardware platform for high-speed image processing
- High-precision positioning, measurement and recognition algorithms for counting, presence checks, measurement and identification
- Rich I/O interface supports multiple input and output signals
- Comprehensive status indicators show device status in real time for easy setup and maintenance
- Well-designed light ensures uniform brightness across the illuminated area
- Supports RS-232, TCP, UDP, FTP, Modbus, PROFINET, EtherNet/IP and other communication modes
Specifications
| Model | MV-SCB007EC-12S-WBN |
|---|---|
| Brand | Hikrobot |
| Vision tool | Count: blob count, Edge count, Pattern count, Contour count; Presence: circle presence, Line presence, Blob presence, Edge presence, Pattern presence, Contour presence, Anomaly judgment; Positioning: position correction; Logic: condition judgment, Logic judgment, Character comparison, Variable calculation, Combined judgment, Data formatting; Measurement: line-line angle, Diameter measurement, Mean brightness, Contrast measurement, Width measurement, Point-line measurement, Grayscale area, Line angle, Pitch inspection, Color area; Recognition: character recognition, Registration classification, Color comparison, Color recognition, Type recognition |
| Solution capacity | Supports solution importing and exporting, up to 8 solutions and 40 modules can be stored. |
| Communication protocol | RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1/2.9" |
| Resolution | 1408 × 1024 |
| Max. frame rate | 60 fps |
| Dynamic range | 71.4 dB |
| SNR | 41 dB |
| Gain | 0 ~ 15 dB |
| Exposure time | 16 μs ~ 1 sec |
| Pixel format | Mono 8, RGB 8 |
| Mono/color | Color |
| Data interface | Fast Ethernet(100Mbit/s) |
| Digital I/O | 17-pin M12 connector provides power, Ethernet, serial port, and digital I/O, including non-isolated input × 1 (Line 2), non-isolated output × 1 (Line 3), configurable non-isolated I/O × 2 (Line 0/1), RS-232 × 1, and external button input × 1 (BUTTON) |
| Power supply | 12 ~ 24 VDC |
| Power consumption | Avg. 6 W @ 24 VDC; Max. 22 W @ 24 VDC |
| Lens mount | M12-mount, adjusting focus manually supported |
| Focal length | 12.4 mm |
| Lens cap | Transparent lens cap |
| Light source | White LED lamp |
| Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (STS) |
| Dimension | 46 mm × 57.6 mm × 25 mm |
| Weight | Approx. 220 g (0.5 lb.) |
| Ingress protection | IP65 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Meets standard IEC 60068-2-6:2007.; Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z) |
| Shock resistance | Meets standard IEC 60068-2-27:2008.; Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) |
| Client software | SCMVS |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.41 kg |
