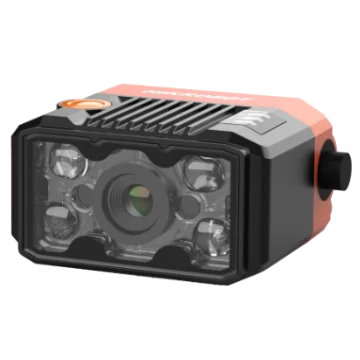

Hikrobot MV-SC2016EM-06S-WBN-S SC2000E vision sensor, Mini, 1.6 MP, Mono, 6 mm lens, Manual focus, Pigtail with flying leads
Model MV-SC2016EM-06S-WBN-S
Hikrobot MV-SC2016EM-06S-WBN-S SC2000E vision sensor, Mini, 1.6 MP, Mono, 6 mm lens, Manual focus, Pigtail with flying leads. Embedded hardware platform for high-speed image processing High-precision positioning and measurement algorithms for counting, presence checks and measurement
Datasheet (PDF, Chinese) - MV-SC2016EM-06S-WBN-SUser manual (PDF, Chinese) - MV-SC2016EM-06S-WBN-SCAD: 3D STEP + 2D DXF (ZIP) - MV-SC2016EM-06S-WBN-S
Features
- Embedded hardware platform for high-speed image processing
- High-precision positioning and measurement algorithms for counting, presence checks and measurement
- Rich I/O interface supports multiple input and output signals
- Comprehensive status indicators show device status in real time for easy setup and maintenance
- Well-designed light ensures uniform brightness across the illuminated area
- Supports RS-232, TCP, UDP, FTP, Modbus, PROFINET, EtherNet/IP and other communication modes
Specifications
| Model | MV-SC2016EM-06S-WBN-S |
|---|---|
| Brand | Hikrobot |
| Vision tool | Measurement: P2P measurement, P2L measurement, contrast measurement, greyscale size, edge width measurement, width measurement, brightness average value, L2L angle, diameter measurement, and line angle; Existence: Anomaly judge, spot existence, edge existence, contour existence, pattern existence, circle existence, and line existence; Count: Spot count, edge count, contour count, and pattern count; Recognition: Category recognition, classification registration, and OCR; Logic: Calculator, logic judge, condition judge, combination judge, format output, If module, and character comparison; Location: Fixture |
| Solution capacity | Supports solution importing and exporting, up to 8 solutions and 40 modules can be stored. |
| Communication protocol | RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1/2.9" |
| Resolution | 1408 × 1024 |
| Max. frame rate | 60 fps |
| Gain | 0 dB ~ 15 dB |
| Exposure time | 16 μs~1 sec |
| Pixel format | Mono 8 |
| Mono/color | Mono |
| Data interface | Fast Ethernet(100Mbit/s) |
| Digital I/O | Female Ethernet connector for Ethernet communication; 8-pin green terminal block provides power, Digital I/O, Serial port function: 1 non-isolated input (LINE2), 1 non-isolated output (LINE3), 2 bidirectional configurable non-isolated I/O (LINE0/1), 1× RS-232, 1 external button input (BUTTON); Output signals: NPN only |
| Power supply | 12 VDC ~ 24 VDC |
| Power consumption | Avg. 4 W @ 24 VDC; Max. 11 W @ 24 VDC |
| Lens mount | M10-mount, adjusting focus manually supported |
| Focal length | 6.72 mm |
| Lens cap | Transparent lens cap |
| Light source | White LED lamp × 4 |
| Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (STS) |
| Dimension | 46 mm × 38 mm × 25 mm |
| Weight | Approx. 160 g (0.4 lb.) |
| Ingress protection | IP65 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Meets standard IEC 60068-2-6:2007.; Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z) |
| Shock resistance | Meets standard IEC 60068-2-27:2008.; Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) |
| Client software | SCMVS |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.32 kg |
